Explore MoreMultipurpose Ladders

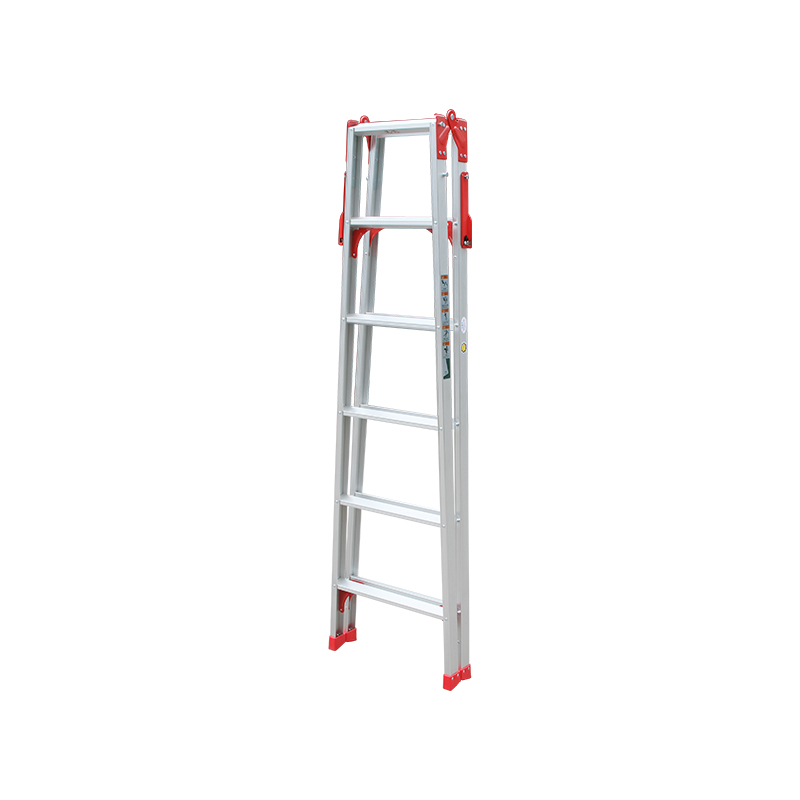

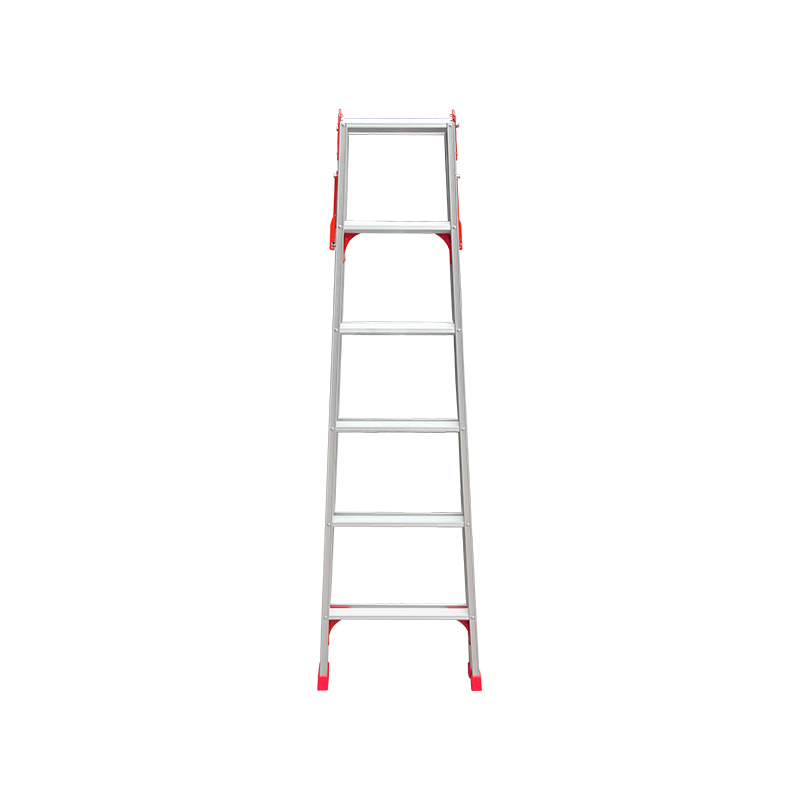

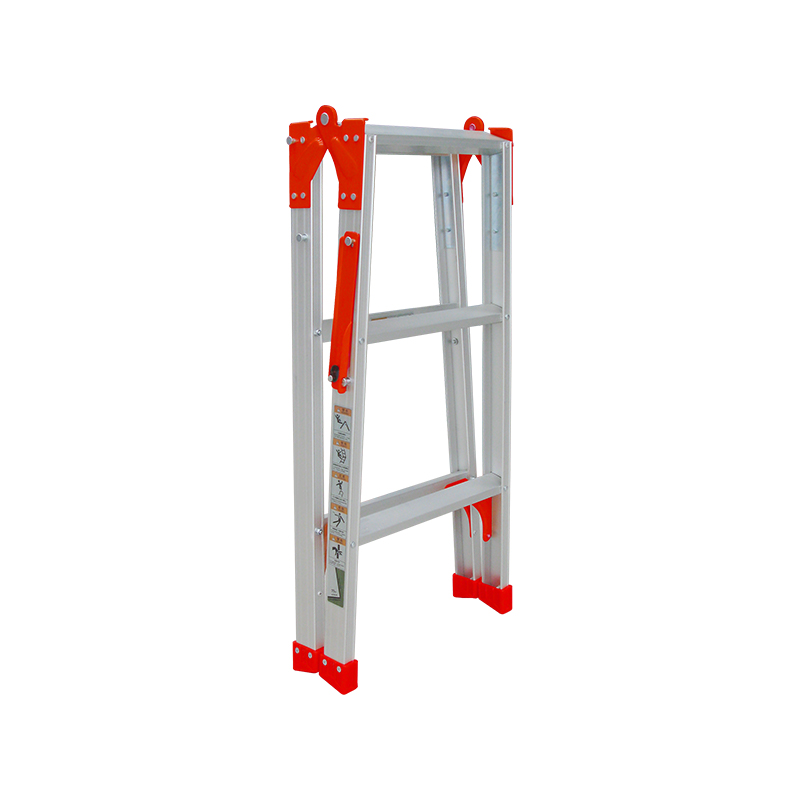

A-frame ladder pattern Light Duty Two-way Ladder

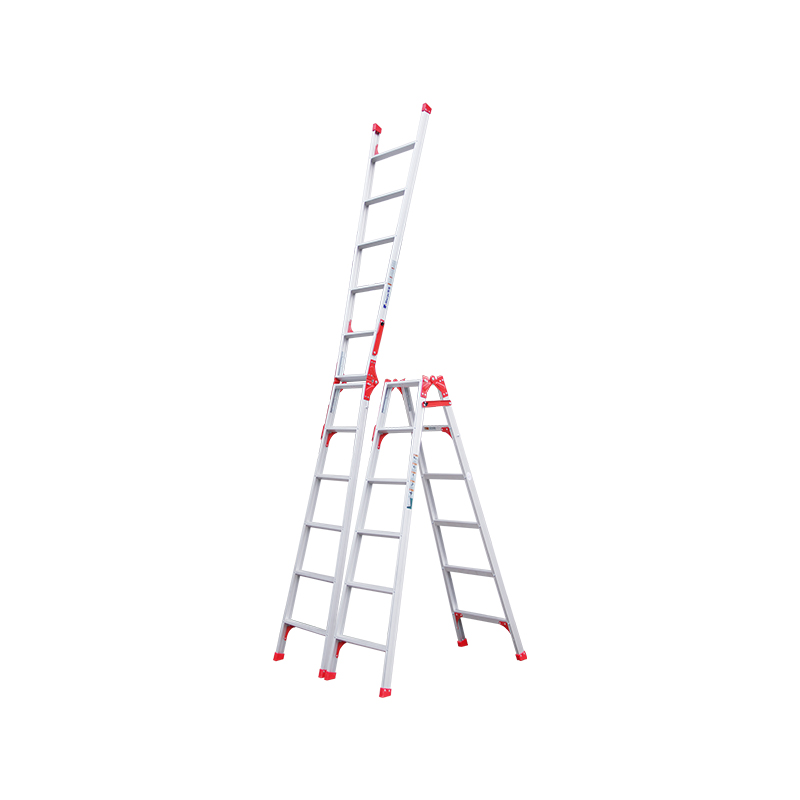

1.2-in-1 Ladder Design

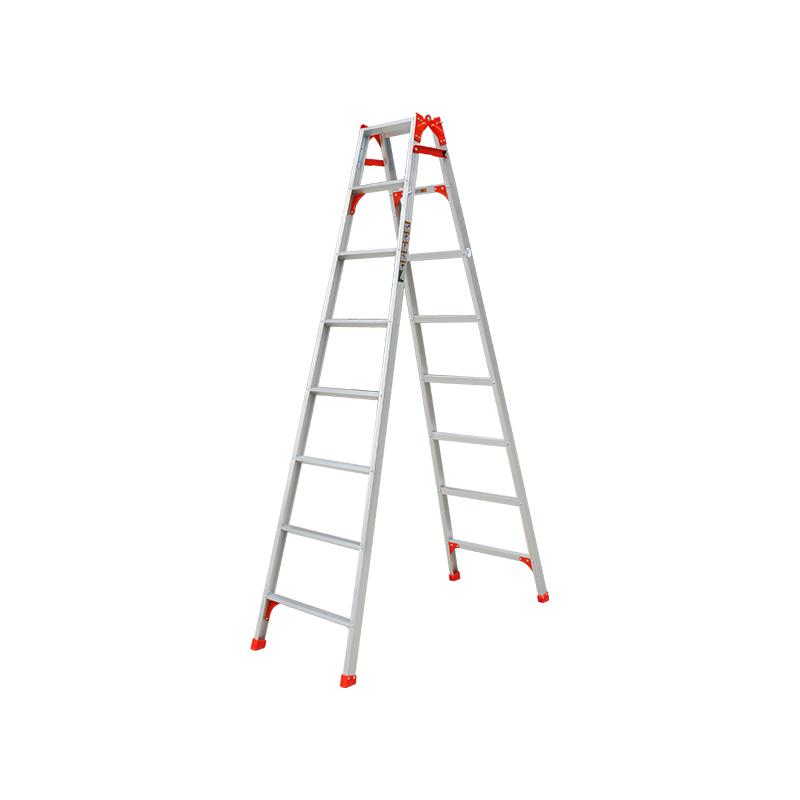

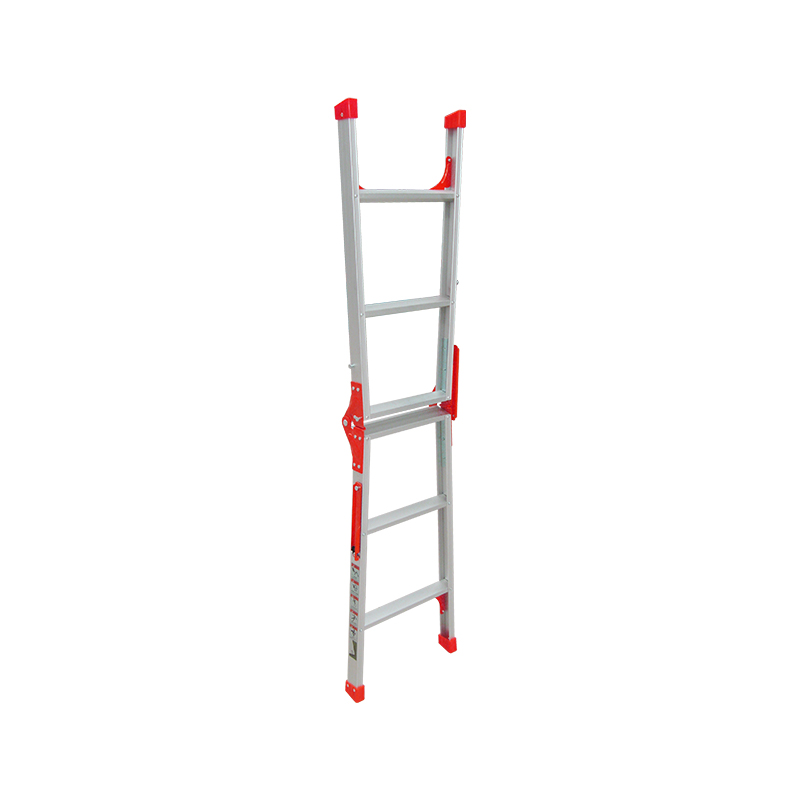

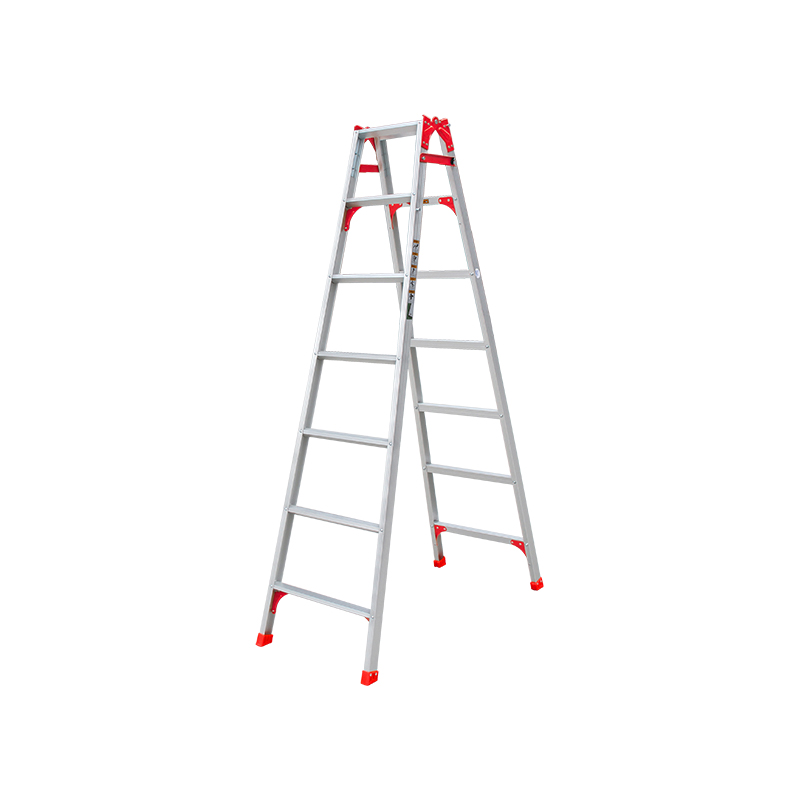

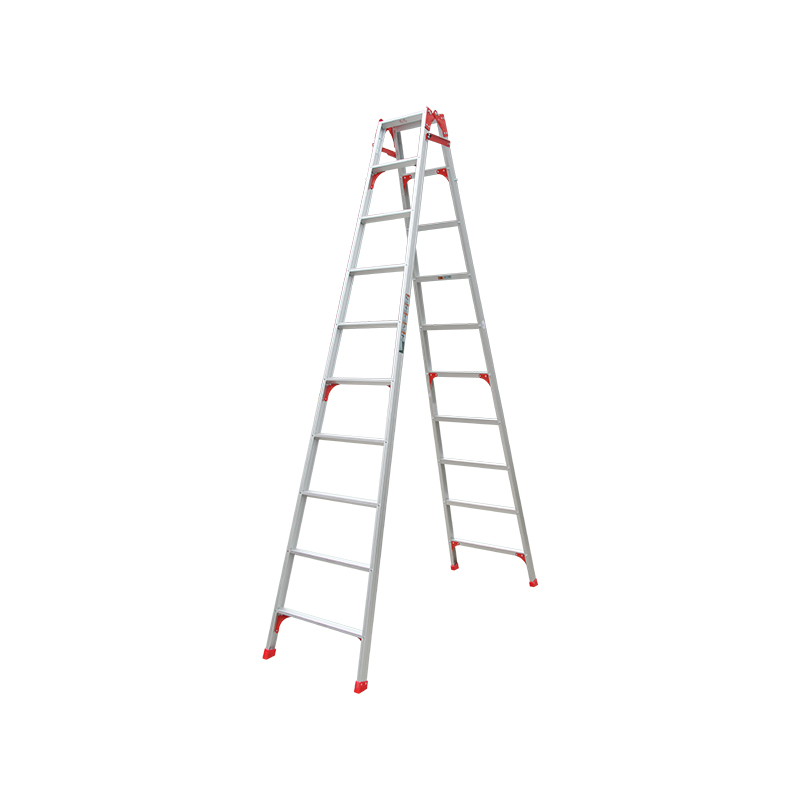

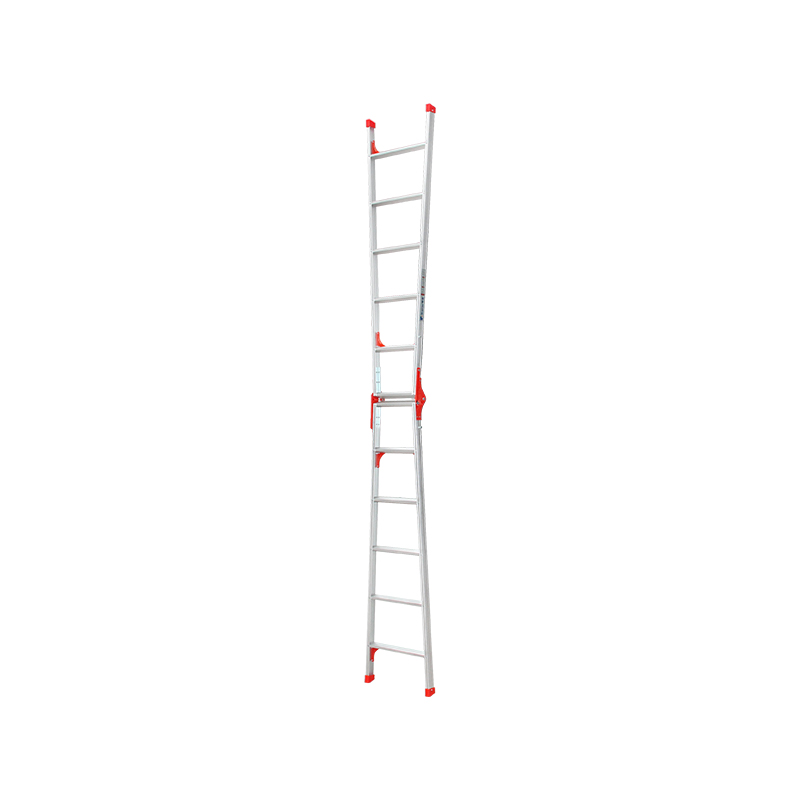

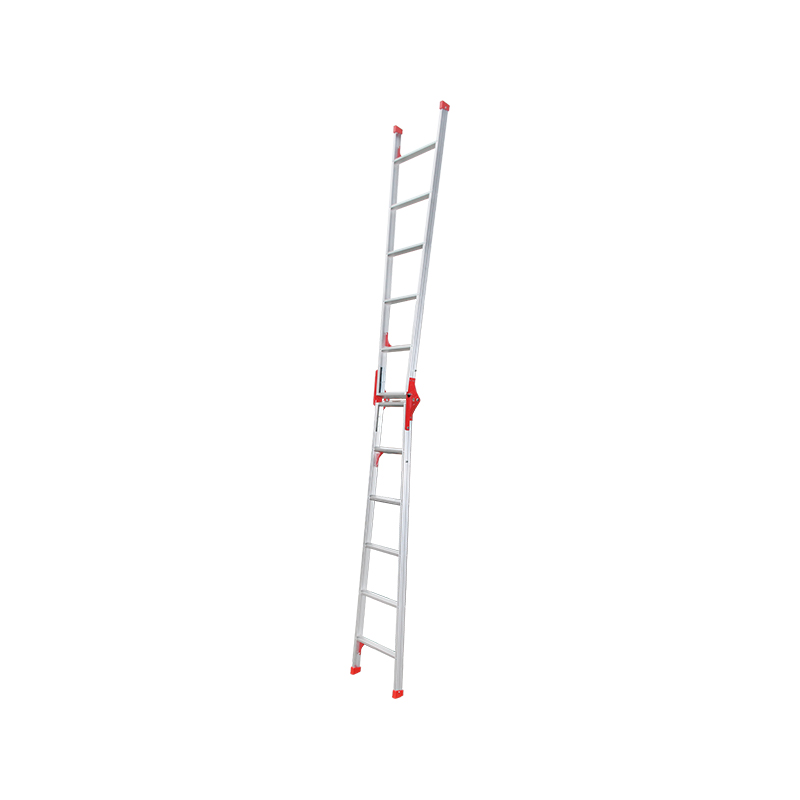

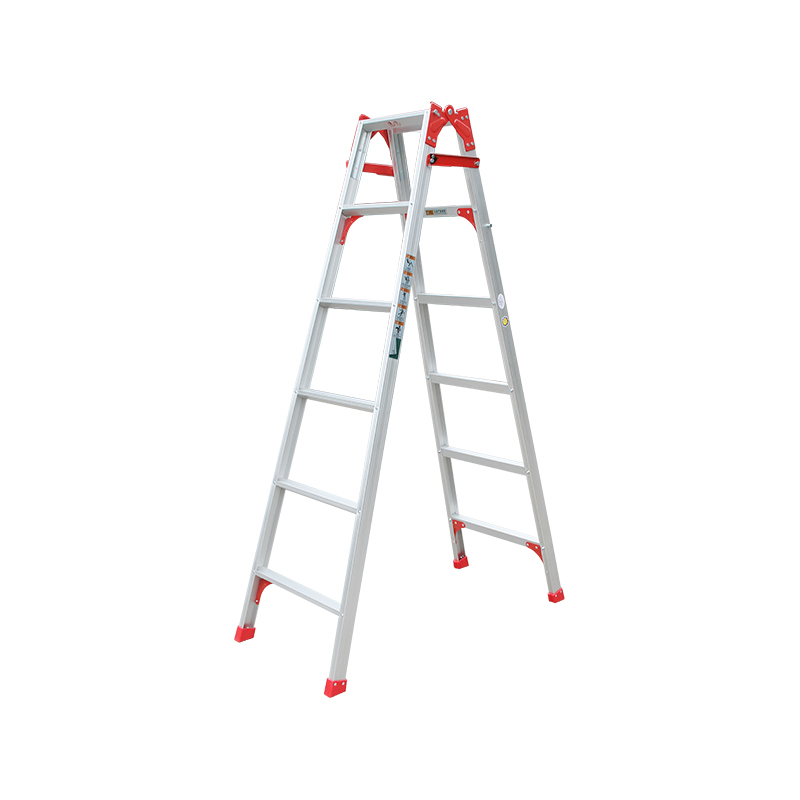

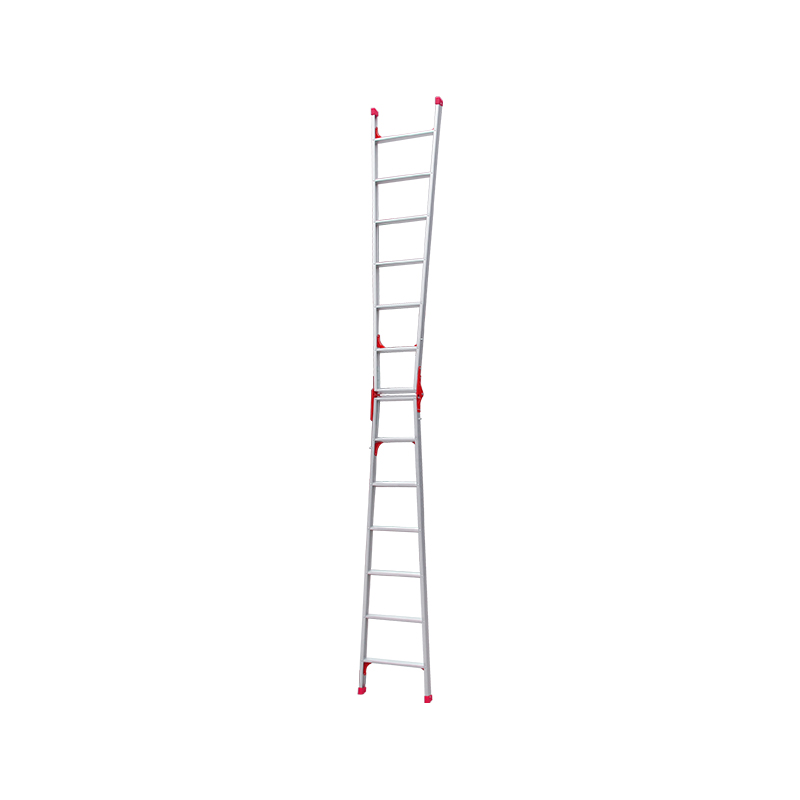

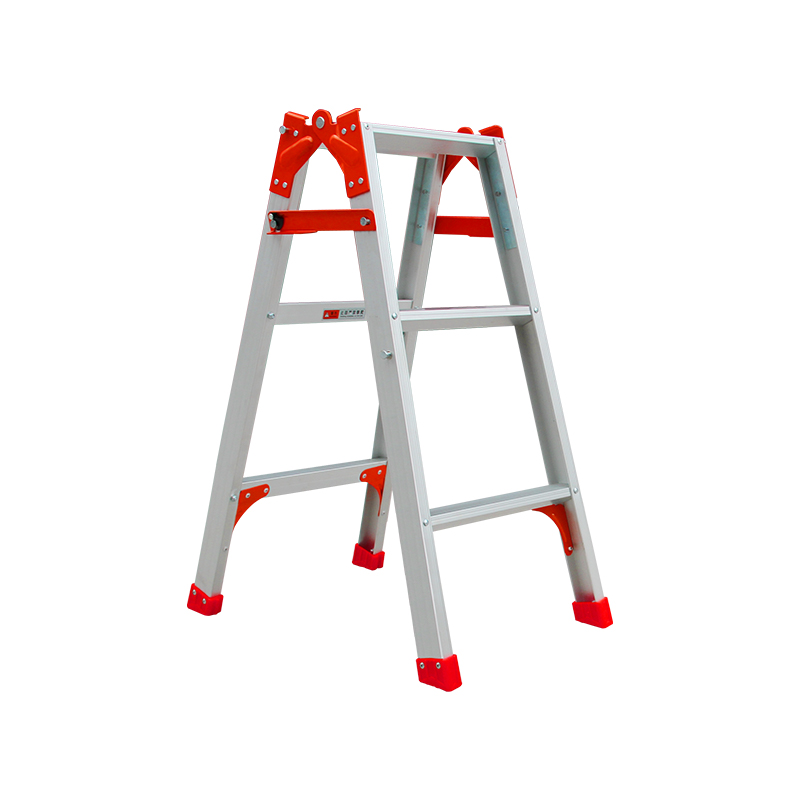

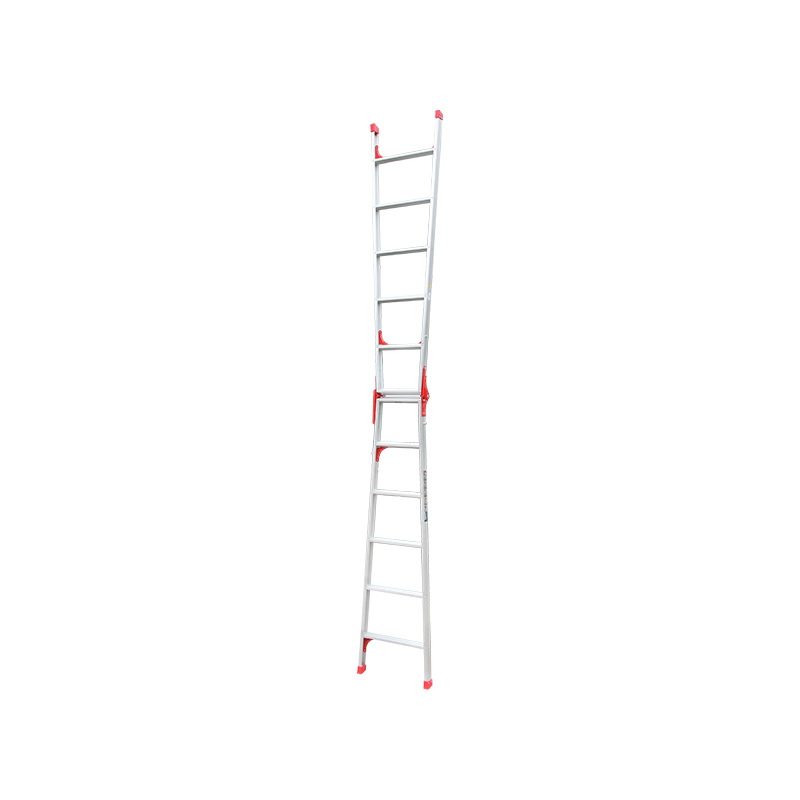

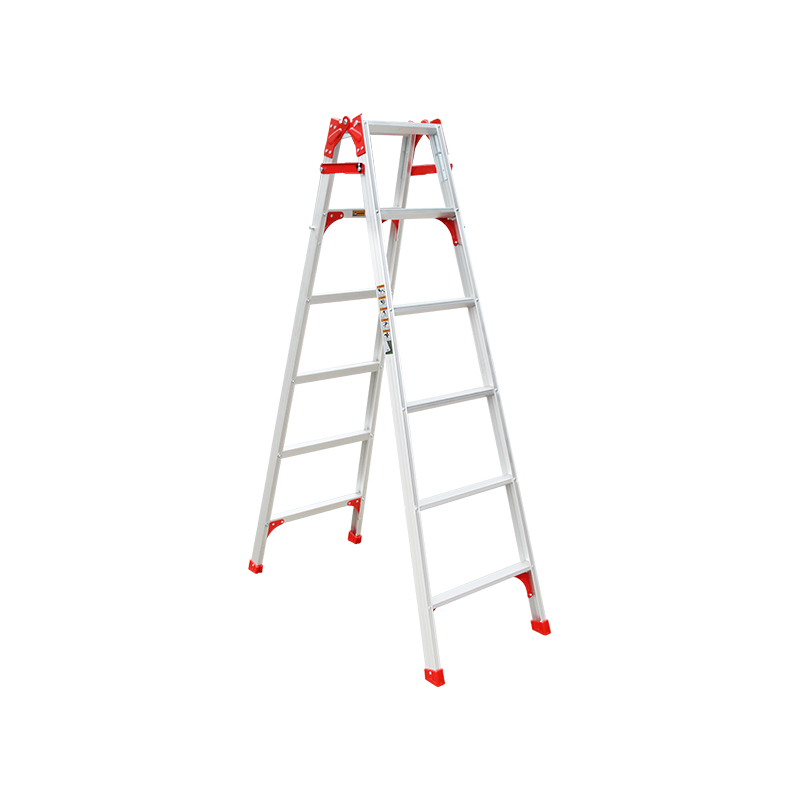

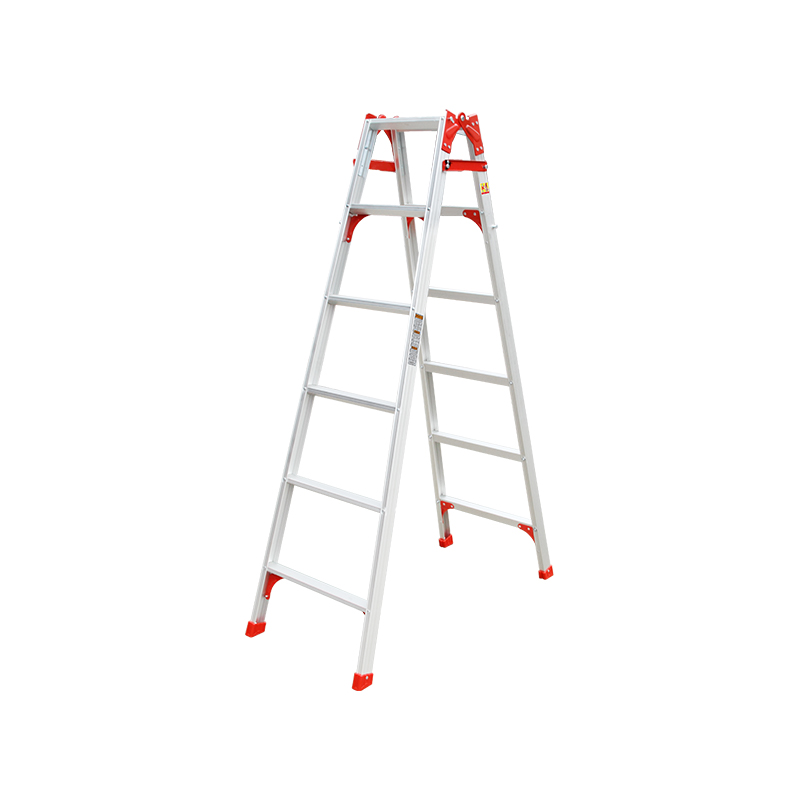

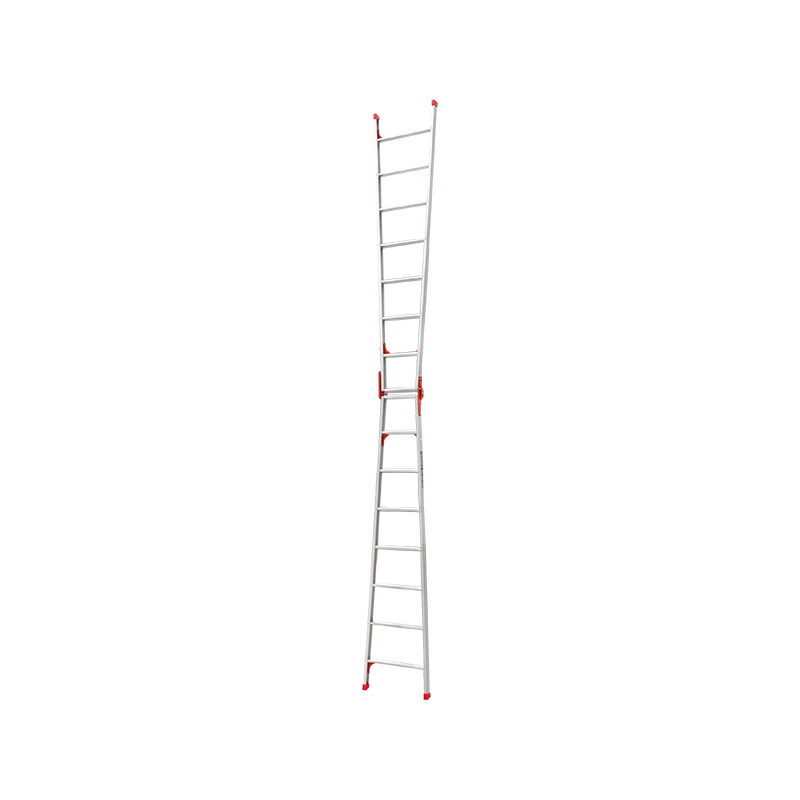

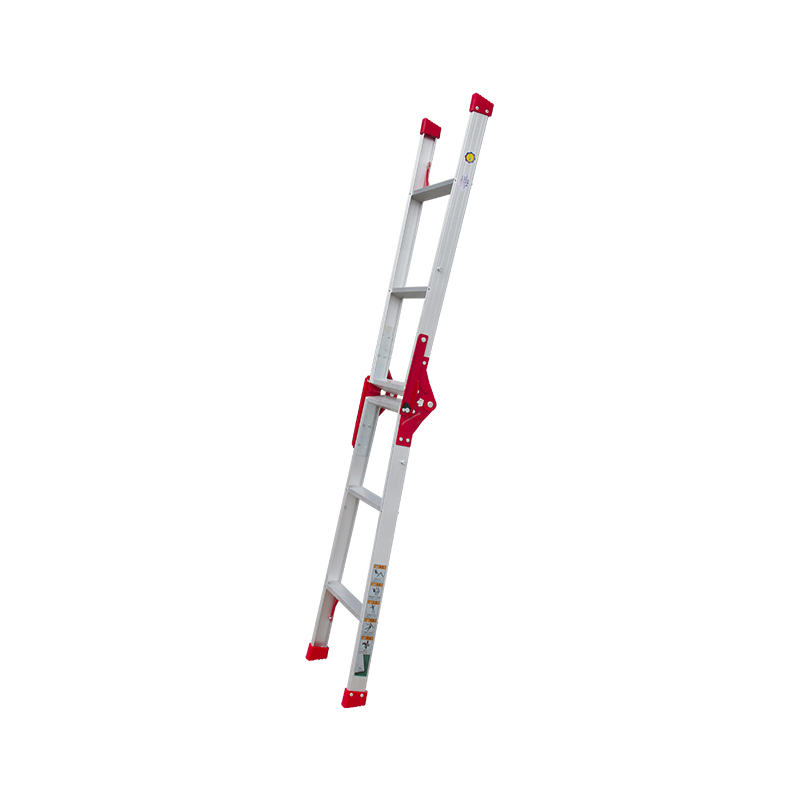

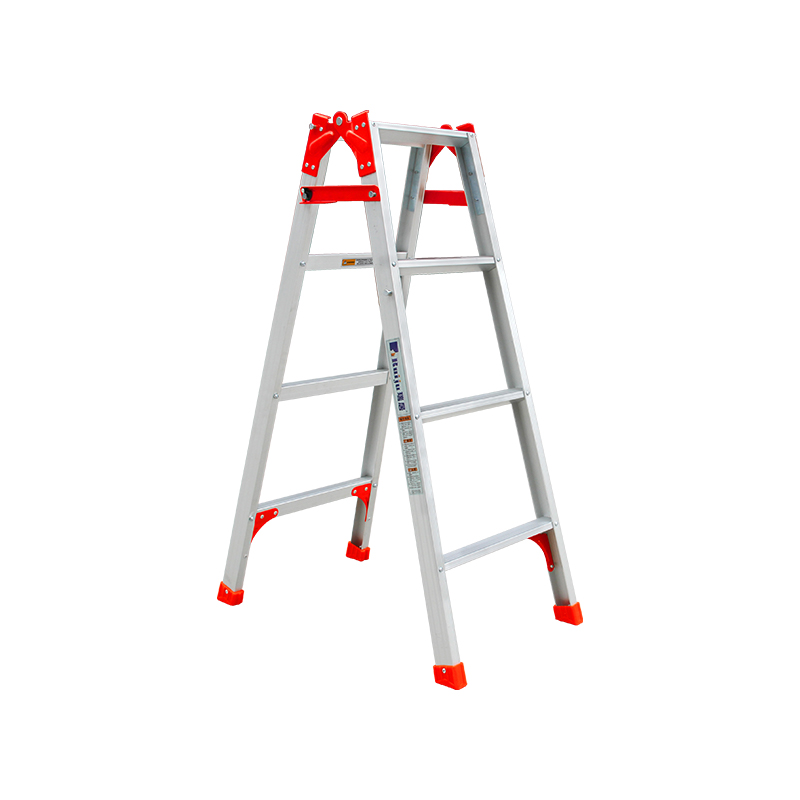

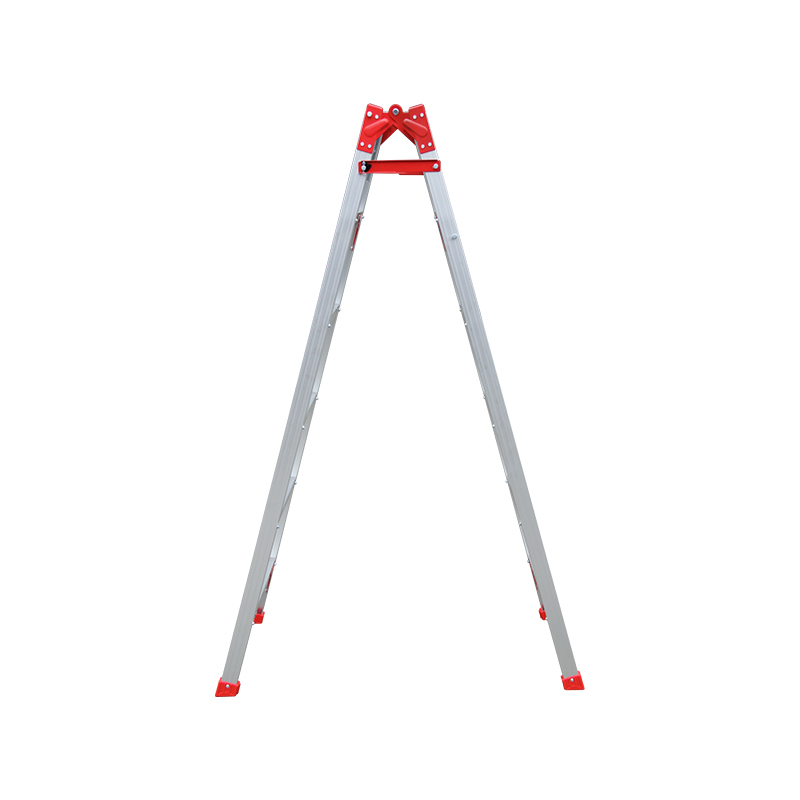

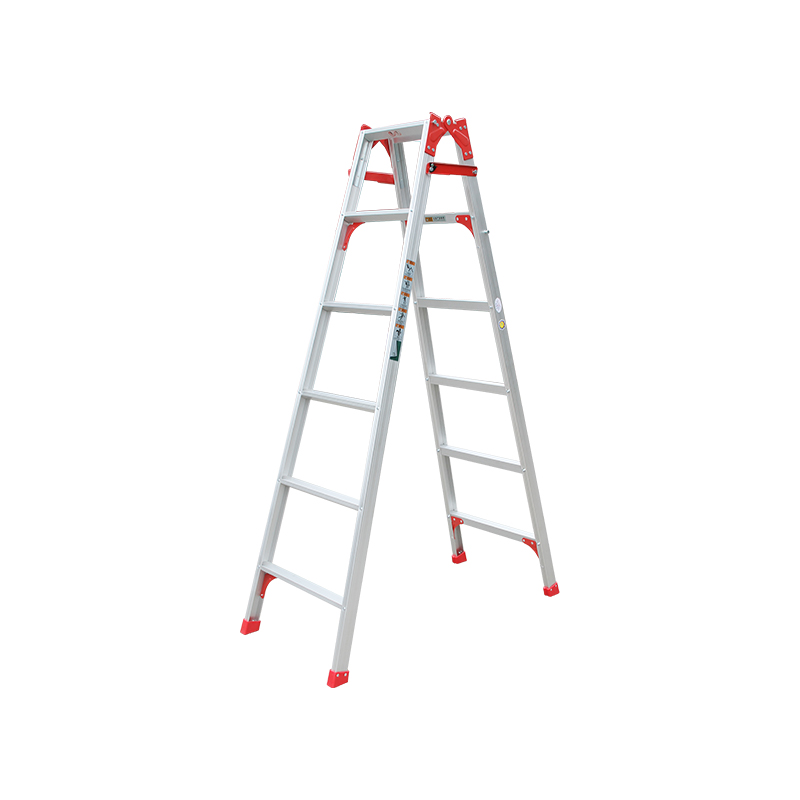

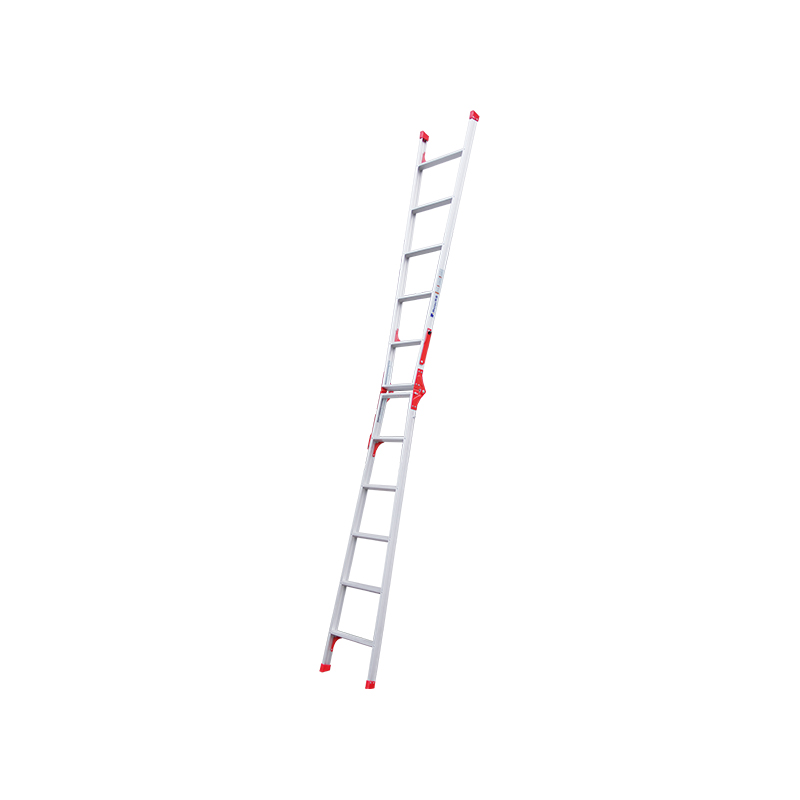

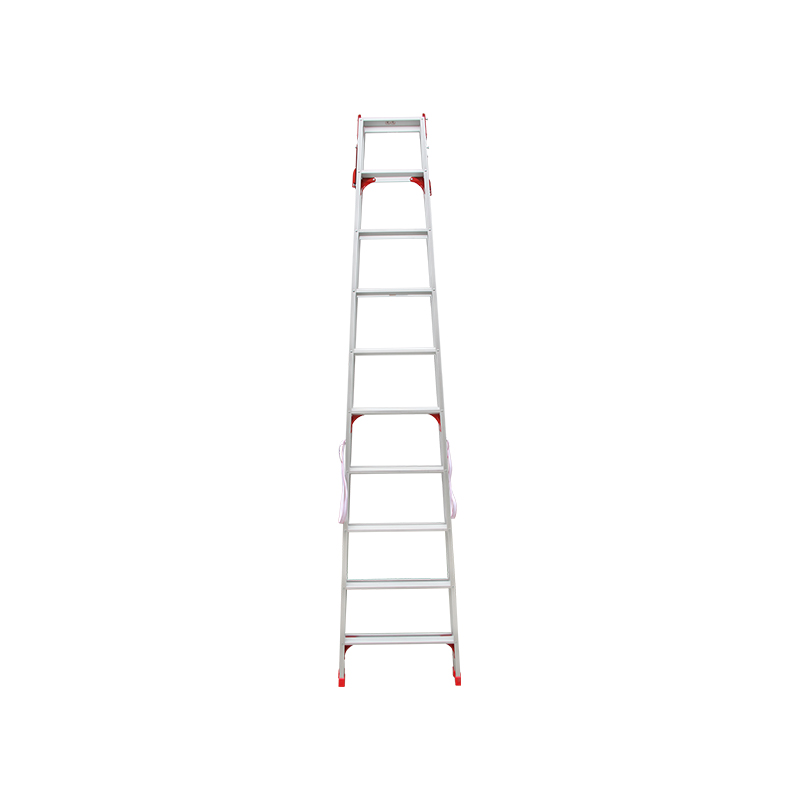

Straight ladder for single-side climbing & A-frame ladder for two-person standing.
2. Graded Thickened Steps
1.8mm for steps 1–6, 2.2mm for steps 7–10 for enhanced strength.
3. Solid Rivets & Triangular Braces
Lab-tested compression resistance up to 440kg.

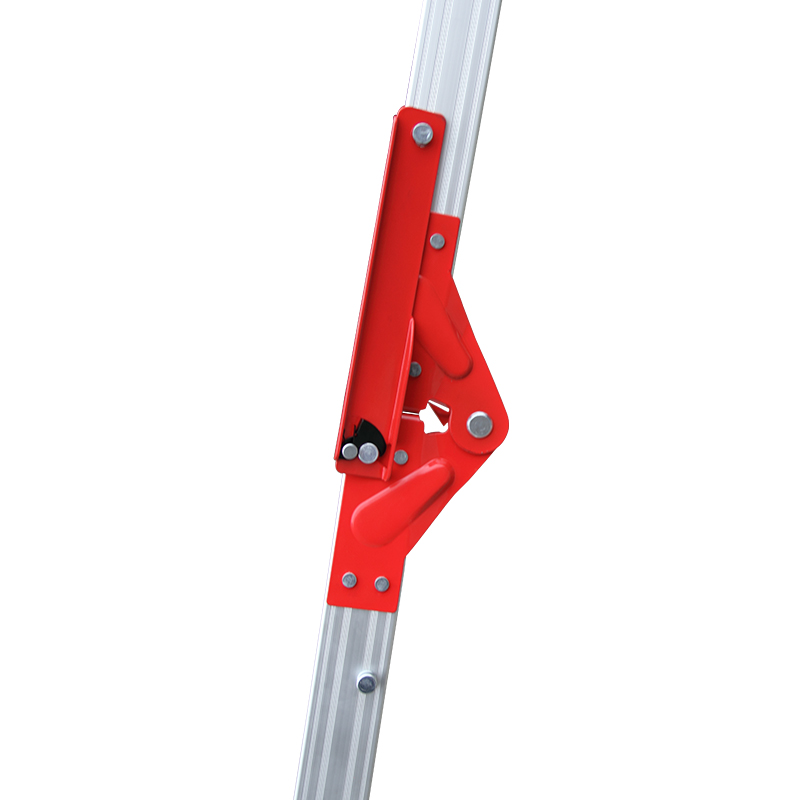

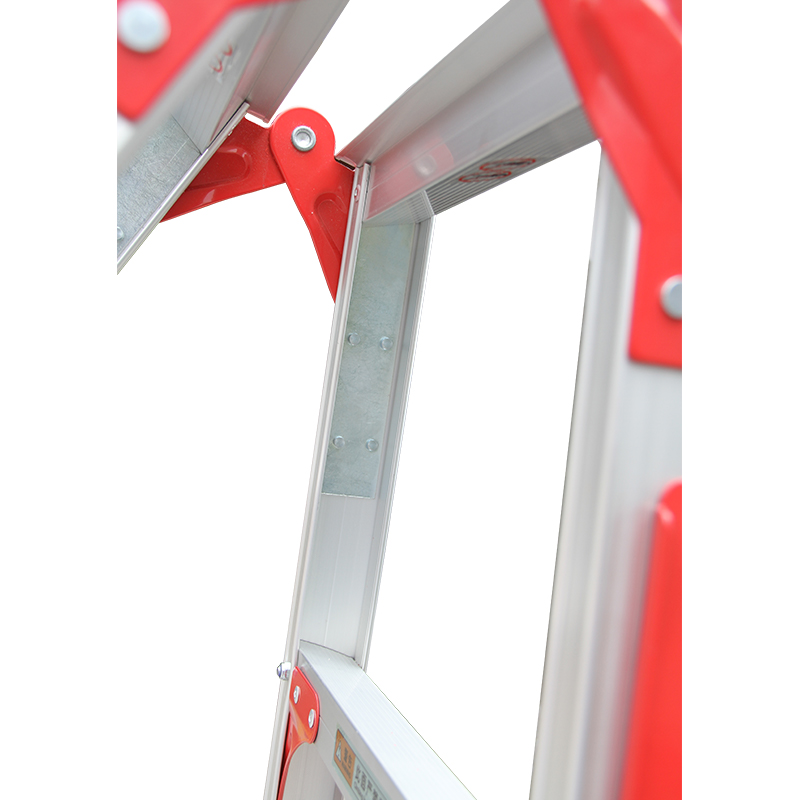

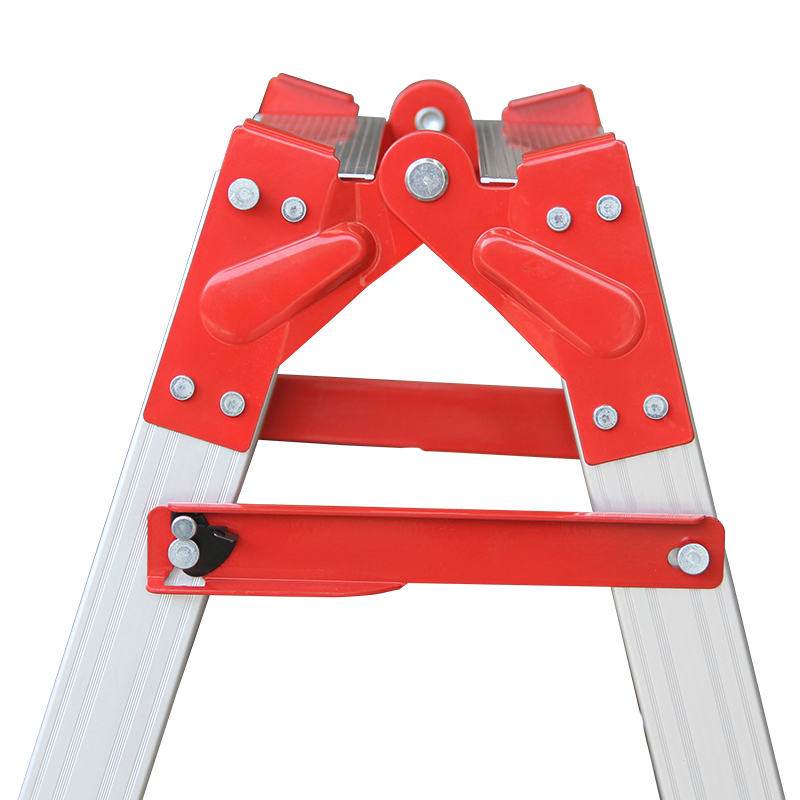

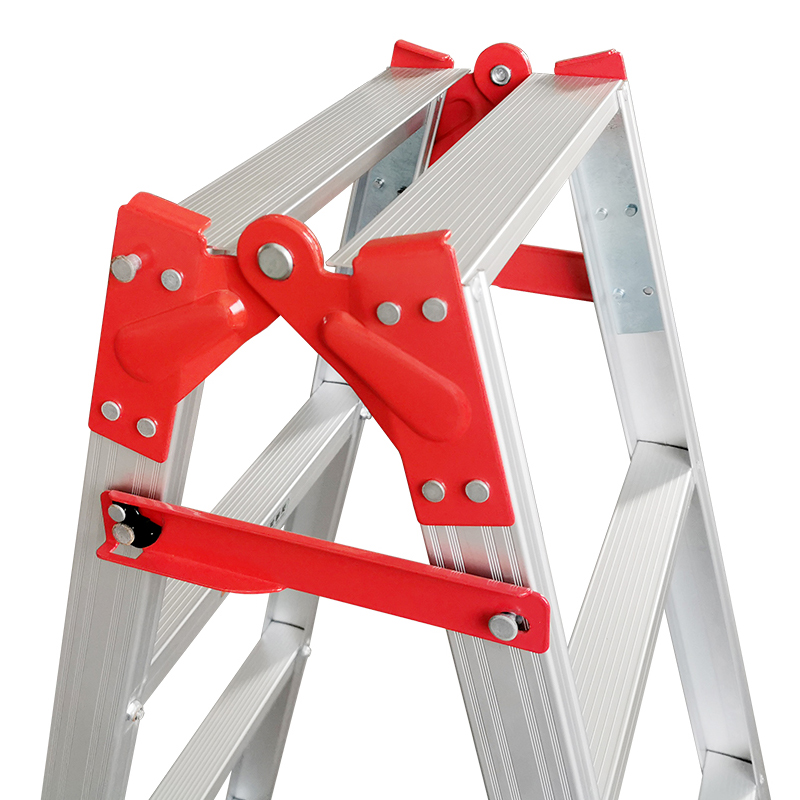

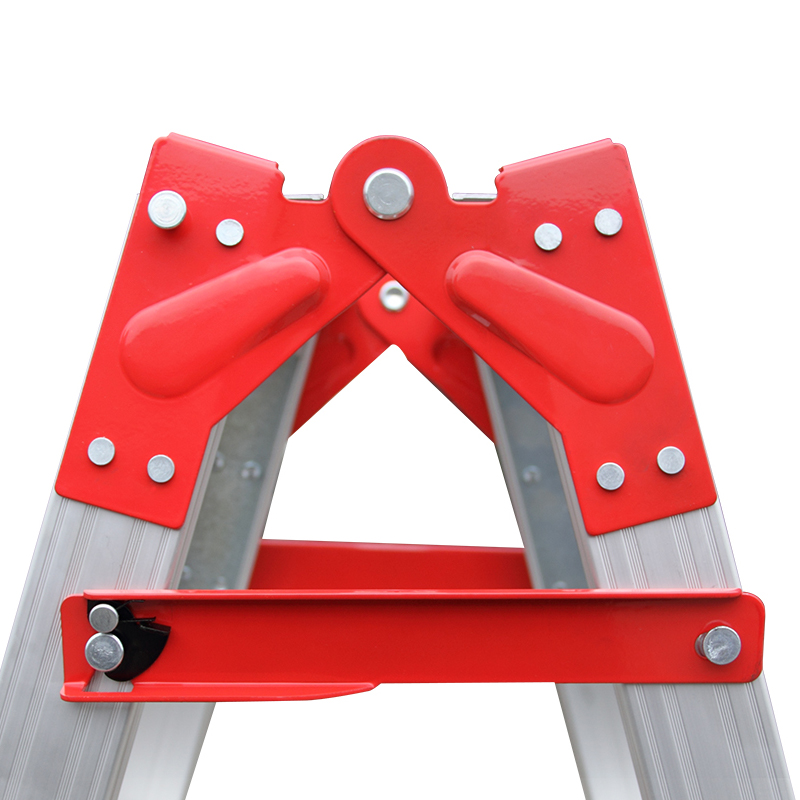

4. Thickened Steel Joint Lock
Reinforced lock for safe and stable operation.

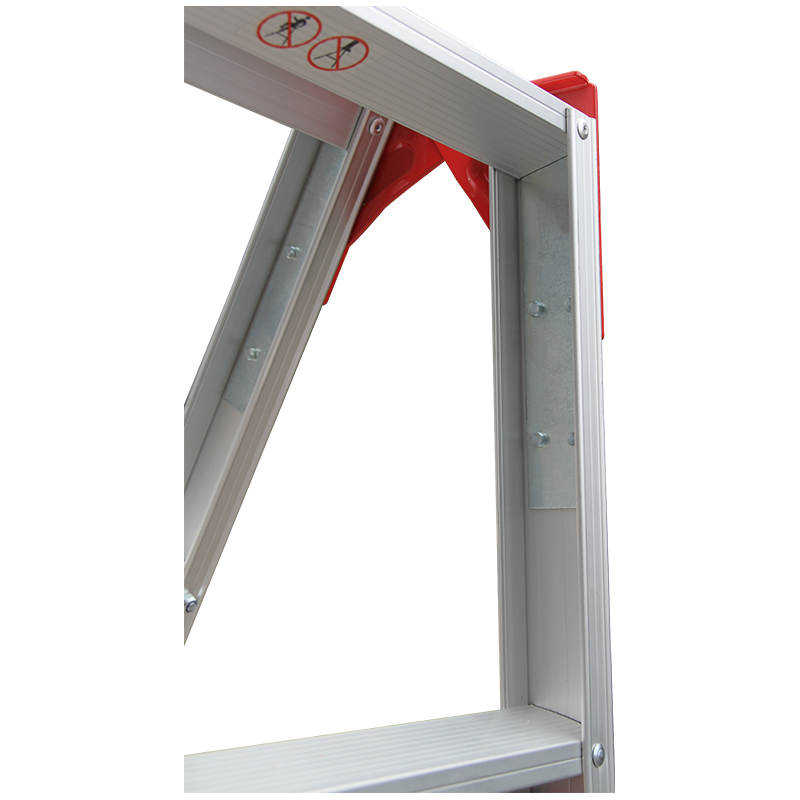

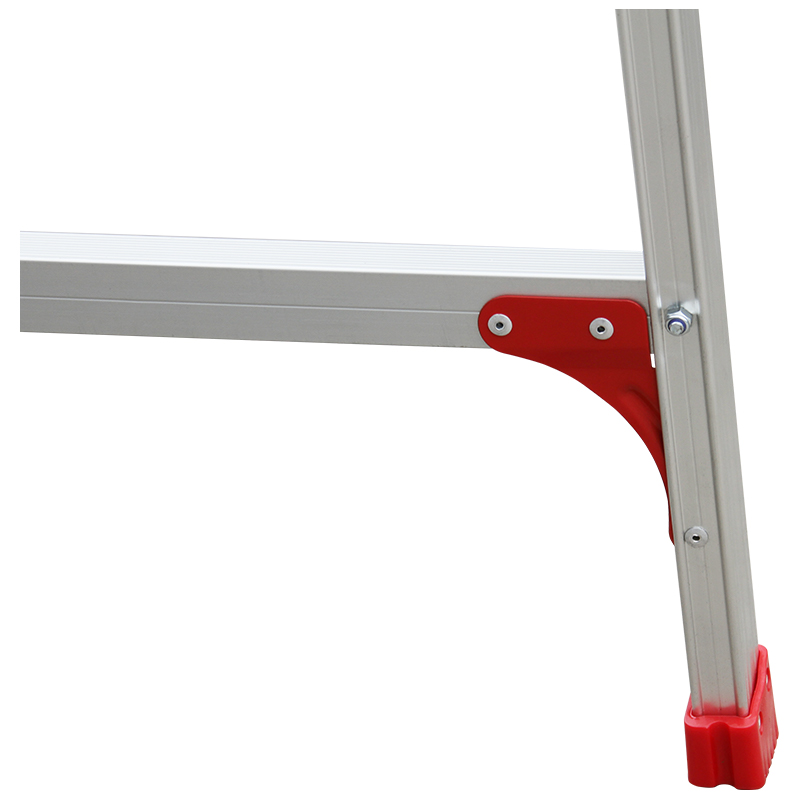

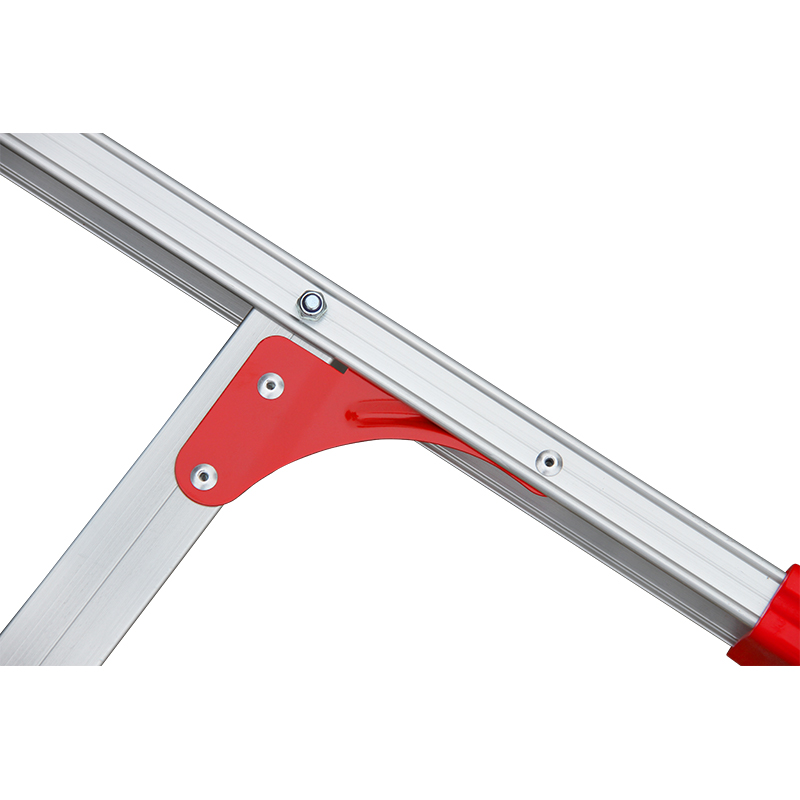

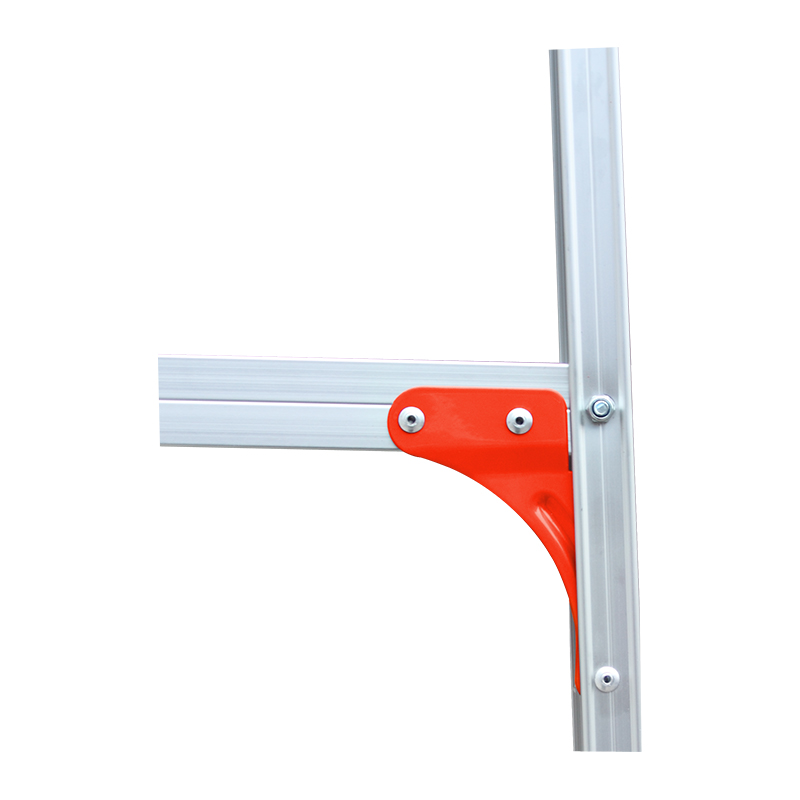

5. Reinforced Triangular Steel Plates
Added support for improved structural stability.

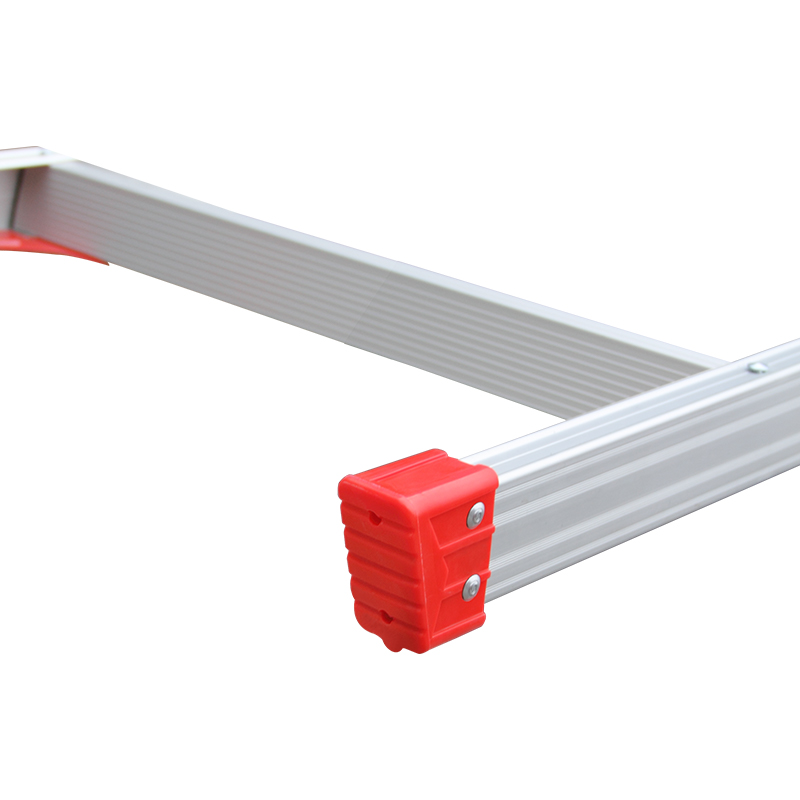

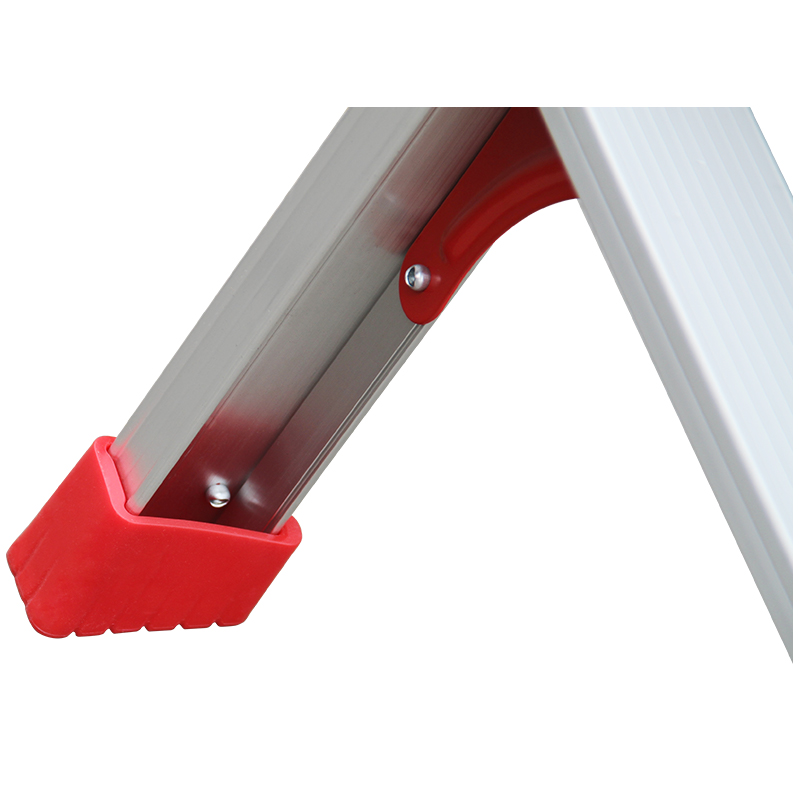

6. Double-Riveted Anti-Slip Feet
Firmly fixed non-slip feet for reliable grip.
| Model-YQZT | 1.14 | 1.74 | 2.04 | 2.34 |
| Steps | 2x4 | 2x6 | 2x7 | 2x8 |
| A Frame Height (mm) | 1110 | 1695 | 1985 | 2285 |
| Bottom Width (mm) | 455 | 525 | 555 | 590 |

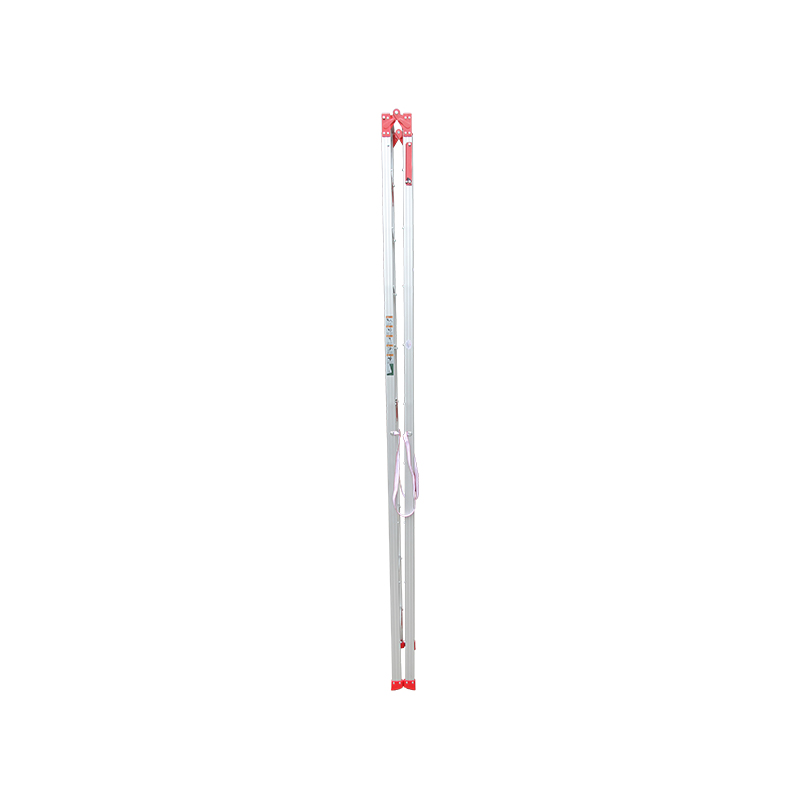

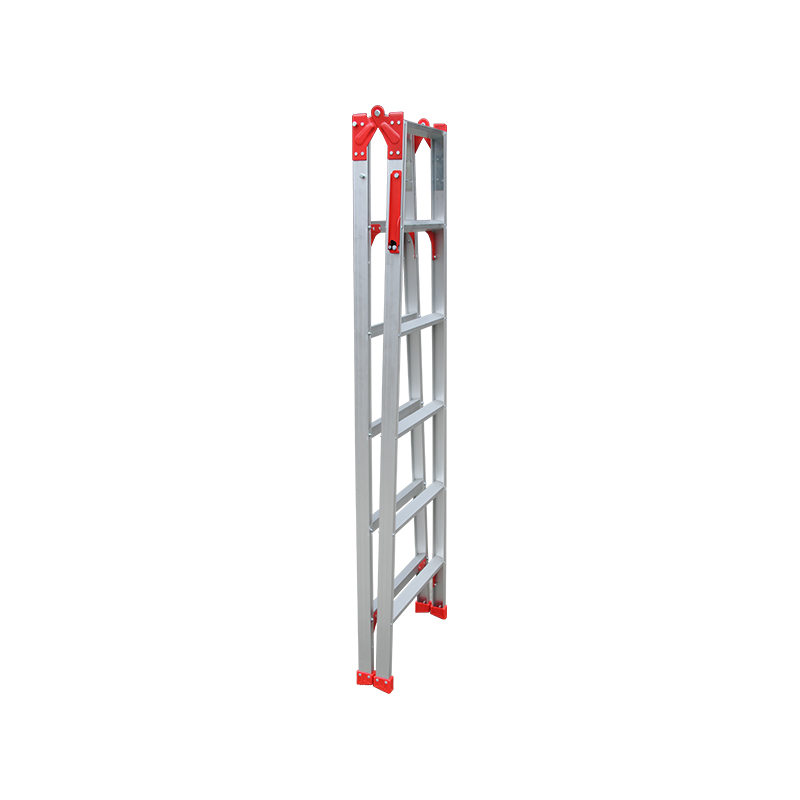

| Folded Length (mm) | 1175 | 1785 | 2070 | 2390 |
| Folded Thickness (mm) | 160 | 160 | 160 | 160 |

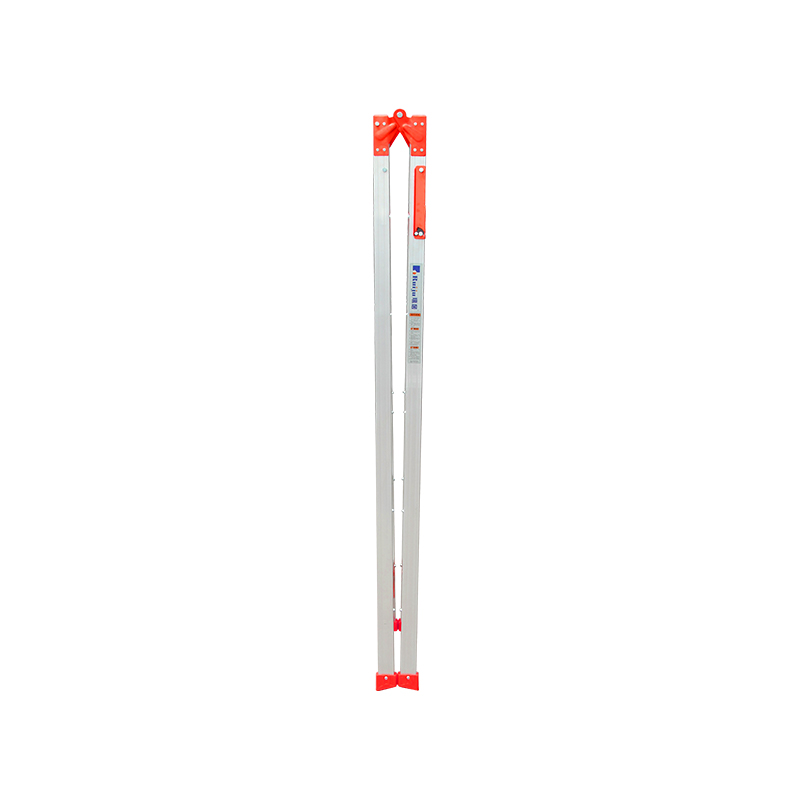

| Straight Length (mm) | 2315 | 3530 | 4130 | 4735 |
| Weight (kg) | 5.2 | 7.3 | 9.7 | 10.9 |
| 20" (pcs) | 414 | 242 | 193 | 171 |
| 40" (pcs) | 972 | 567 | 453 | 400 |

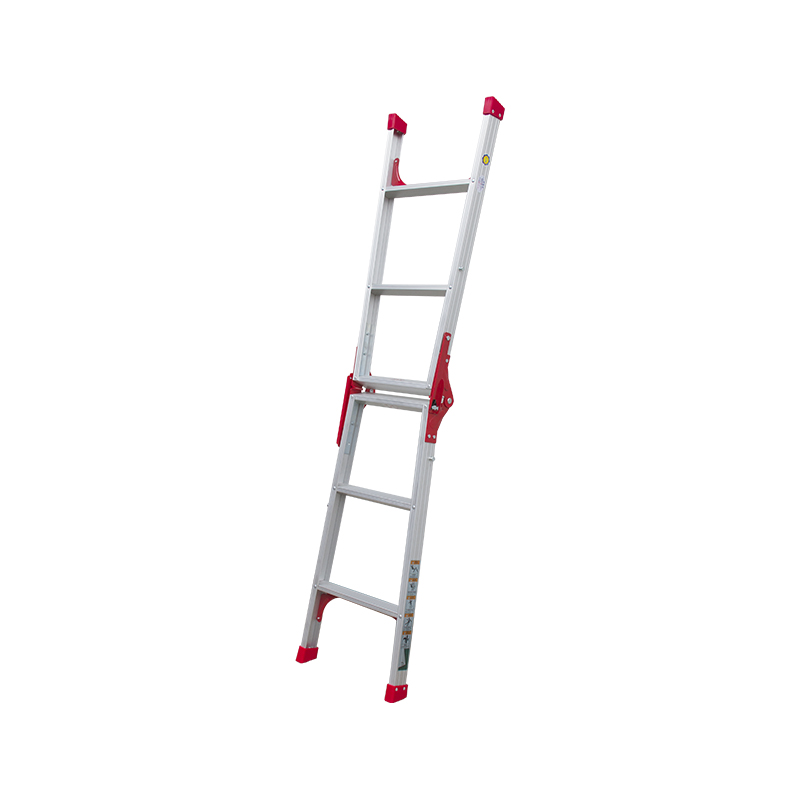

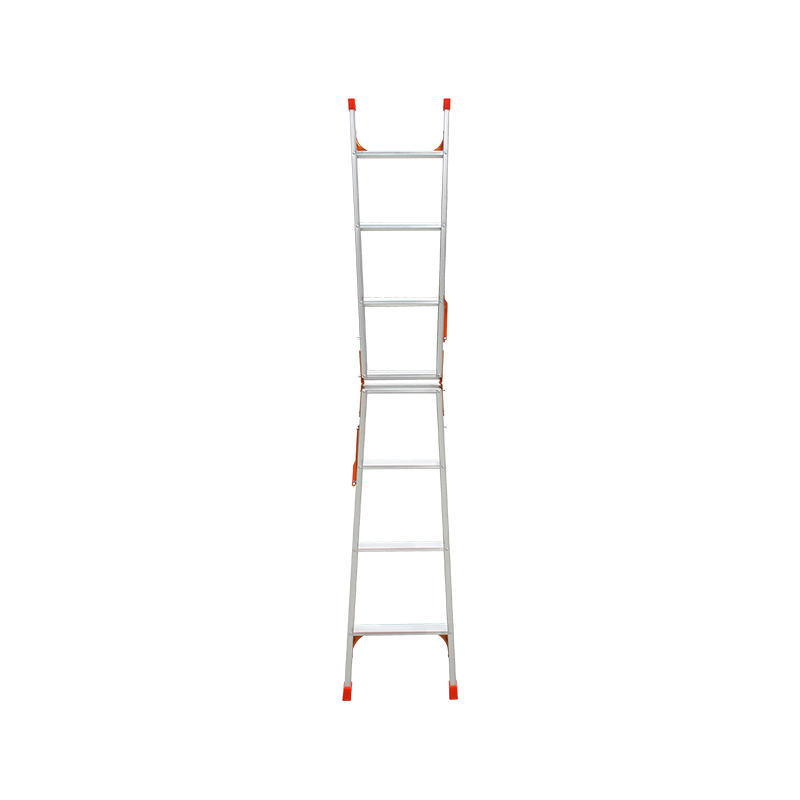

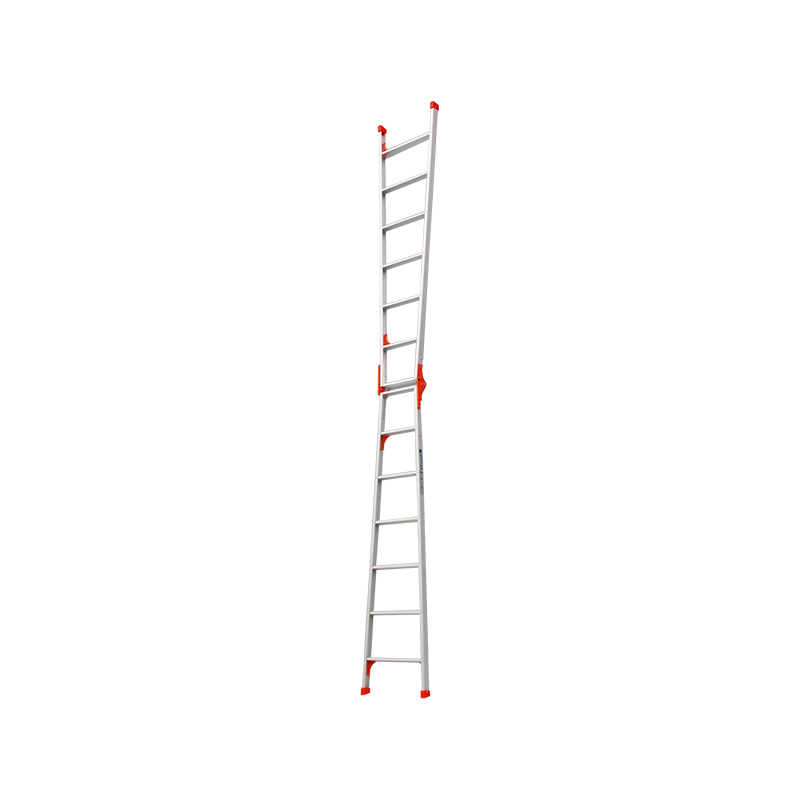

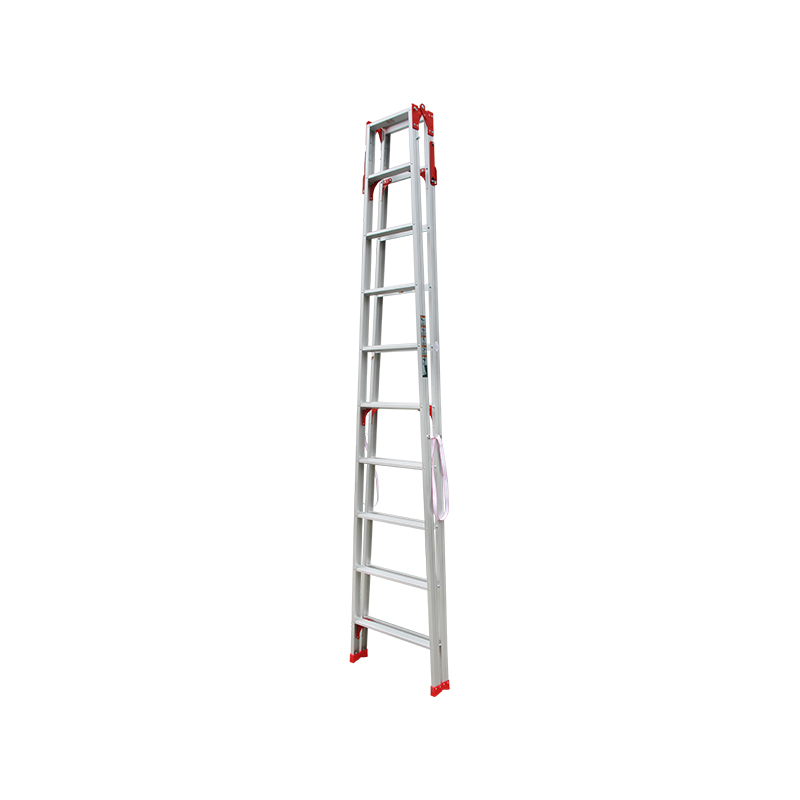

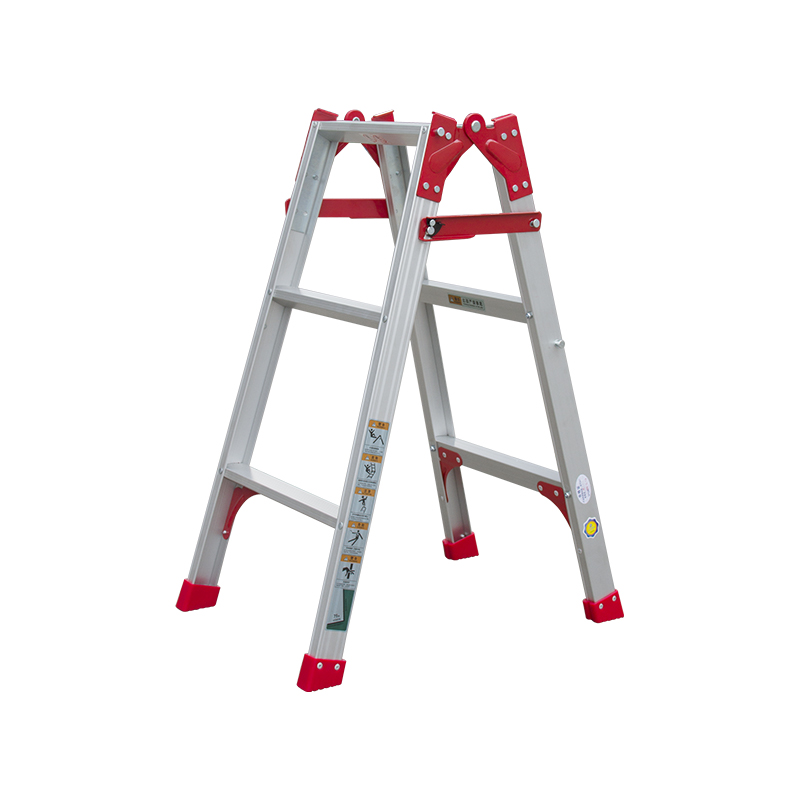

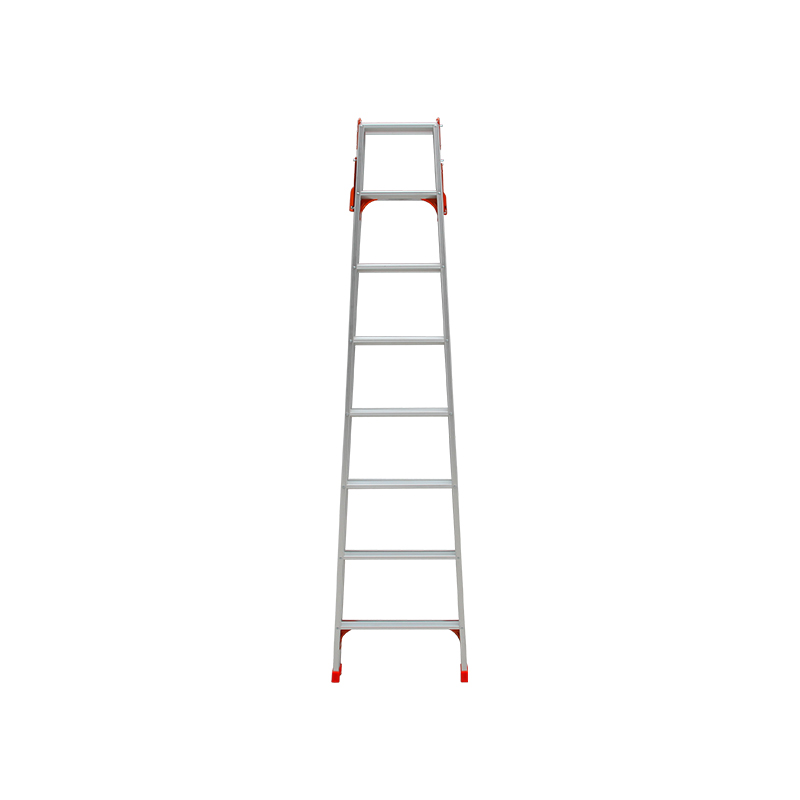

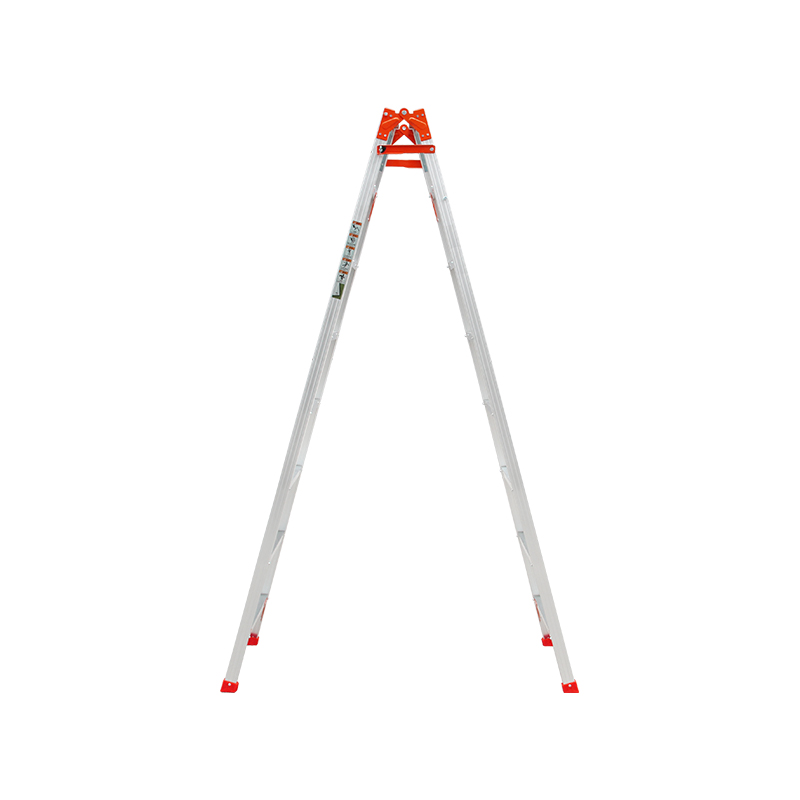

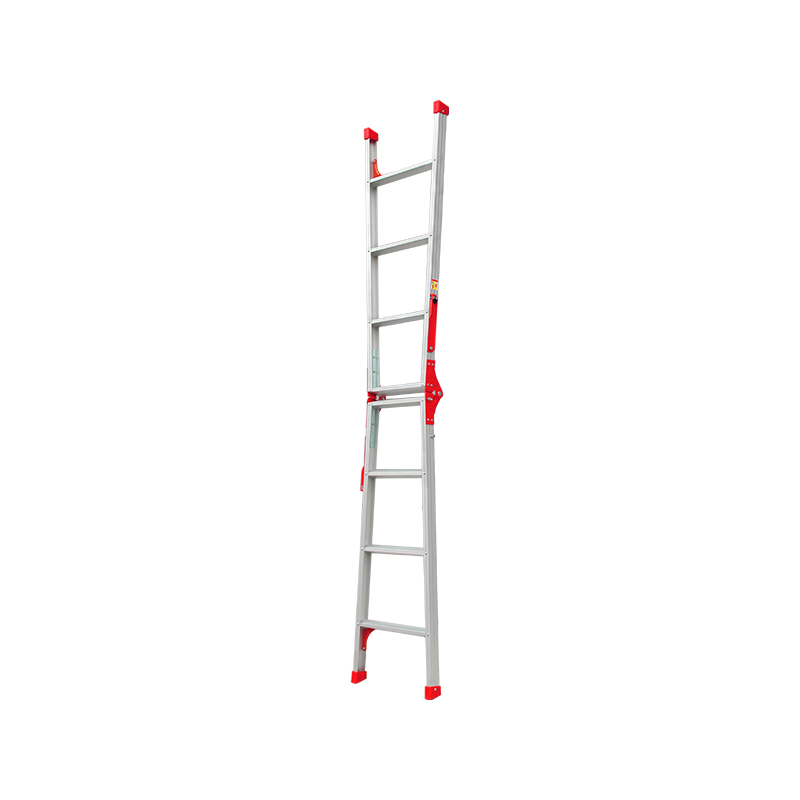

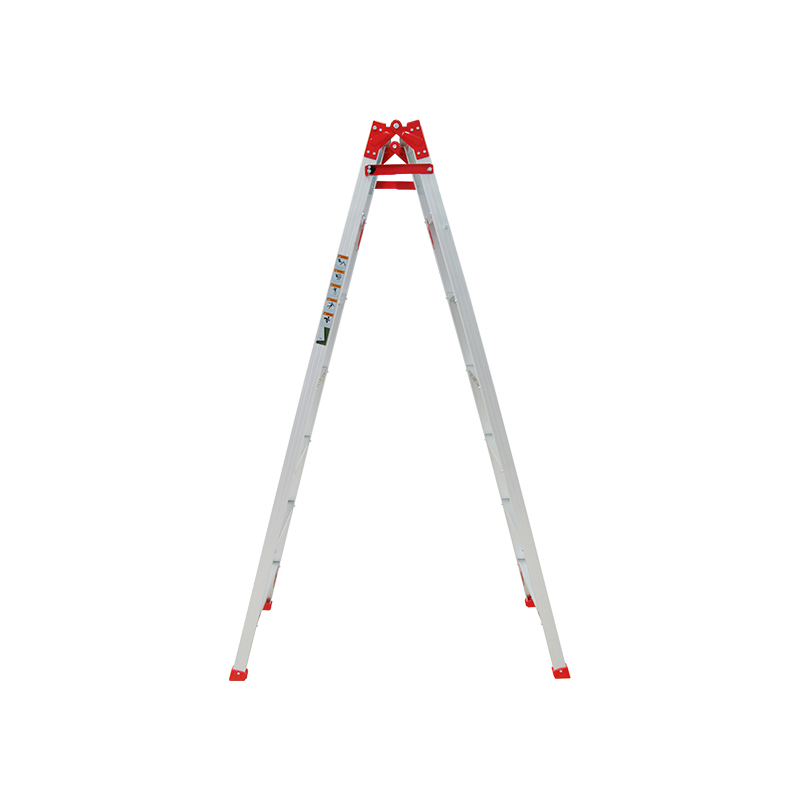

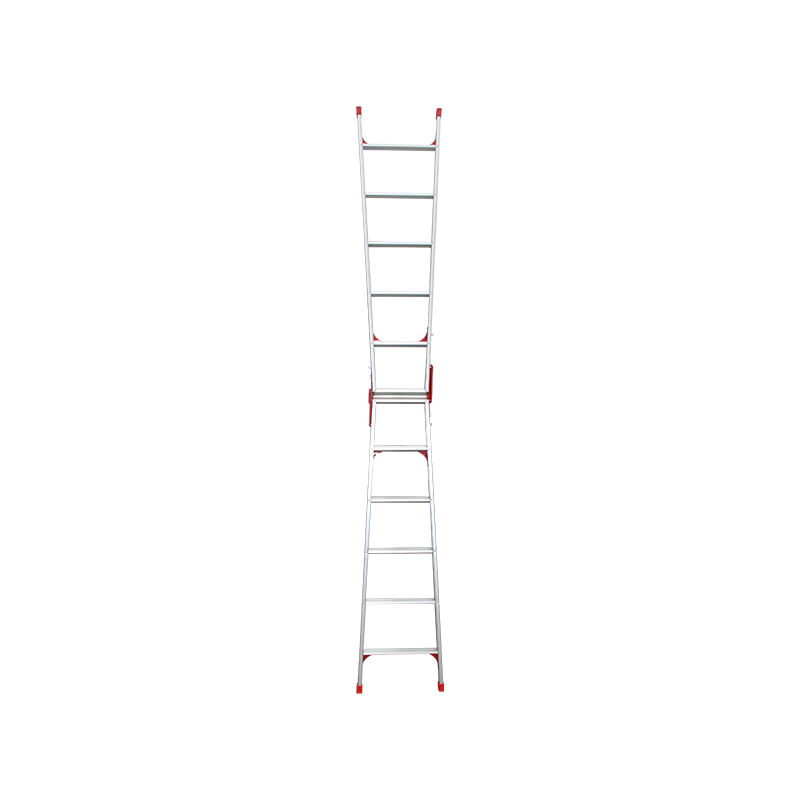

1. Dual-Mode Design for Versatile Use
The Light Duty Two-way Ladder offers both straight ladder mode for single-sided climbing and A-frame mode for two-sided standing. This flexible design allows users to adapt to different tasks and environments, whether reaching higher shelves at home or working on professional projects.

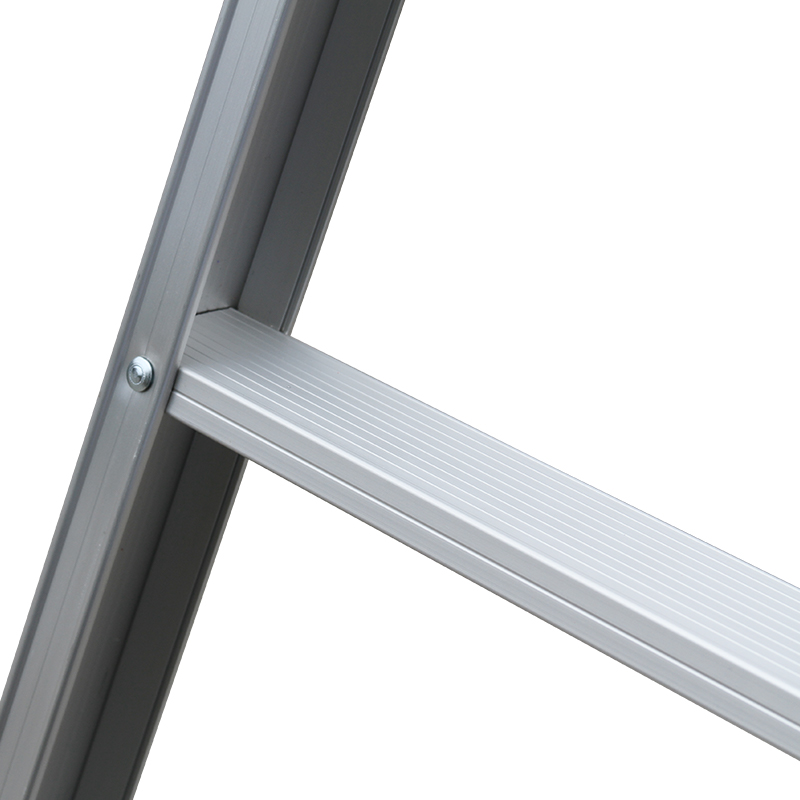

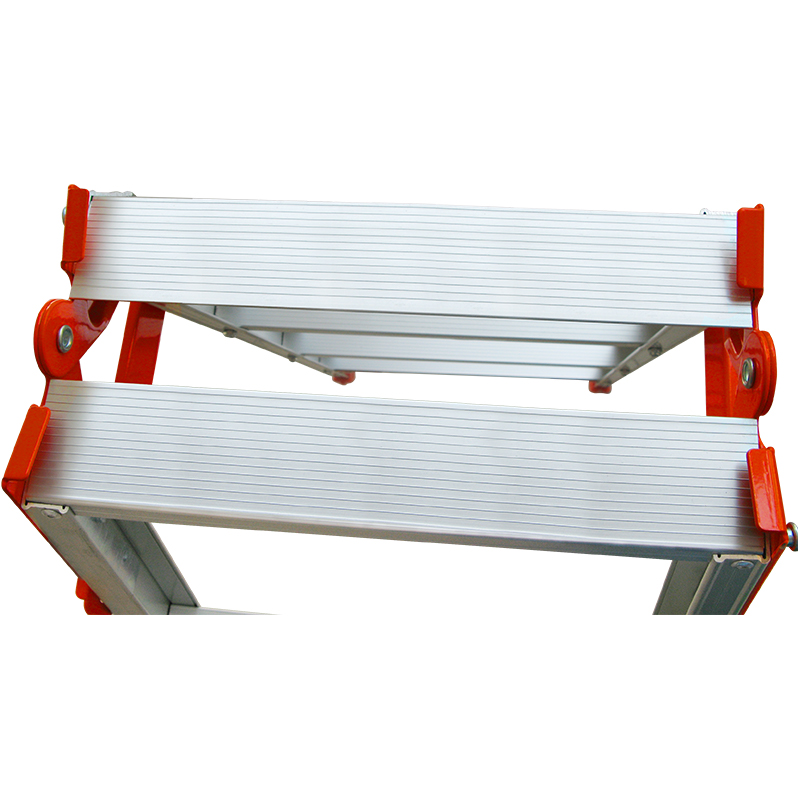

2. Reinforced Steps for Enhanced Safety
Featuring graded step wall thickness—1.8 mm for steps 1–6 and 2.2 mm for steps 7–10—the ladder ensures reliable support across all levels. Each step is engineered to provide stable footing, reducing wobble and enhancing user confidence during ascent and descent.

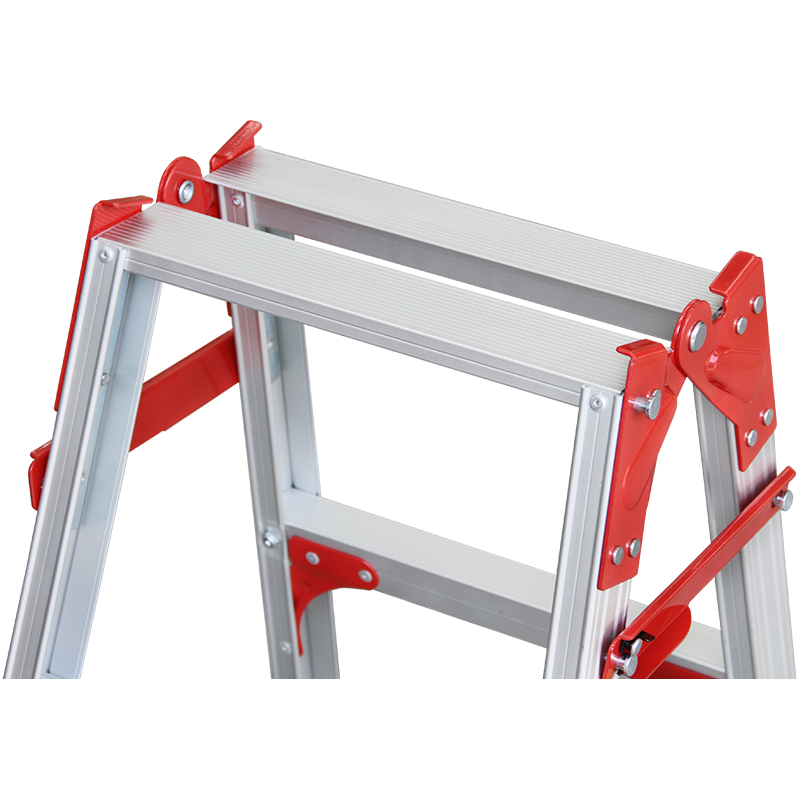

3. Strong Structural Support for Durability
Equipped with solid rivets and triangular diagonal braces, tested to withstand up to 440 kg, the ladder delivers exceptional load-bearing capacity. Additional reinforcements, including thickened steel joint locks and triangular steel plates, further enhance stability and ensure safe, long-term use.

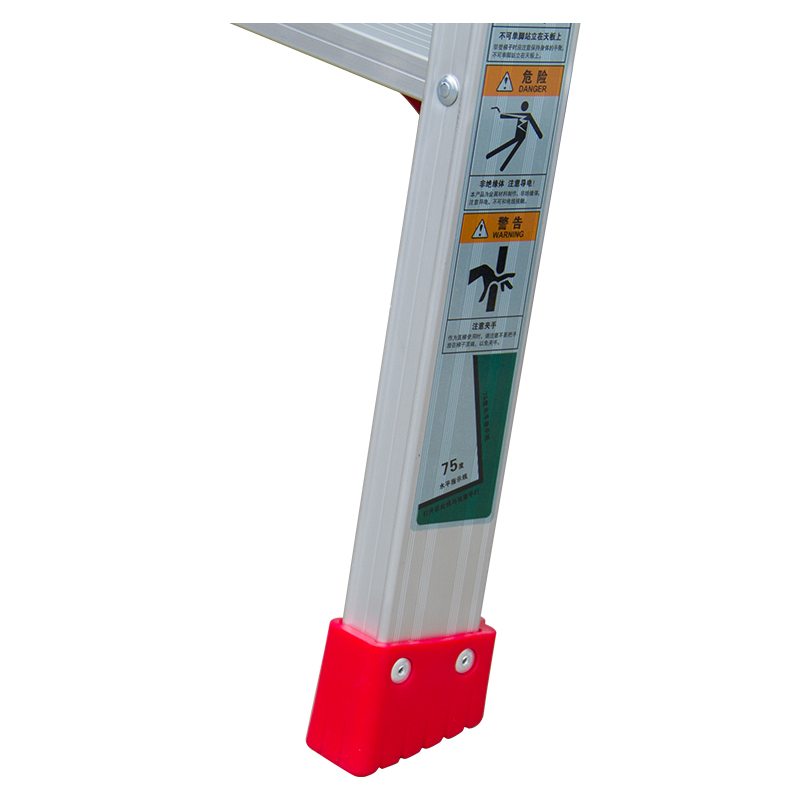

4. Anti-Slip Feet for Secure Positioning
The ladder’s base features double-riveted, reinforced, anti-slip foot pads that provide strong grip on various surfaces. This reliable footing protects both users and floors, making the Light Duty Two-way Ladder suitable for a wide range of applications, from household maintenance to light industrial and commercial tasks.
| Model-YQZT | 1.14 | 1.44 | 1.74 | 2.04 | 2.34 |
| Steps | 2x4 | 2x5 | 2x6 | 2x7 | 2x8 |
| A Frame Height (mm) | 1110 | 1405 | 1695 | 1985 | 2285 |
| Bottom Width (mm) | 455 | 490 | 525 | 555 | 590 |
| Folded Length (mm) | 1175 | 1480 | 1785 | 2070 | 2390 |
| Folded Thickness (mm) | 160 | 160 | 160 | 160 | 160 |
| Straight Length (mm) | 2315 | 2920 | 3530 | 4130 | 4735 |
| Weight (kg) | 5.2 | 6.2 | 7.3 | 9.7 | 10.9 |
| 20" (pcs) | 414 | 290 | 242 | 193 | 171 |
| 40" (pcs) | 972 | 680 | 567 | 453 | 400 |
For project inquiries, fill in the form or contact us directly—our team responds promptly.
