Mobile Ladders Platform

Product Selling Points Basic Parameters Certifications

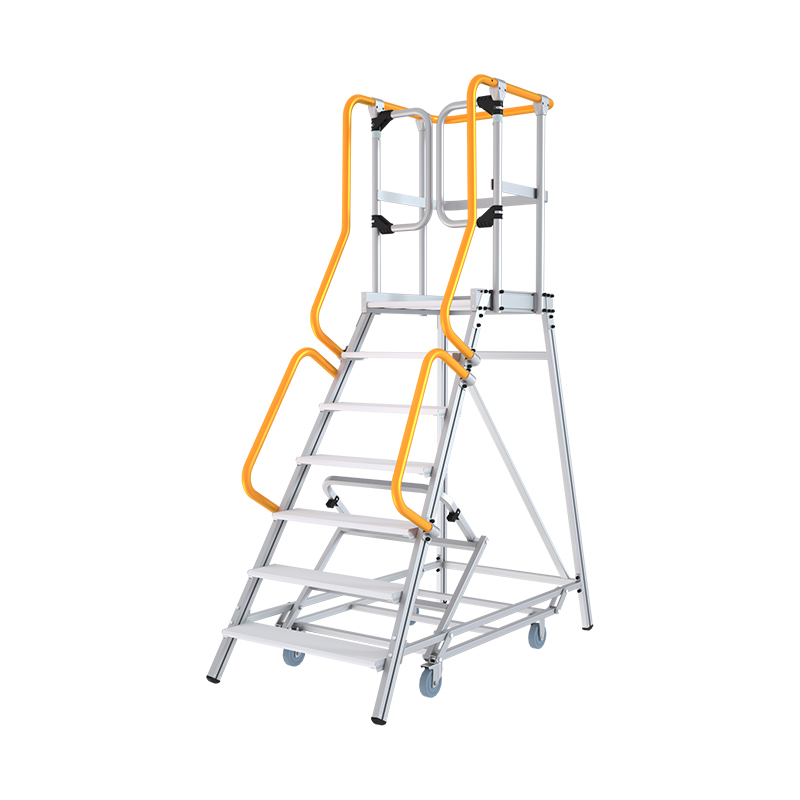

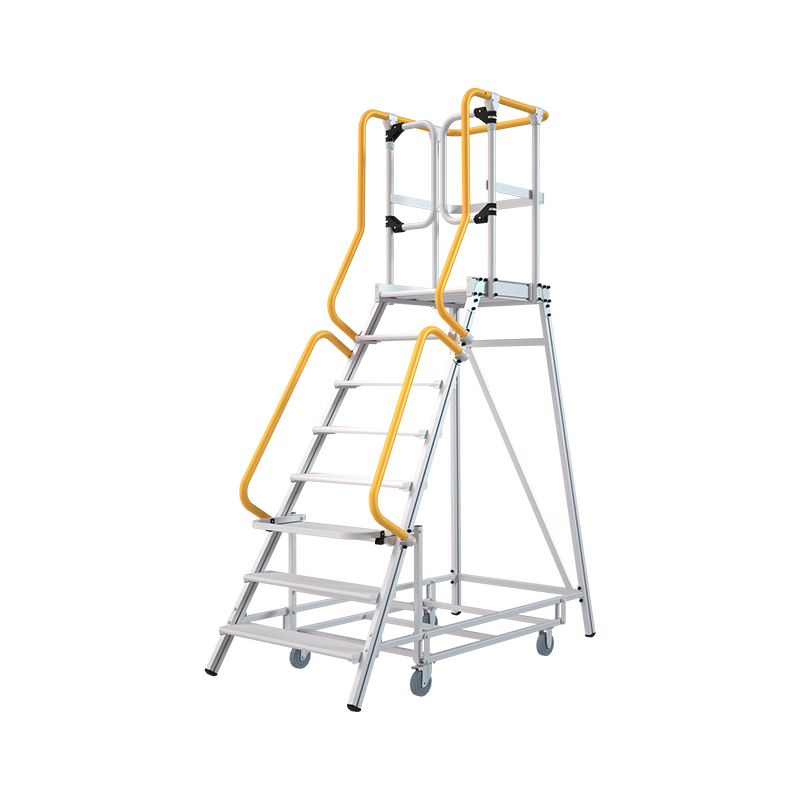

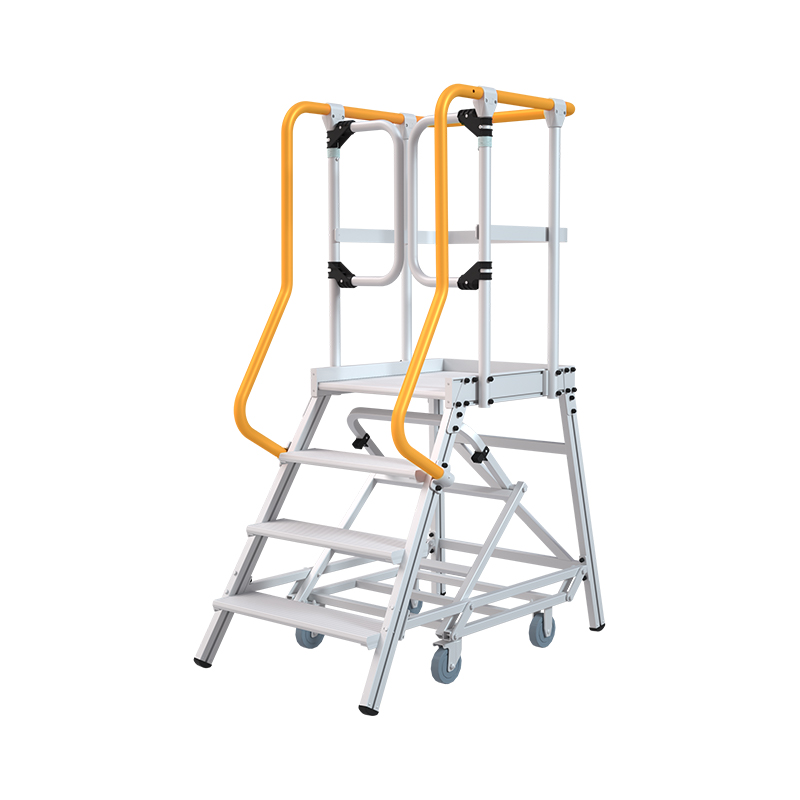

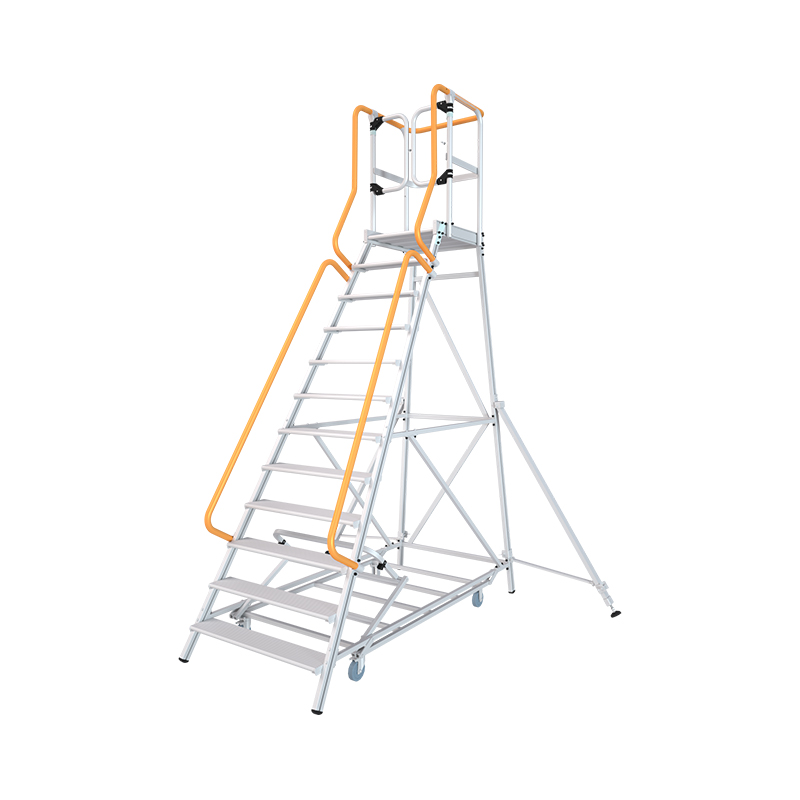

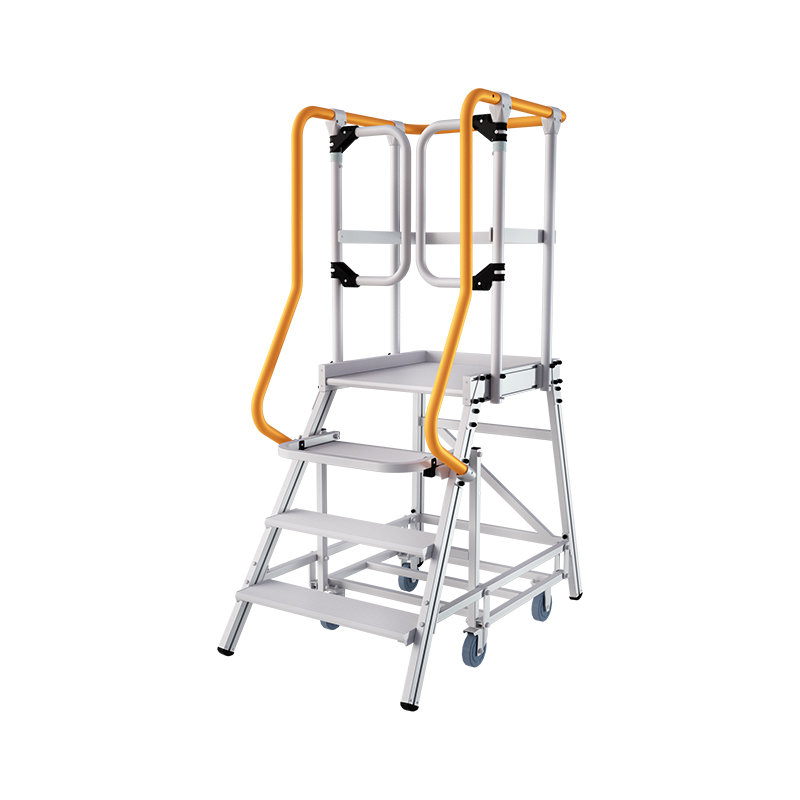

Mobile Ladder Platform with self-closing door

1. New Telescopic Caster System
Wheels off the ground during use for enhanced stability and safety.
2. Multiple Height Options
Available heights from 1m to 4m to meet different needs.
3. Easy Installation & Operation
Simple to use, saving labor and time costs.
4. 1m High Safety Guardrail
With self-closing gate for automatic locking and convenient operation.
5. Wide Application
Ideal for warehouse sorting, shelf picking, industrial maintenance, logistics handling and supermarket restocking.

Model-FPZ 3 4 5 6 7 8 9 10 11 12 13 14
Steps 3 4 5 6 7 8 9 10 11 12 13 14
Handrail Height (mm) 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
Platform Height (mm) 720 960 1200 1440 1680 1920 2160 2400 2640 2880 3120 3360
Ladder Depth (mm) 1315 1321 1489 1655 1826 1993 2157 2326 2318 2469 2620 2771
Bottom Width (mm) 797 821 862 905 947 989 1032 1075 1115 1157 1199 1241
Weight (kg) - FP/FPZ 28.6/31.1 38.9/41.4 42.3/44.8 46/48.5 51/53.5 54.5/57 58.6/61.1 63.2/65.7 80.6/83.1 86/88.5 92.8/95.3 97.6/100.1
20" (pcs) 74 69 55 48 39 33 29 26 23 19 15 12
40" (pcs) 174 162 128 110 92 78 67 58 50 43 36 30
Product Model:

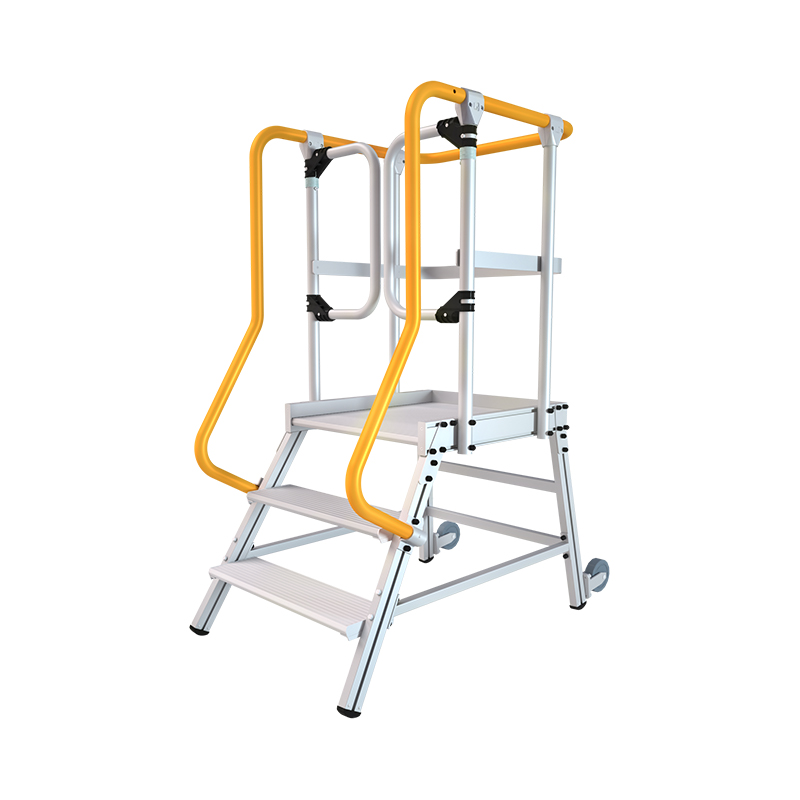

  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ3
  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ4

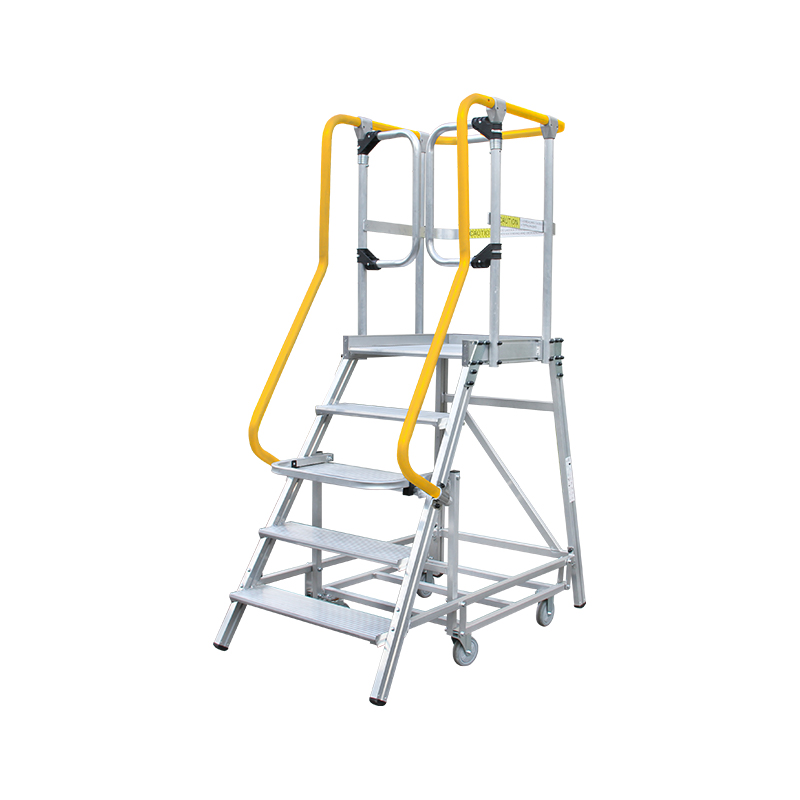

  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ5

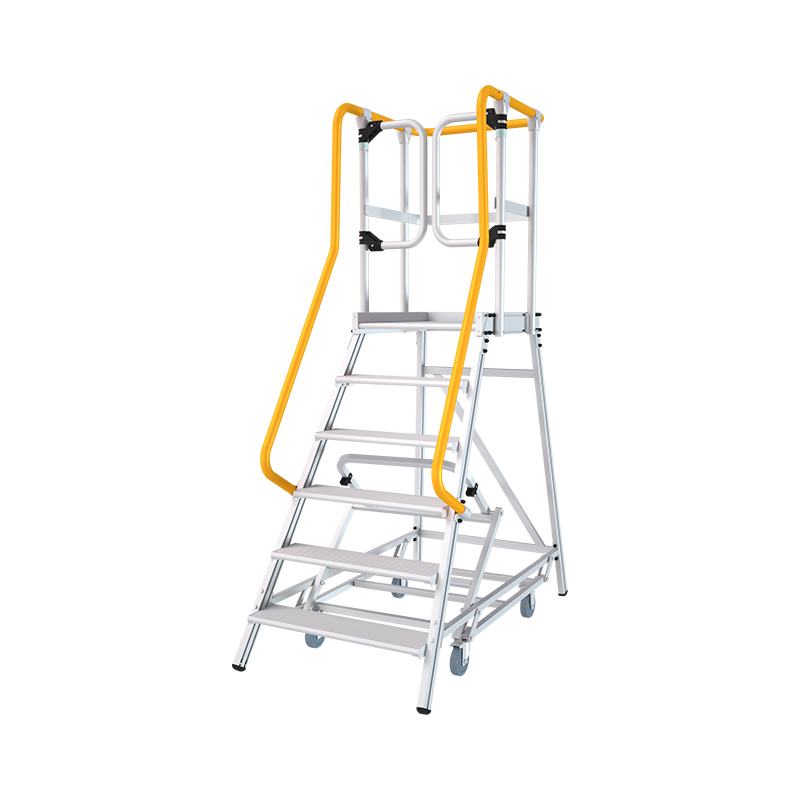

  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ6

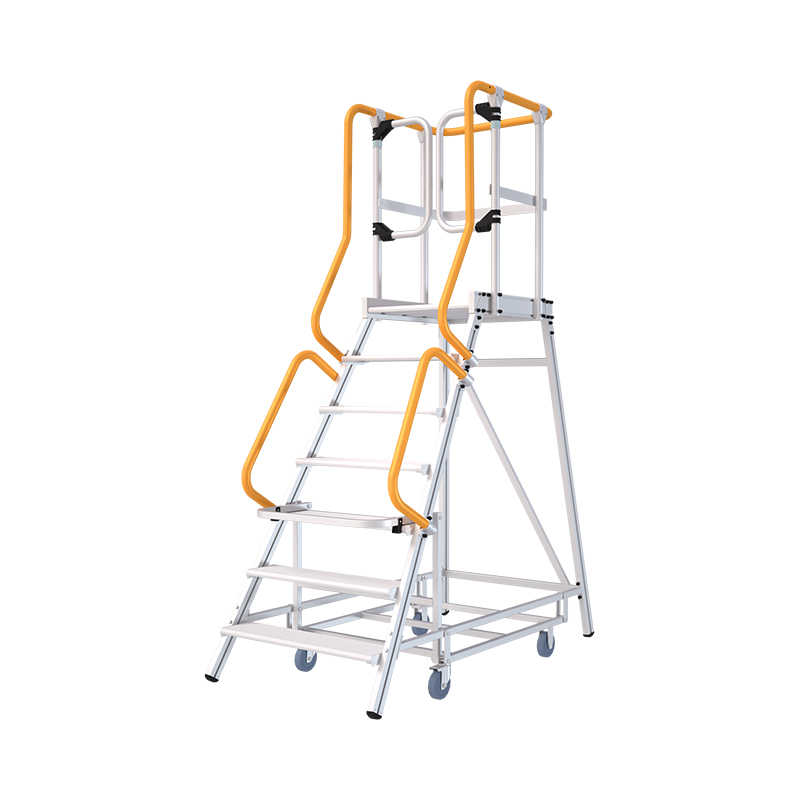

  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ7
  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ8
  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ9

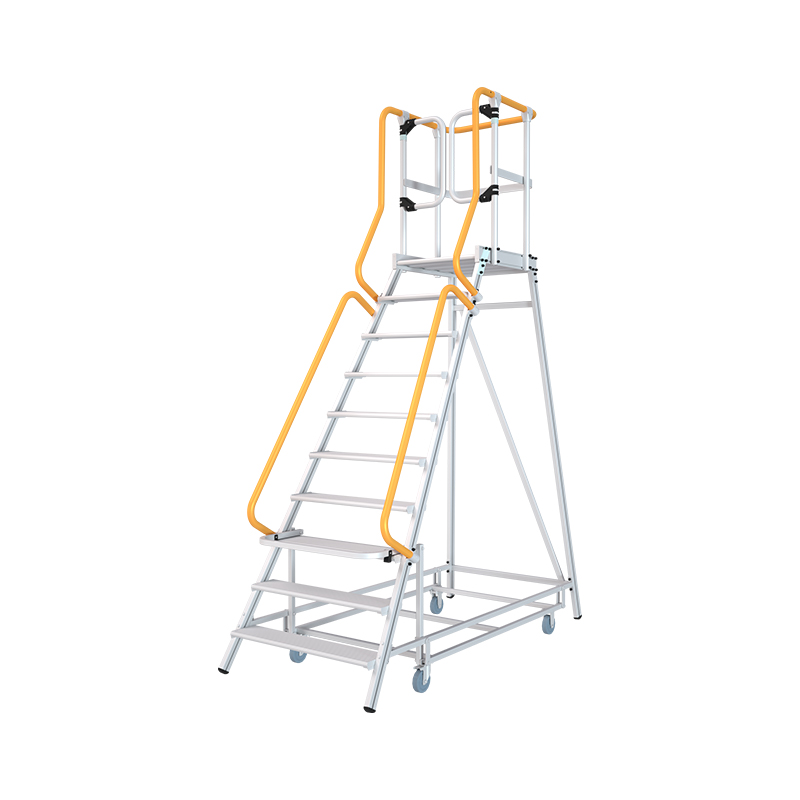

  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ10

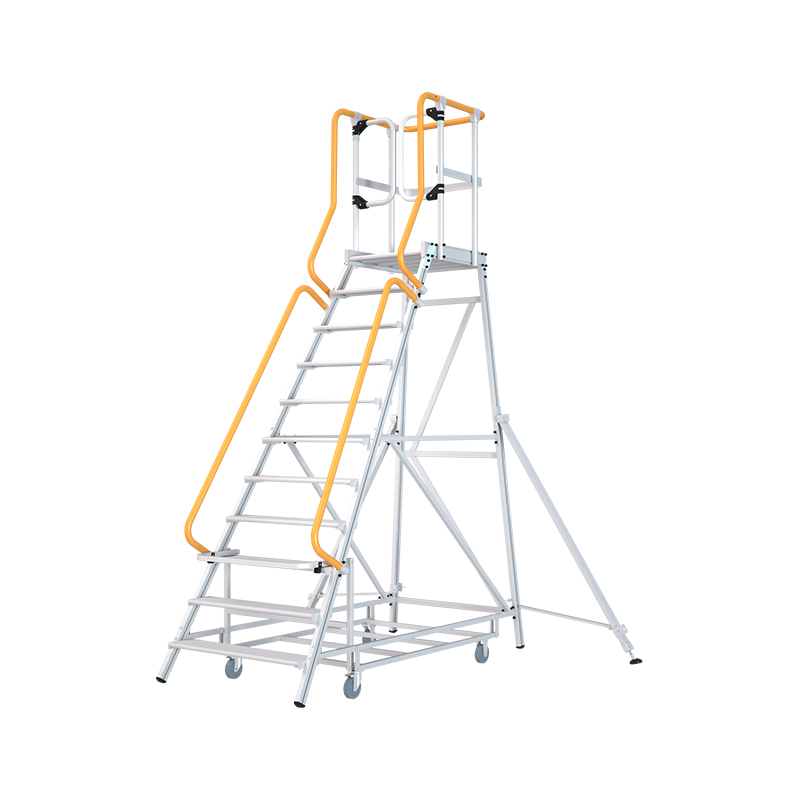

  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ11

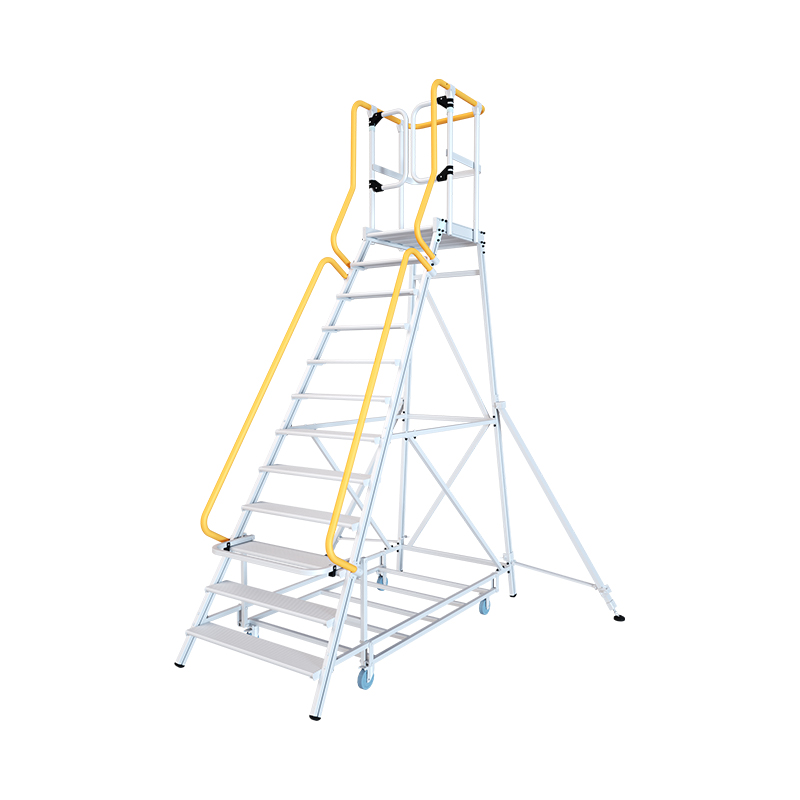

  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ12

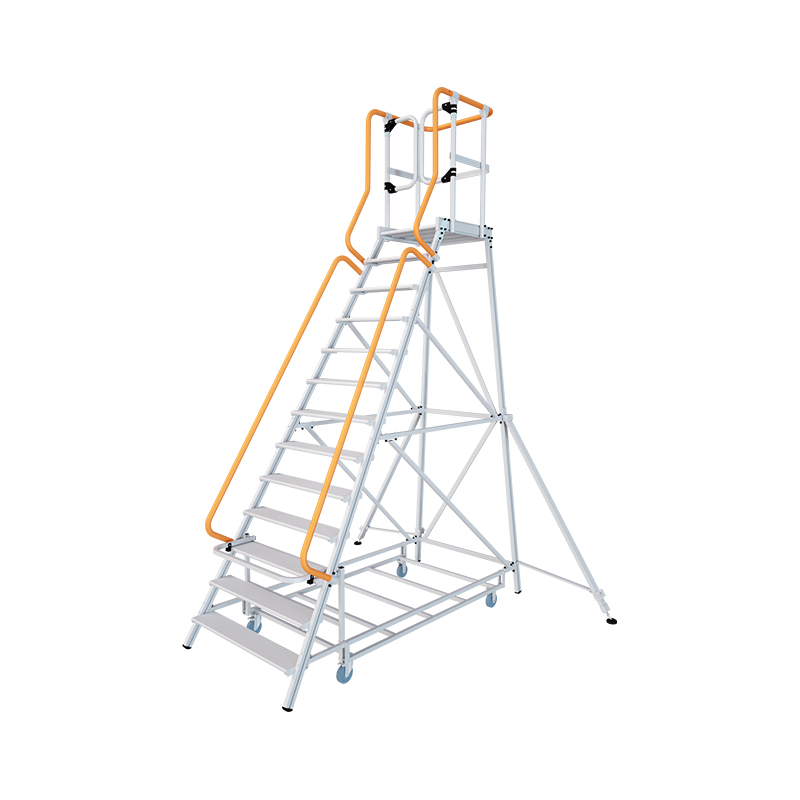

  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ13

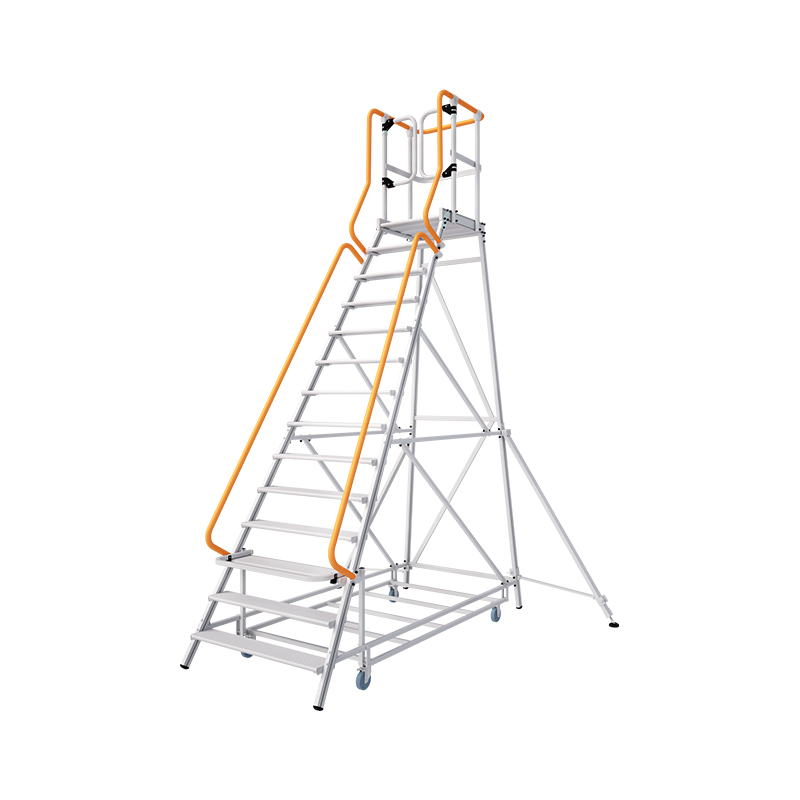

  • Shanghai Ruiju Metal Products Co.,Ltd. FPZ14

Product Manual
Product Details Product Specifications

1. Innovative Telescopic Wheel System for Stability and Safety
The Mobile Ladders Platform features a cutting-edge telescopic wheel system that keeps the wheels off the ground while in use. This ensures enhanced stability and safety during operation, reducing the risk of accidental movement or wobbling when accessing high areas.

2. Adjustable Height for Versatile Use
With height options ranging from 1 meter to 4 meters, this platform can be customized to suit a variety of tasks and work environments. Its adjustable design allows users to perform a wide range of elevated tasks efficiently, whether in tight spaces or larger areas requiring variable height access.

3. Easy Setup and Secure Guardrails for User Protection
The platform is designed for simple installation and quick setup, saving time and labor costs. It features a 1-meter high safety guardrail with a self-closing door that automatically locks when engaged. This provides additional protection, ensuring the user remains secure while working at height.

4. Ideal for Professional and Commercial Applications
Perfect for warehouse stocking, equipment inspection, industrial maintenance, logistics operations, and supermarket restocking, the Mobile Ladders Platform delivers a safe, efficient, and convenient solution for elevated work in a variety of professional environments. Its combination of adjustable height, easy setup, and protective features makes it an essential tool for productivity and safety.

Model-FPZ 3 4 5 6 7 8 9 10 11 12 13 14
Steps 3 4 5 6 7 8 9 10 11 12 13 14
Handrail Height (mm) 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
Platform Height (mm) 720 960 1200 1440 1680 1920 2160 2400 2640 2880 3120 3360
Ladder Depth (mm) 1315 1321 1489 1655 1826 1993 2157 2326 2318 2469 2620 2771
Bottom Width (mm) 797 821 862 905 947 989 1032 1075 1115 1157 1199 1241
Weight (kg) - FP/FPZ 28.6/31.1 38.9/41.4 42.3/44.8 46/48.5 51/53.5 54.5/57 58.6/61.1 63.2/65.7 80.6/83.1 86/88.5 92.8/95.3 97.6/100.1
20" (pcs) 74 69 55 48 39 33 29 26 23 19 15 12
40" (pcs) 174 162 128 110 92 78 67 58 50 43 36 30
