Aluminium Ringlock Scaffold

Product Selling Points Basic Parameters Certifications

Aluminium Ringlock Scaffold
1. Premium Tube Specification
48.4mm diameter, 3.2mm thickness steel tube with a rosette disk every 0.5m on vertical poles, equipped with connecting sleeves at the bottom.

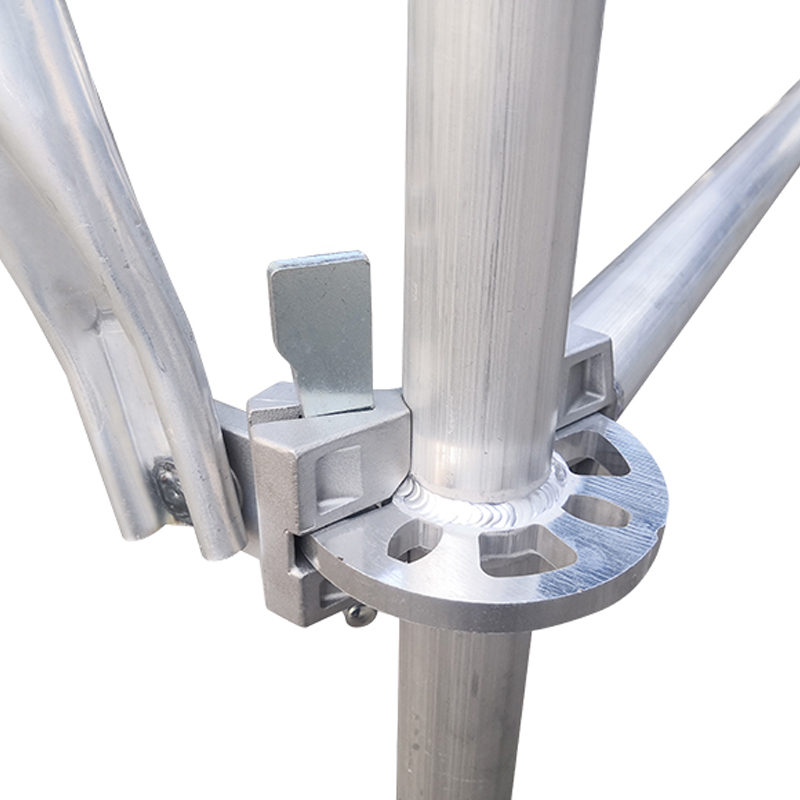

2. 8-Hole Rosette Design
Each disk features 8 connecting holes for strong and flexible assembly.
3. Multi-Functional Structure

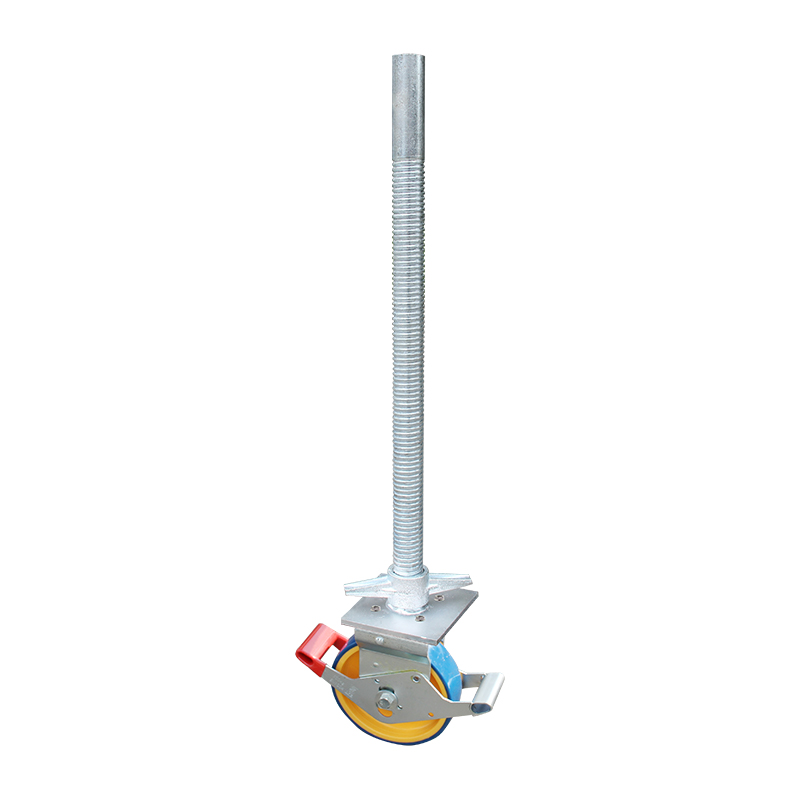

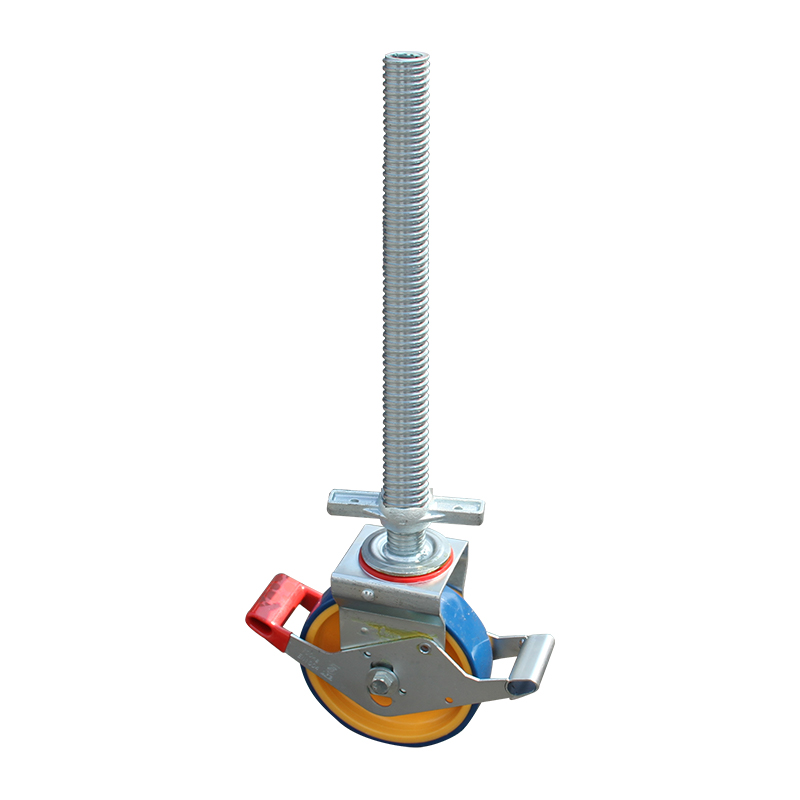

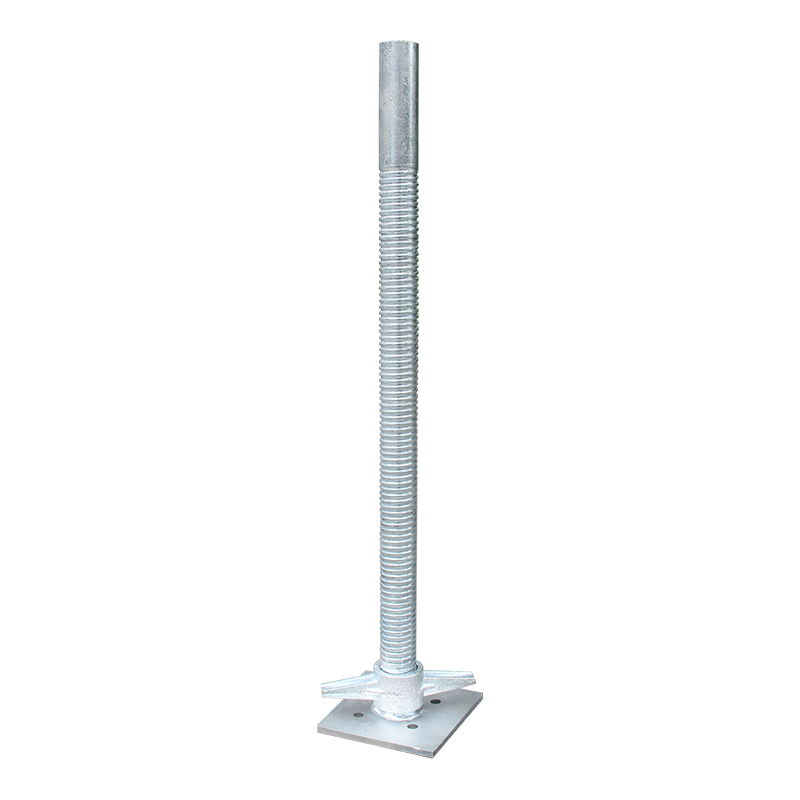

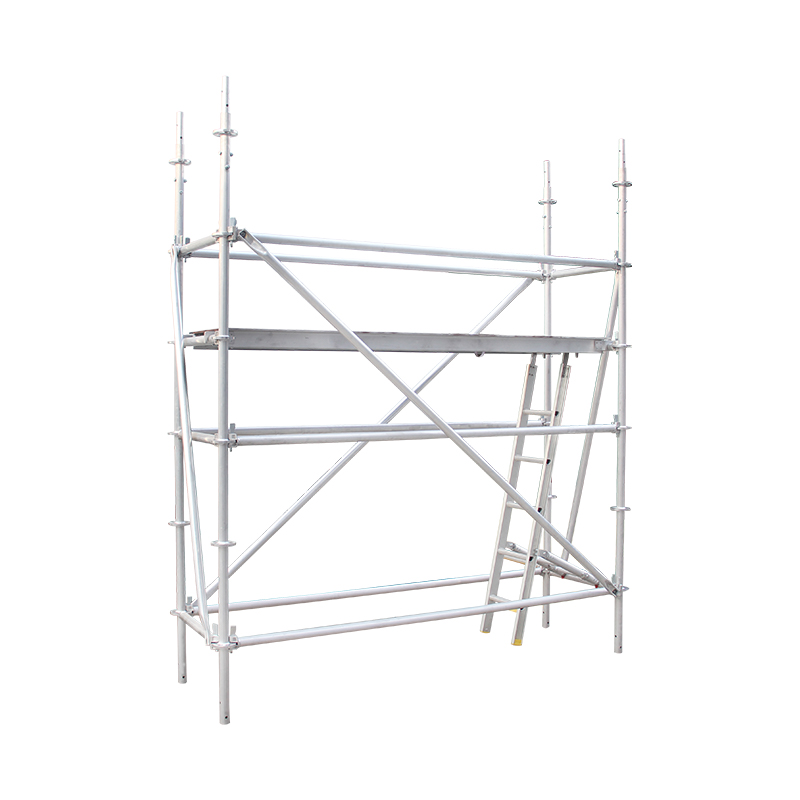

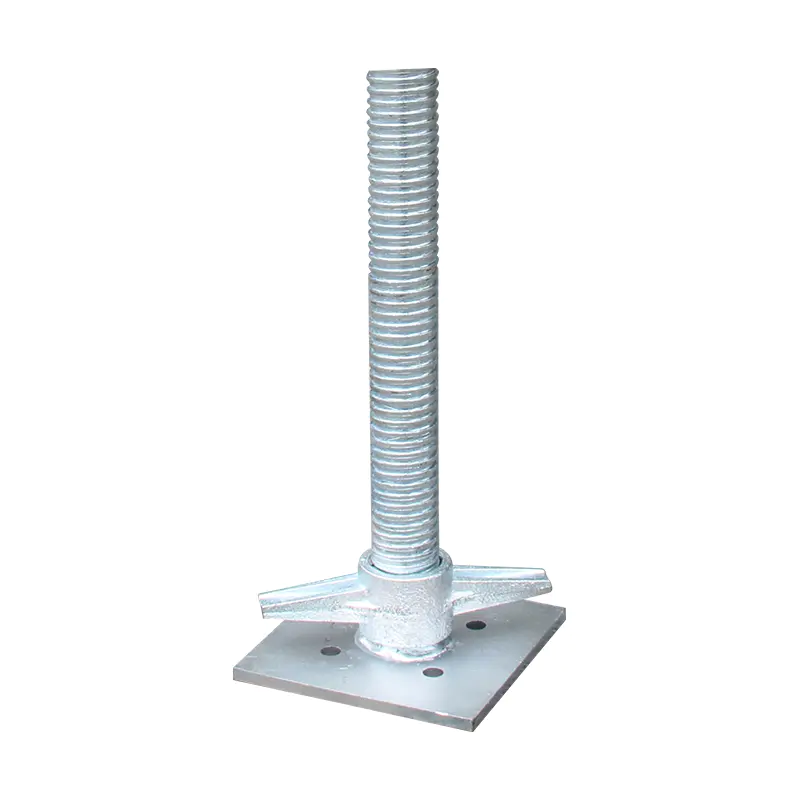

Can be configured as single/double-row scaffolding, support frames, material lifting racks, and curved layouts; compatible with adjustable jacks for various shoring applications.

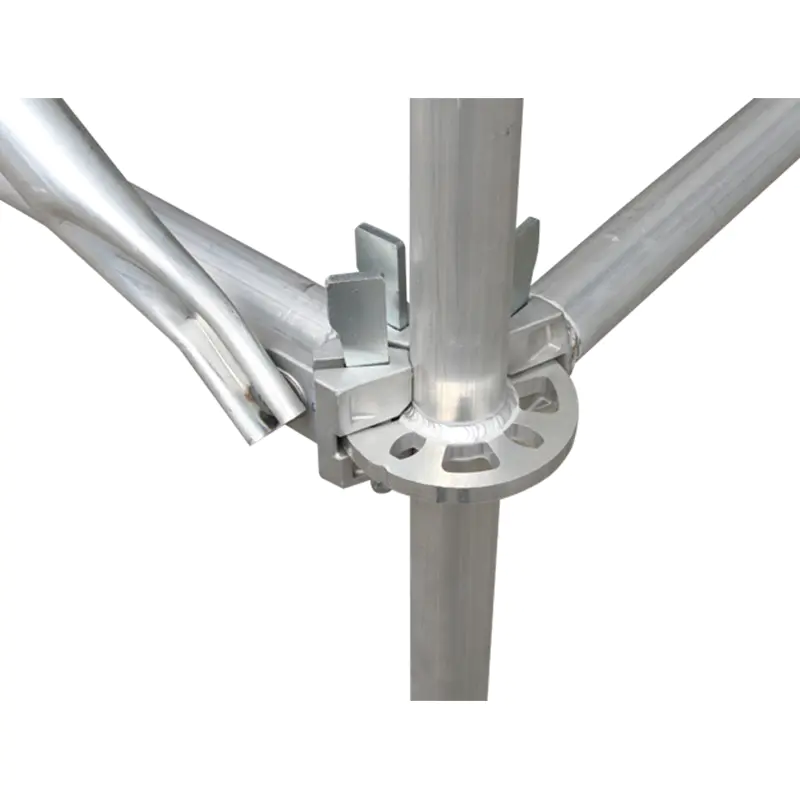

4. Independent Wedge Self-Locking Mechanism
Interlocking and gravity action prevent horizontal pole disengagement even if not fully hammered; large contact area enhances bending resistance and avoids pole deflection.
5. Wide Application Range
Suitable for bridges, tunnels, factories, water towers, power plants, refineries, overhead bridges, and storage racks.
6. Ideal for Event & Stage Structures
Widely used for concert stages, background frames, grandstands, and viewing platforms.

Category Model Tube Diameter (mm) Tube Thickness (mm) Length (mm) Width (mm) Product Weight (kg)

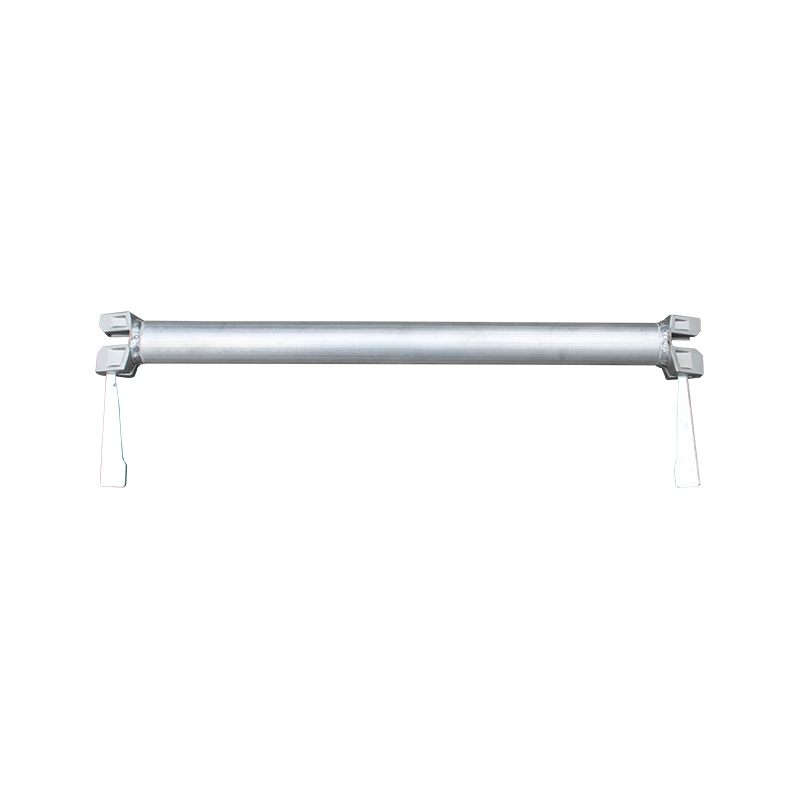

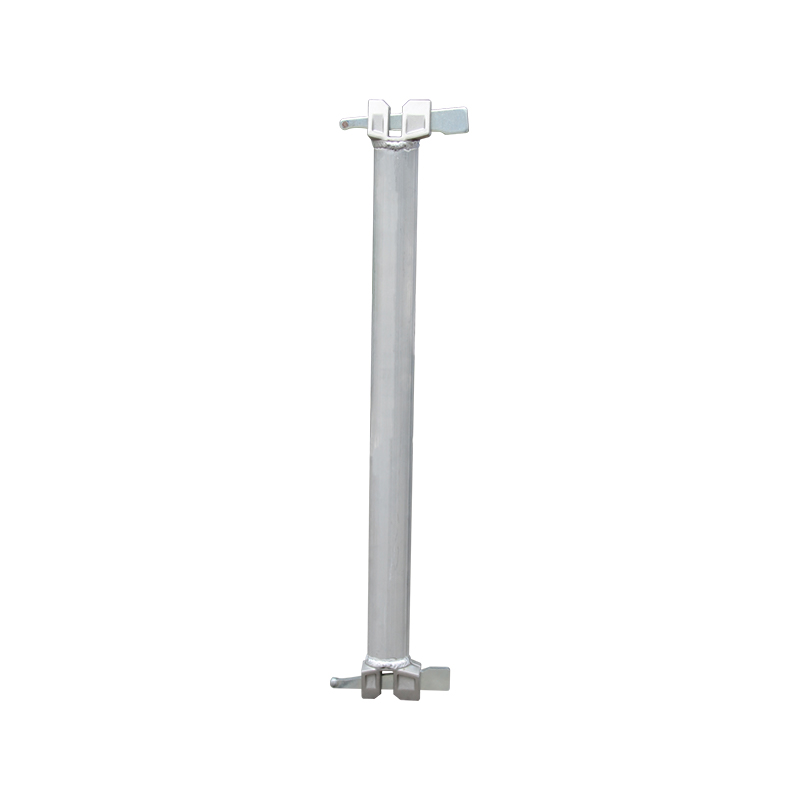

Ledger BS 732 48.4 3.2 732 - 1.4
Ledger BS 1092 48.4 3.2 1092 - 1.9
Ledger BS 1332 48.4 3.2 1332 - 2.4
Ledger BS 1400 48.4 3.2 1400 - 2.7
Ledger BS 2072 48.4 3.2 2072 - 3.1
Ledger BS 2572 48.4 2.6 2572 - 3.6

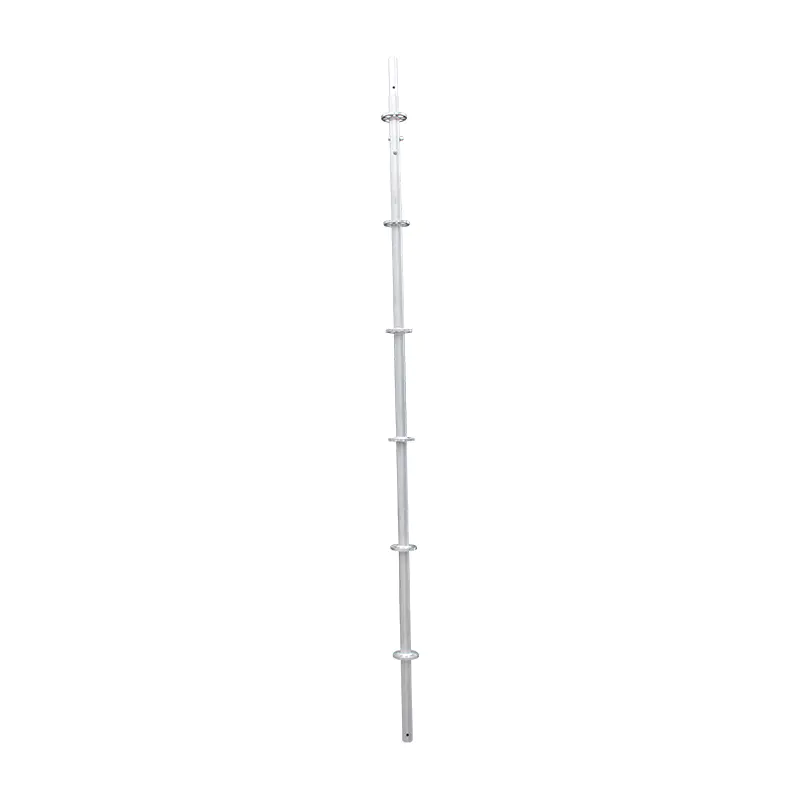

Standard BS 1.0 48.4 3.2 1000 - 1.9
Standard BS 2.0 48.4 3.2 2000 - 3.1
Standard BS 3.0 48.4 3 3000 - 4.4
Standard BS 4.0 48.4 3.2 4000 - 5.8

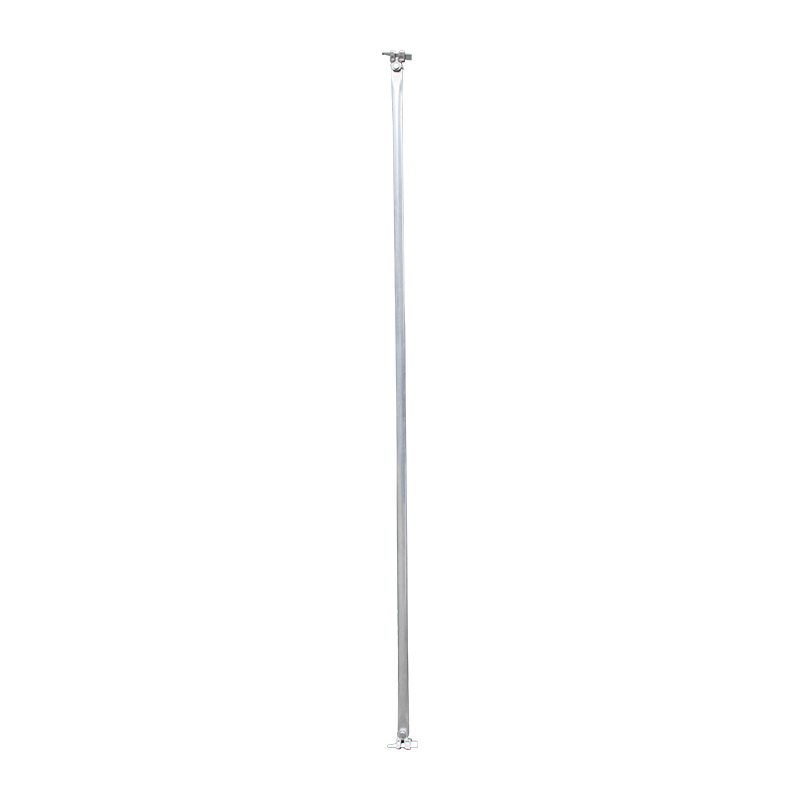

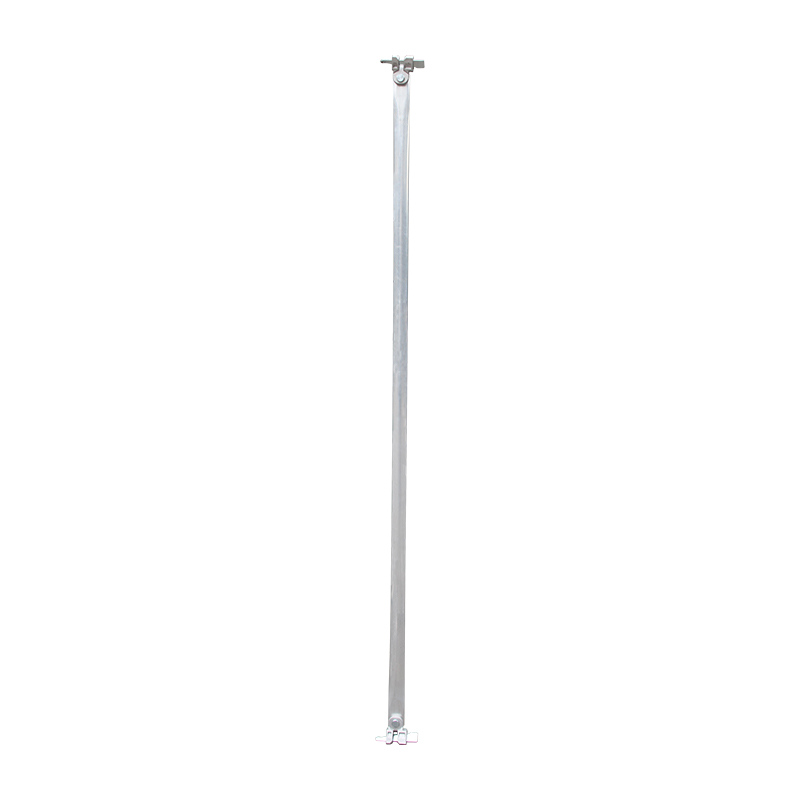

Diagonal Brace BS 732x2000 48.3 2 732 - 2.4
Diagonal Brace BS 1332x2000 48.3 2 1332 - 2.7
Diagonal Brace BS 1572x2000 48.3 2 1572 - 2.8
Diagonal Brace BS 2572x2000 48.3 2 2572 - 3.3

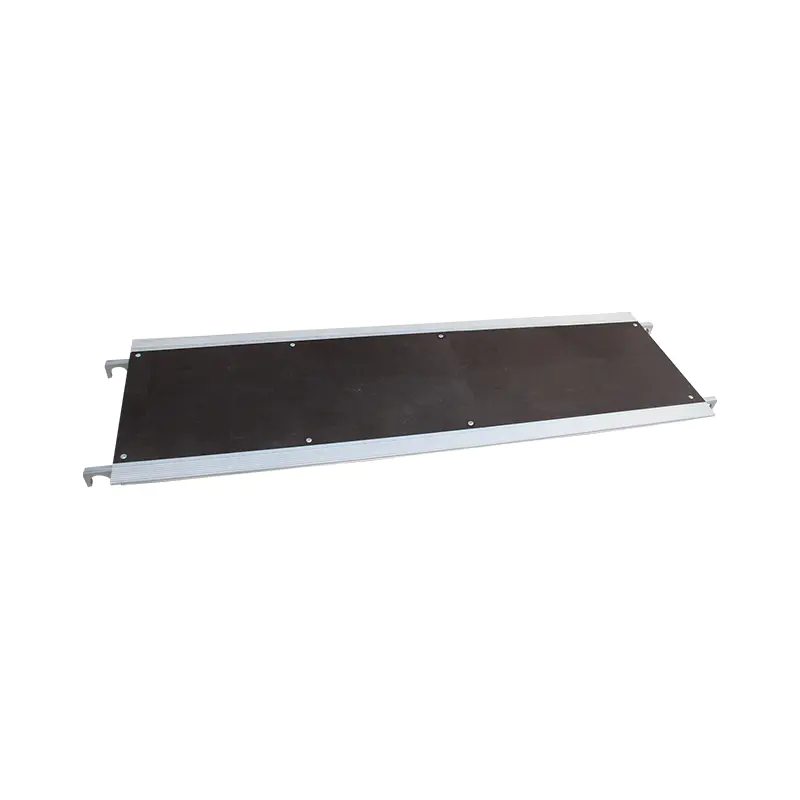

Platform BS-A(P) - - 1400 600 15
Platform BS-B(P) - - 1572 600 16
Platform BS-C(P) - - 2072 600 19
Platform BS-D(P) - - 2572 600 22

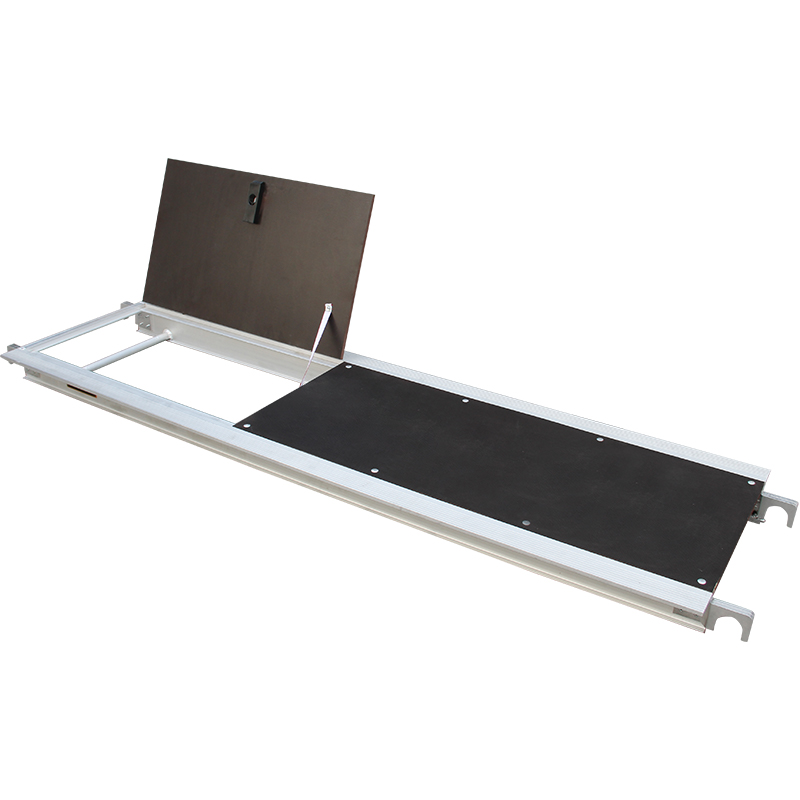

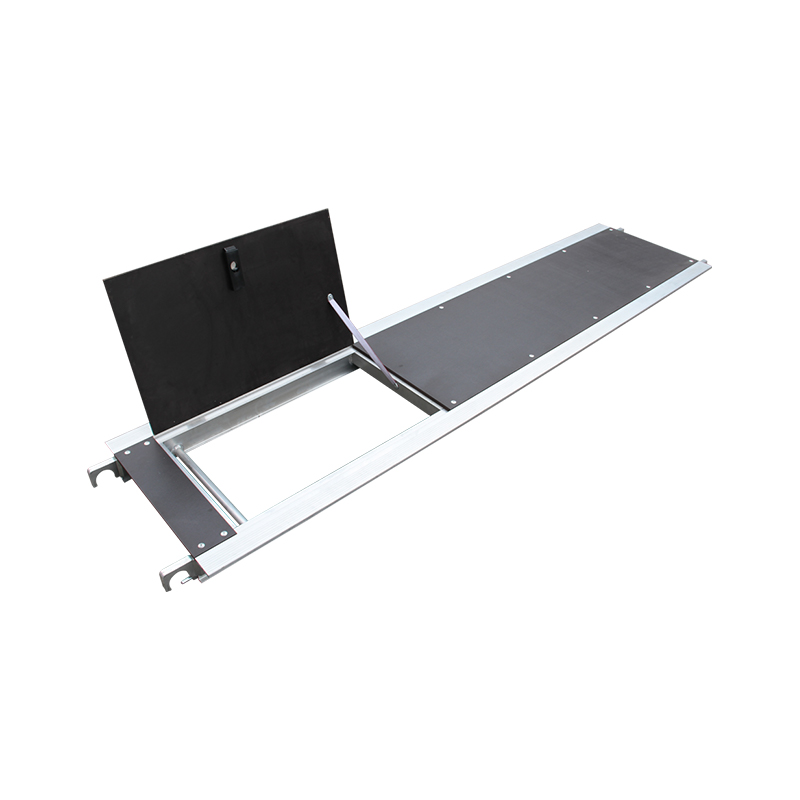

Platform with Hatch BS-A(PH) - - 1400 600 14
Platform with Hatch BS-B(PH) - - 1572 600 15
Platform with Hatch BS-C(PH) - - 2072 600 18
Platform with Hatch BS-D(PH) - - 2572 600 21

Product Manual
Product Details Product Specifications

1. Advanced and Durable Design
The Aluminium Ringlock Scaffold is a highly durable and innovative scaffolding system, also known as the disc-lock or Layher scaffold. It features 48.4mm diameter pipes with 3.2mm thickness, ensuring superior strength and reliability. The system uses discs with 8 holes welded onto vertical rods at 0.5-meter intervals, providing secure and stable connections. This robust design guarantees longevity, even in challenging work environments.

2. Versatile and Modular Functionality
The Aluminium Ringlock Scaffold is highly versatile and can be customized to meet specific construction needs. It allows the assembly of single and double-row scaffolds, support frames, columns, and material hoists, with various load-bearing capabilities. The modular system can also be configured in curved layouts, providing flexibility for a wide range of construction and engineering projects, from simple tasks to complex structures.

3. Self-locking Mechanism for Added Safety
The scaffold features a unique self-locking mechanism using independent wedges, ensuring that even if the pin is not fully tightened, the horizontal bar’s plug remains securely in place. This design enhances safety by preventing accidental disassembly and increasing structural stability. Additionally, the large contact area between the clamps and the rods improves the bending strength of the aluminum tubes, ensuring that the scaffolding remains rigid and stable under load.

4. Wide Application in Multiple Industries

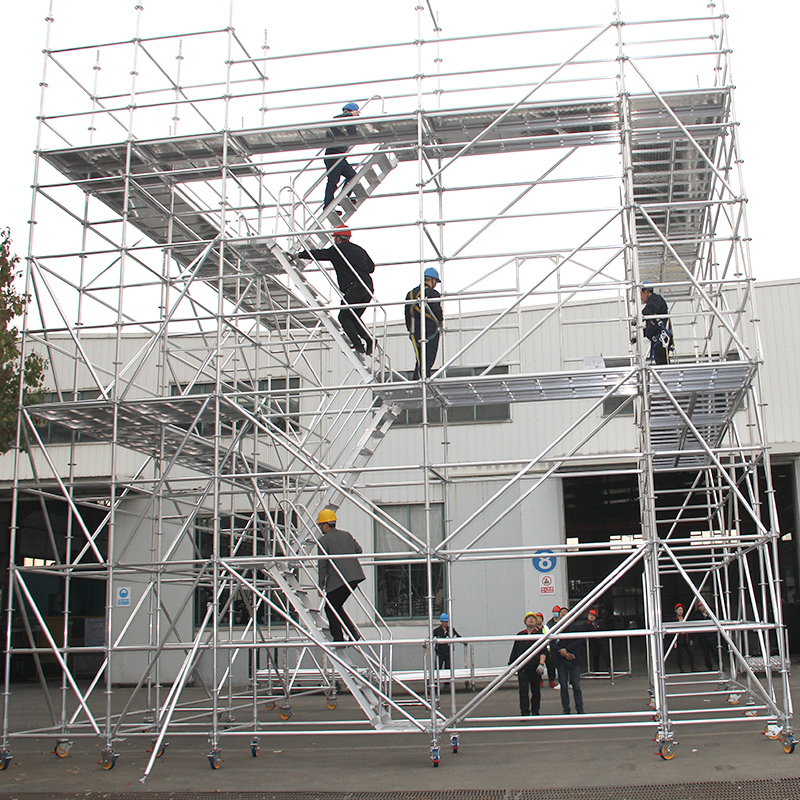

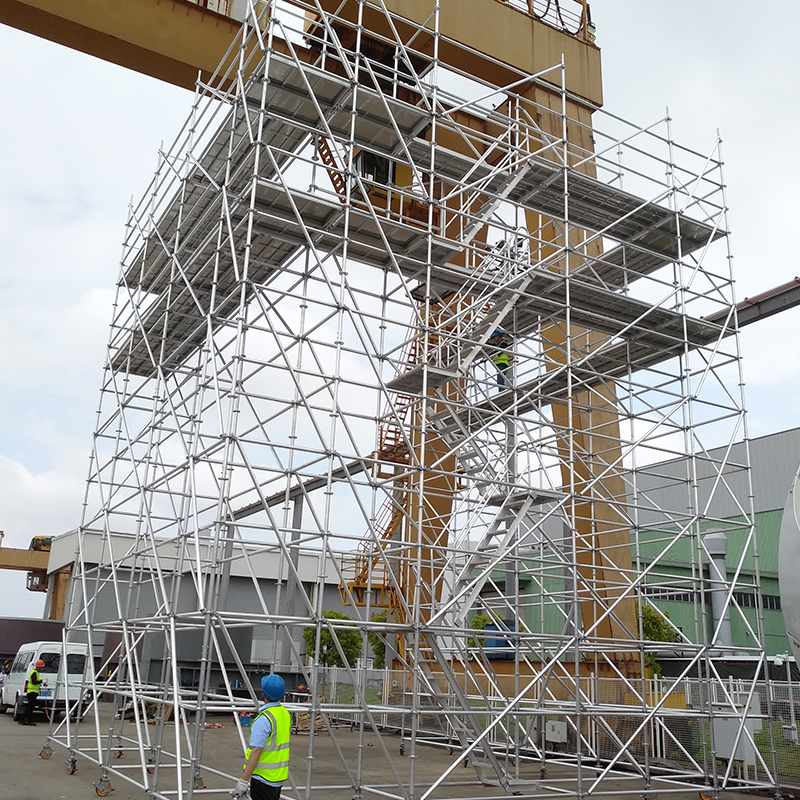

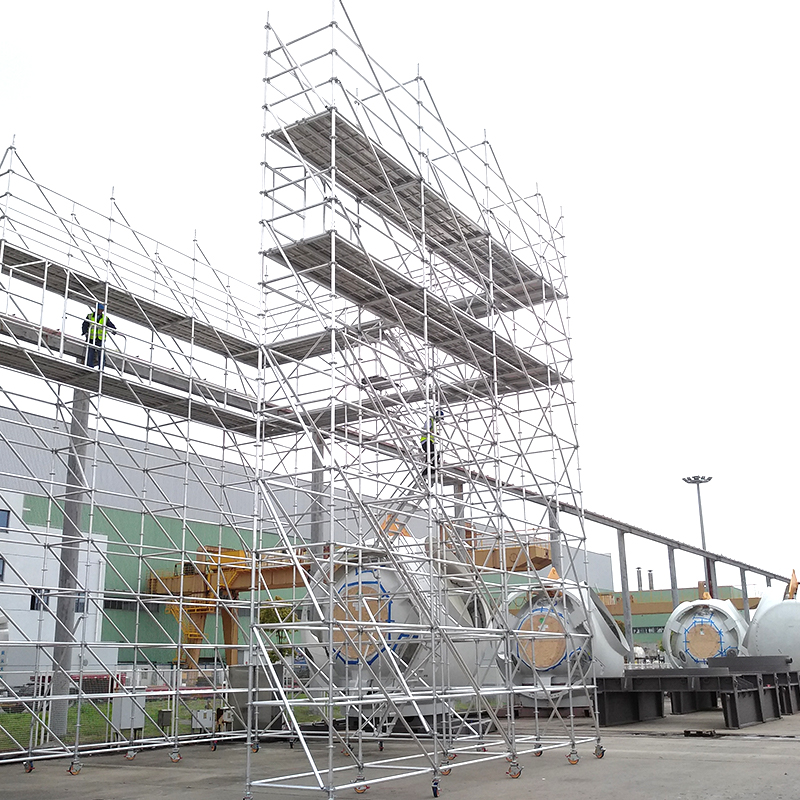

The Aluminium Ringlock Scaffold is widely used in various industries, including bridge and tunnel construction, factories, elevated water towers, power plants, and refineries. It is also ideal for pedestrian overpasses, shelving systems, and temporary structures. Beyond industrial applications, this scaffold is frequently employed in the construction of large event stages, backdrops, stands, and spectator seating for cultural, entertainment, and sports venues, providing a stable platform for a variety of uses.

Category Model Tube Diameter (mm) Tube Thickness (mm) Length (mm) Width (mm) Product Weight (kg)
Ledger BS 732 48.4 3.2 732 - 1.4
Ledger BS 1092 48.4 3.2 1092 - 1.9
Ledger BS 1332 48.4 3.2 1332 - 2.4
Ledger BS 1400 48.4 3.2 1400 - 2.7
Ledger BS 2072 48.4 3.2 2072 - 3.1
Ledger BS 2572 48.4 2.6 2572 - 3.6
Standard BS 1.0 48.4 3.2 1000 - 1.9
Standard BS 2.0 48.4 3.2 2000 - 3.1
Standard BS 3.0 48.4 3 3000 - 4.4
Standard BS 4.0 48.4 3.2 4000 - 5.8
Diagonal Brace BS 732x2000 48.3 2 732 - 2.4
Diagonal Brace BS 1332x2000 48.3 2 1332 - 2.7
Diagonal Brace BS 1572x2000 48.3 2 1572 - 2.8
Diagonal Brace BS 2572x2000 48.3 2 2572 - 3.3
Platform BS-A(P) - - 1400 600 15
Platform BS-B(P) - - 1572 600 16
Platform BS-C(P) - - 2072 600 19
Platform BS-D(P) - - 2572 600 22
Platform with Hatch BS-A(PH) - - 1400 600 14
Platform with Hatch BS-B(PH) - - 1572 600 15
Platform with Hatch BS-C(PH) - - 2072 600 18
Platform with Hatch BS-D(PH) - - 2572 600 21
Product Image:
  • Multi-Functional Aluminium Ringlock Scaffold
  • Multi-Functional Aluminium Ringlock Scaffold
  • Multi-Functional Aluminium Ringlock Scaffold
  • Multi-Functional Aluminium Ringlock Scaffold
  • Multi-Functional Aluminium Ringlock Scaffold
  • Multi-Functional Aluminium Ringlock Scaffold
  • Multi-Functional Aluminium Ringlock Scaffold
  • Multi-Functional Aluminium Ringlock Scaffold
