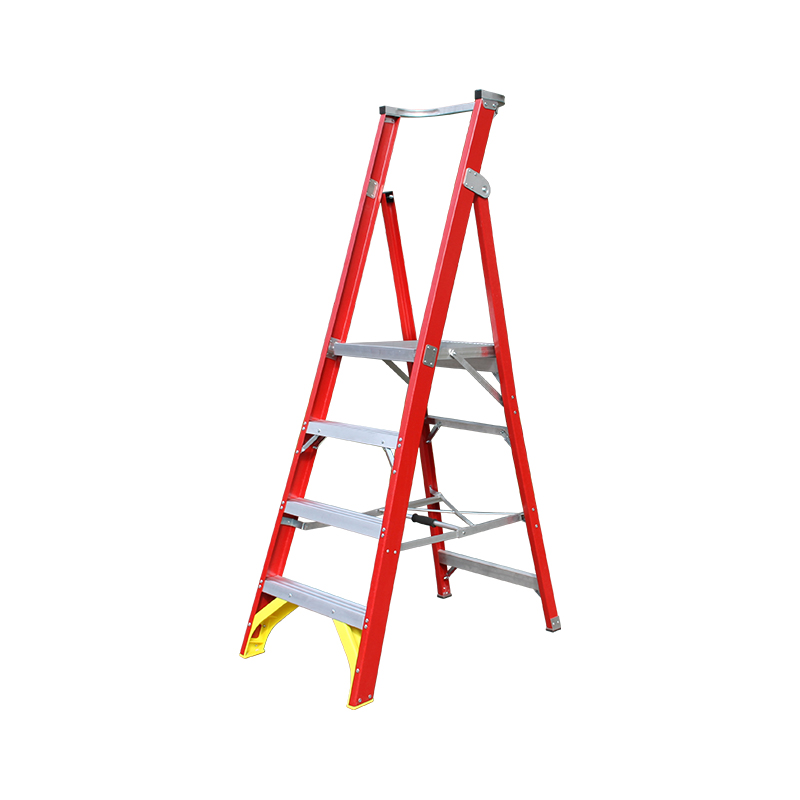

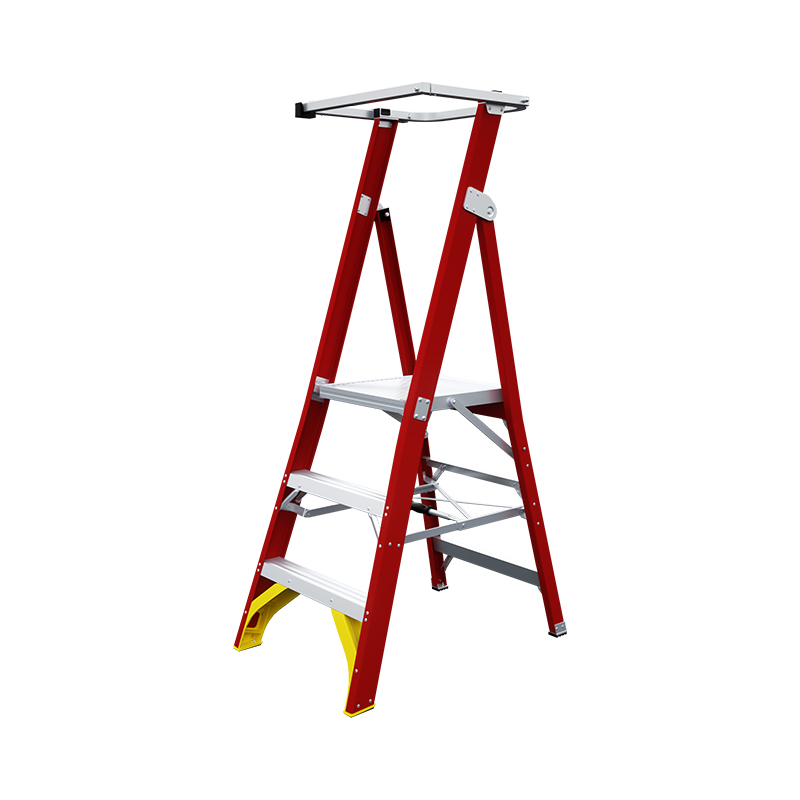

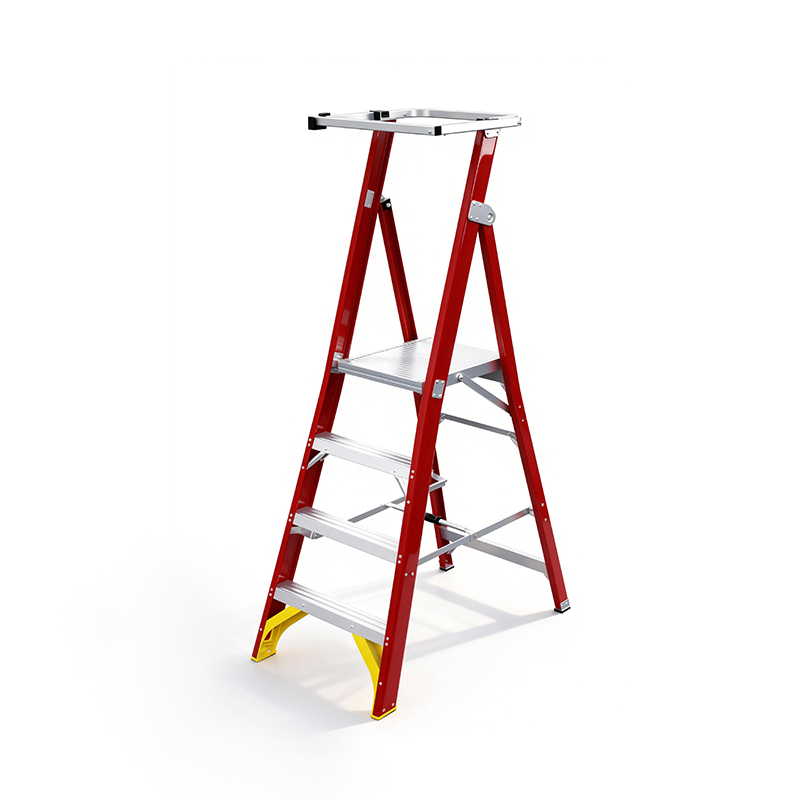

Fiberglass Platform Ladder

Product Selling Points Basic Parameters Certifications

Lightweight performance Fiberglass Platform Ladder
1. Fiberglass Frame
Lightweight, sturdy and high stability.
2. Extra-Large Top Platform & High Handrail
Spacious standing area for safer working.
3. Integrated Linkage & Triangular Braces
Secure folding and enhanced structural stability.
4. Optional Swivel Casters
Easy movement for more efficient operation.

Model-FSZDT	870A	1160A	1450A	1740A	2030A	870B	1160B	1450B	1740B	2030B
Steps	3	4	5	6	7	3	4	5	6	7
Handrail Height (mm)	908	908	908	908	908	908	908	908	908	908
Platform Height (mm)	870	1160	1450	1740	2030	870	1160	1450	1740	2030
Bottom Width (mm)	649	686	729	771	814	649	686	729	771	814

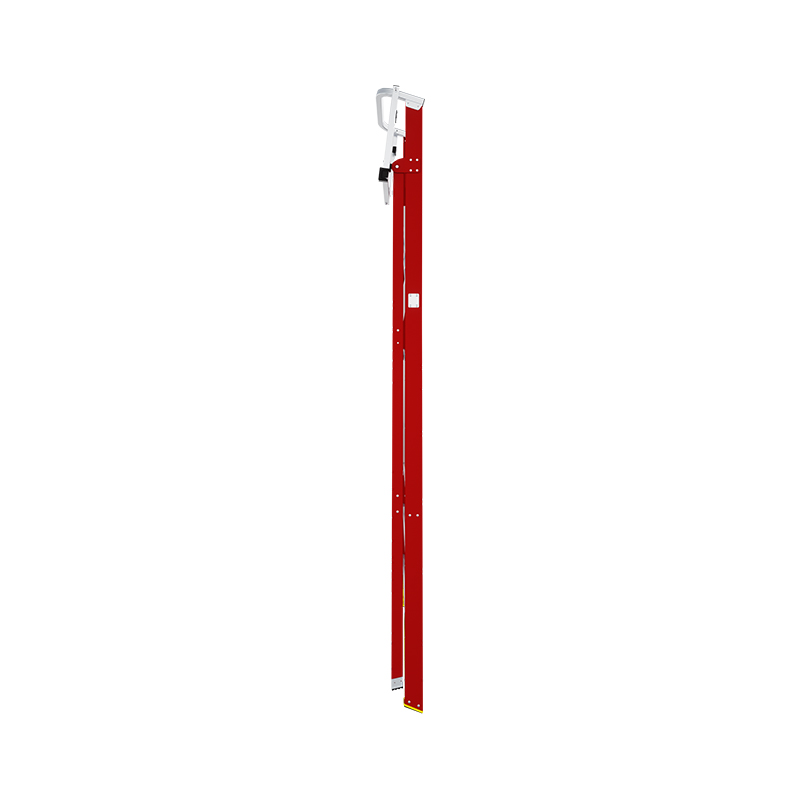

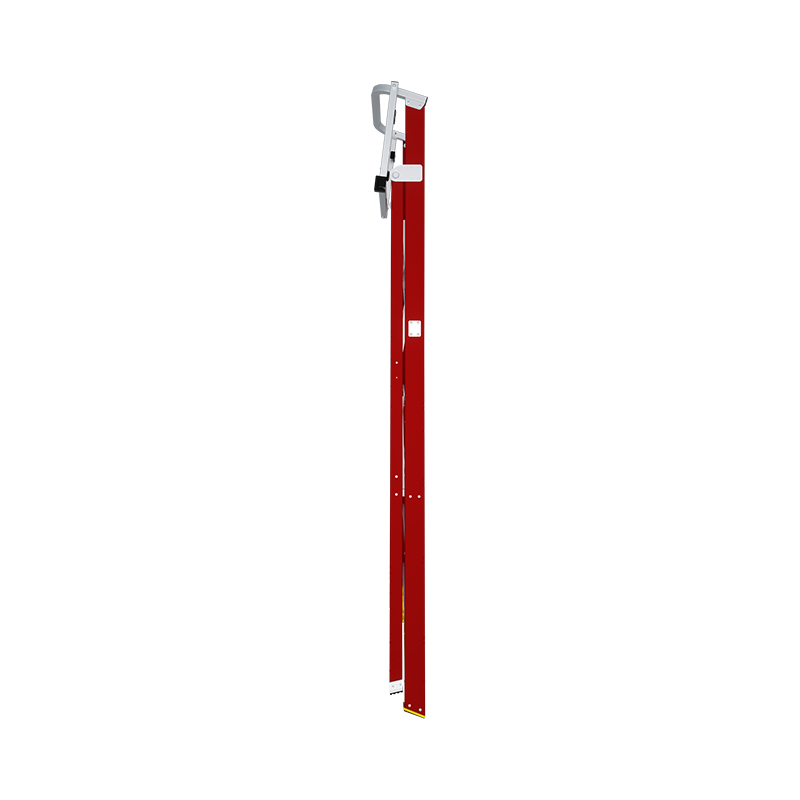

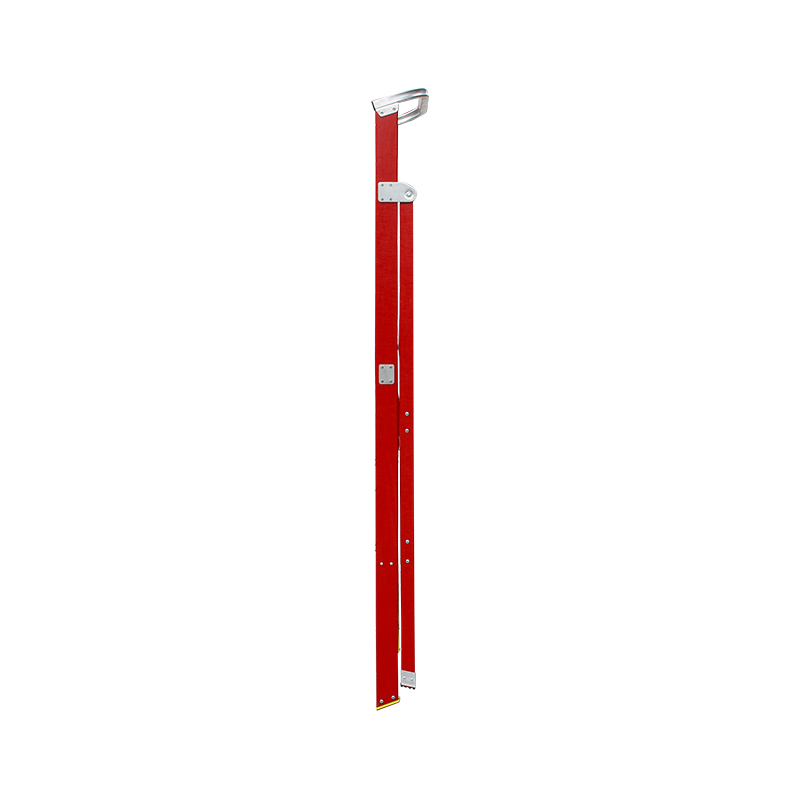

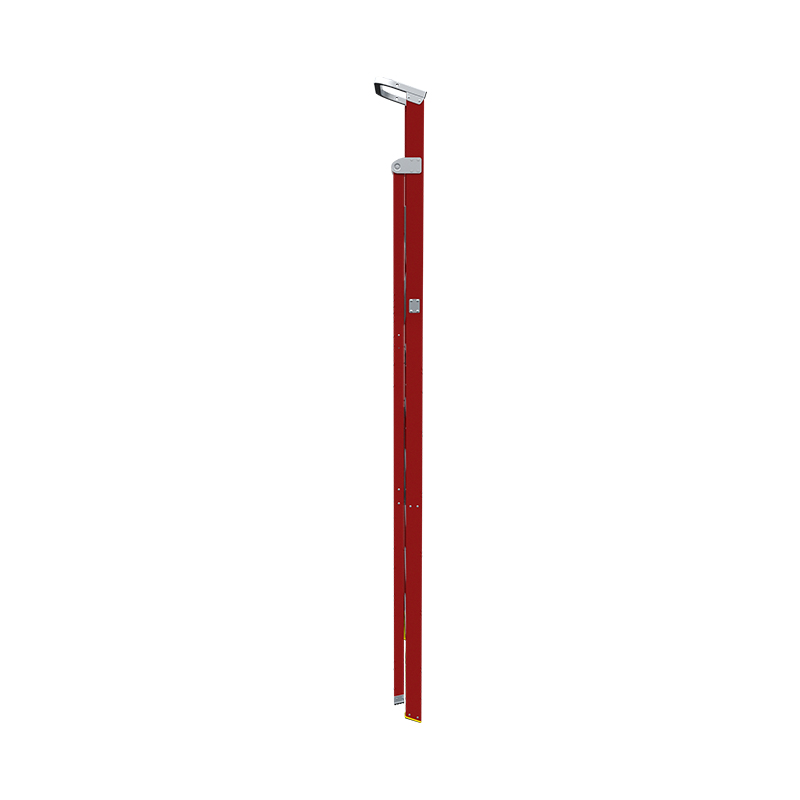

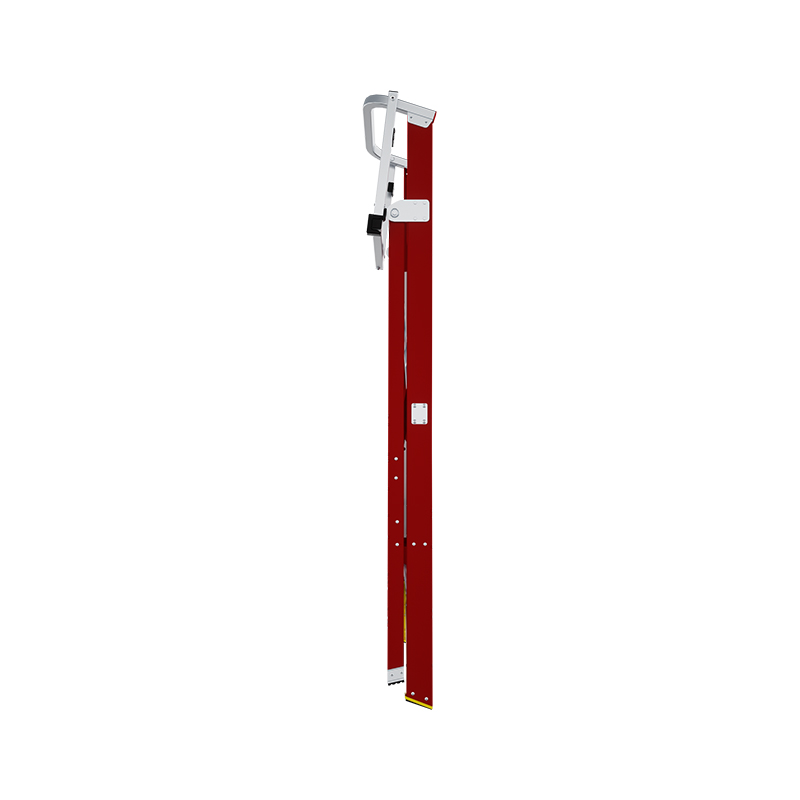

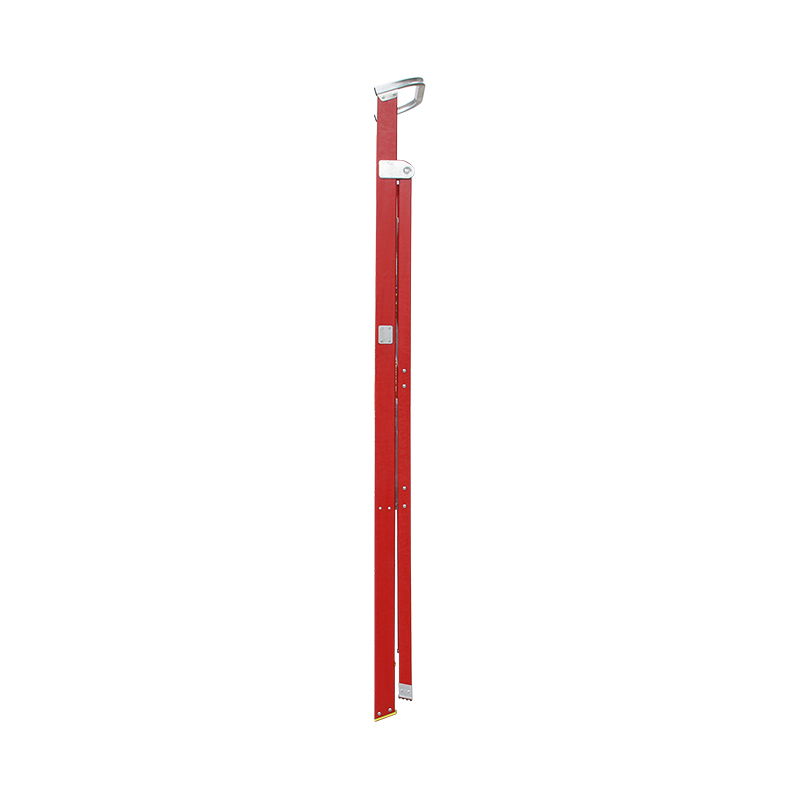

Folded Length (mm)	1937	2242	2544	2853	3156	1937	2242	2544	2853	3156
Folded Thickness (mm)	239	239	239	239	239	239	239	239	239	239
Weight (kg)	12.5	13.8	15.1	16.5	17.8	12.5	13.8	15.1	16.5	17.8
20" (pcs)	112	94	81	71	61	112	94	81	71	61
40" (pcs)	262	219	189	166	142	262	219	189	166	142

Product Model:

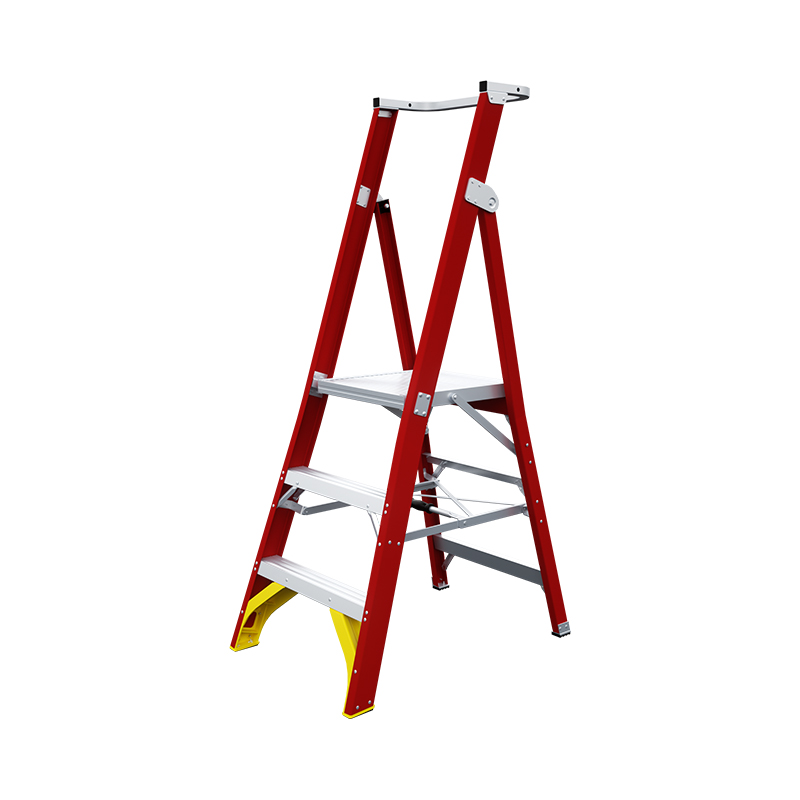

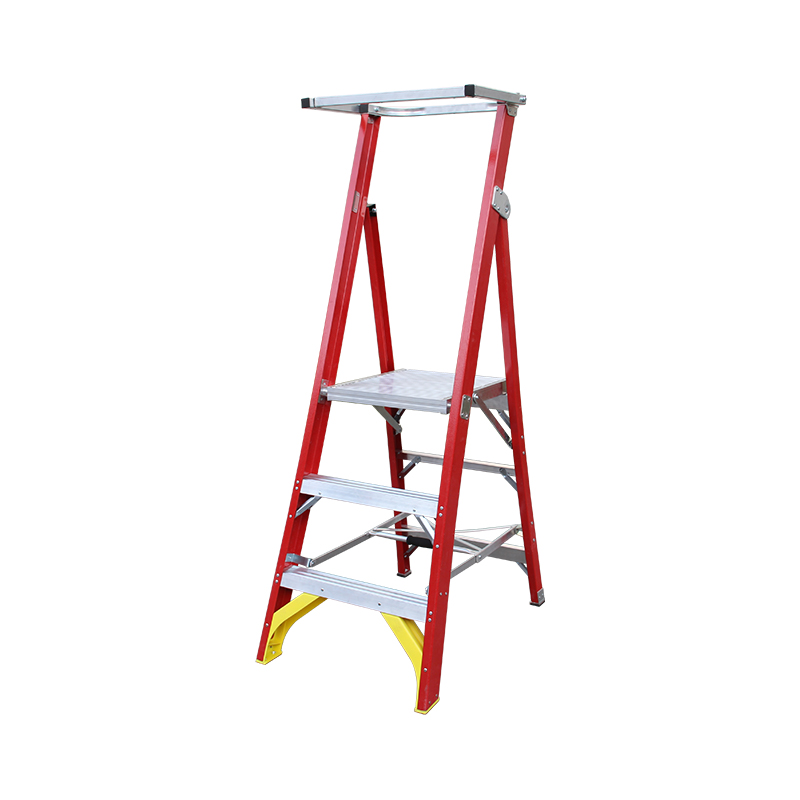

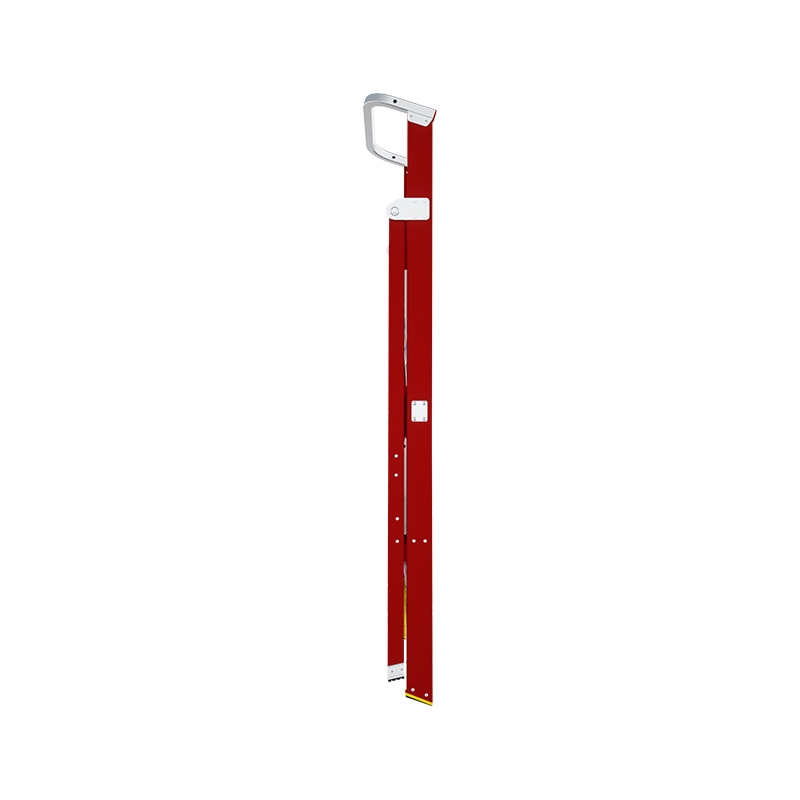

FSZDT-870A

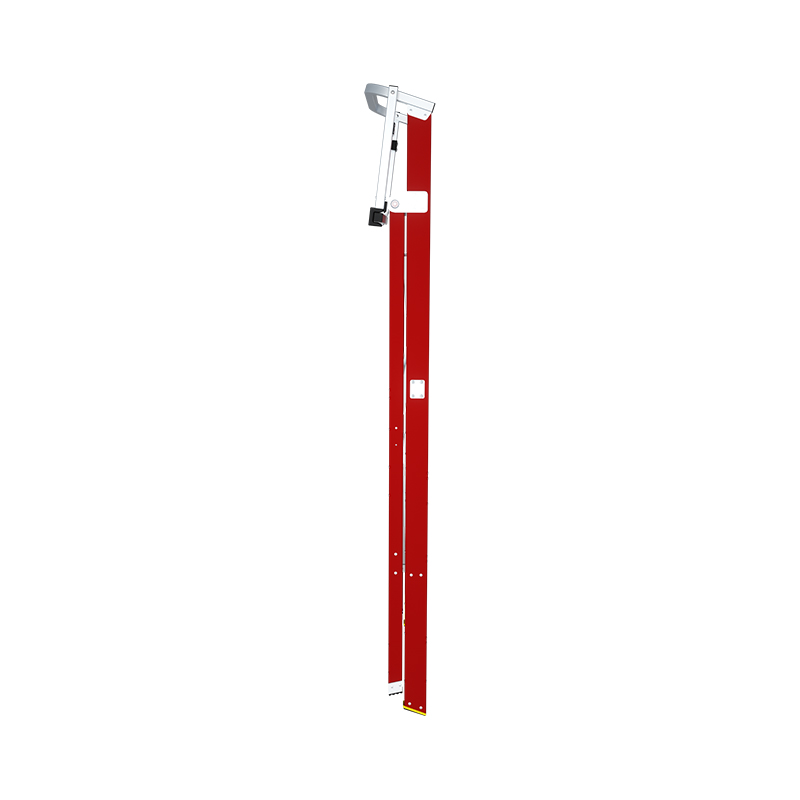

FSZDT-1160A

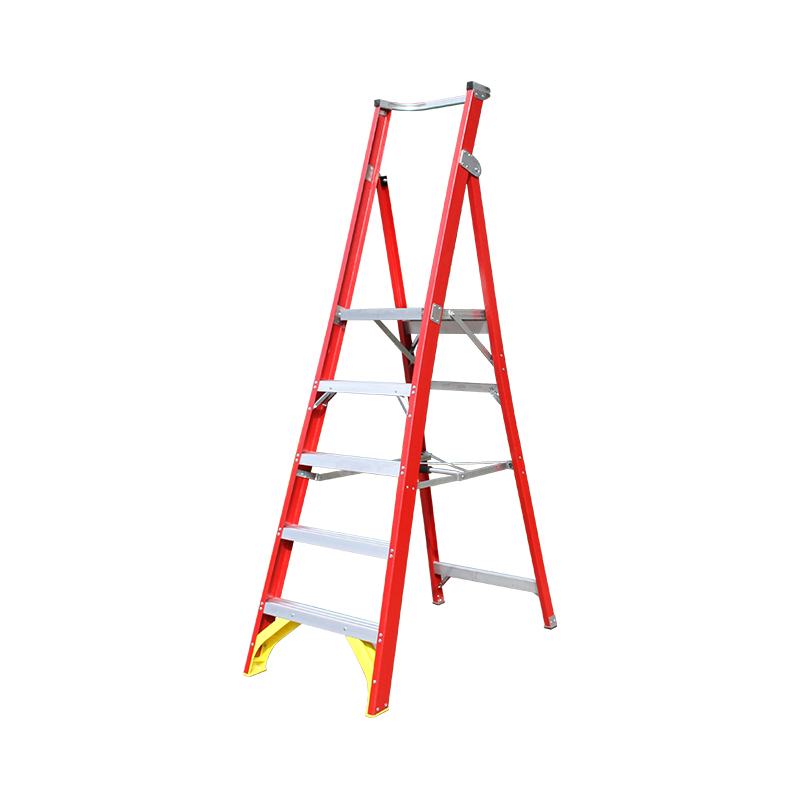

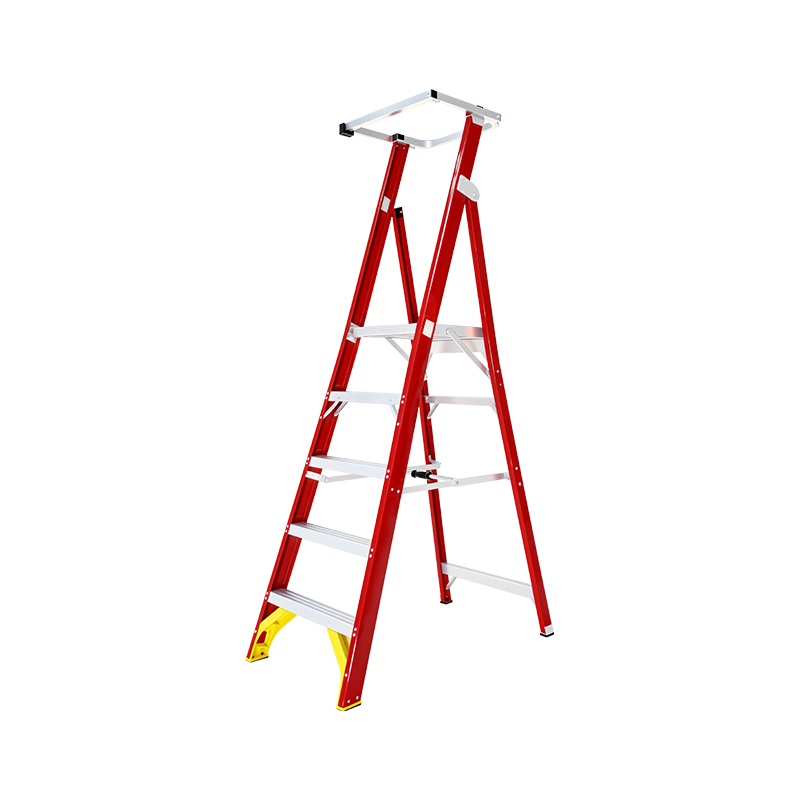

FSZDT-1450A

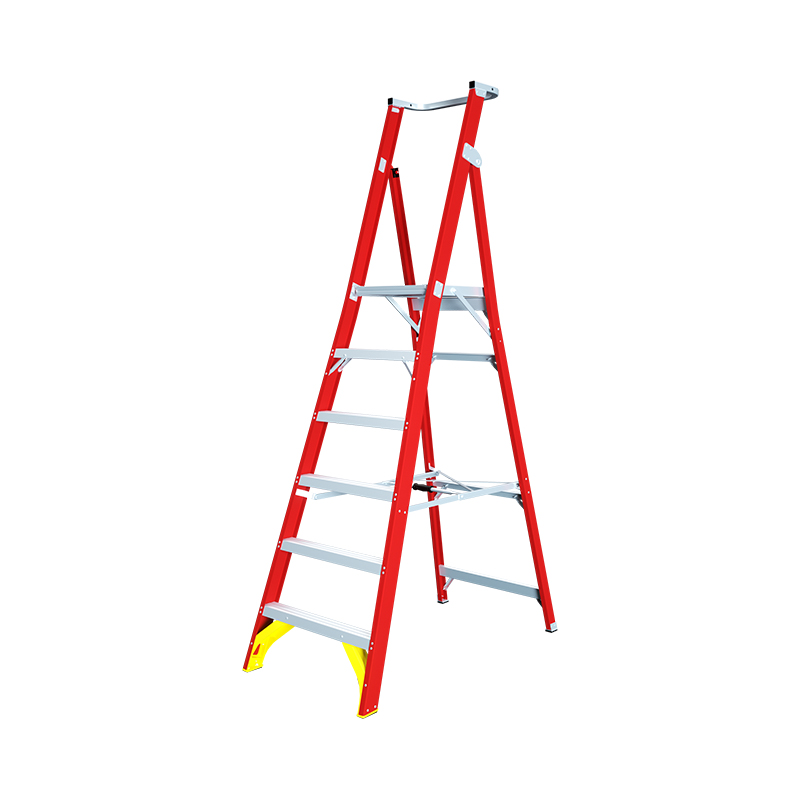

FSZDT-1740A

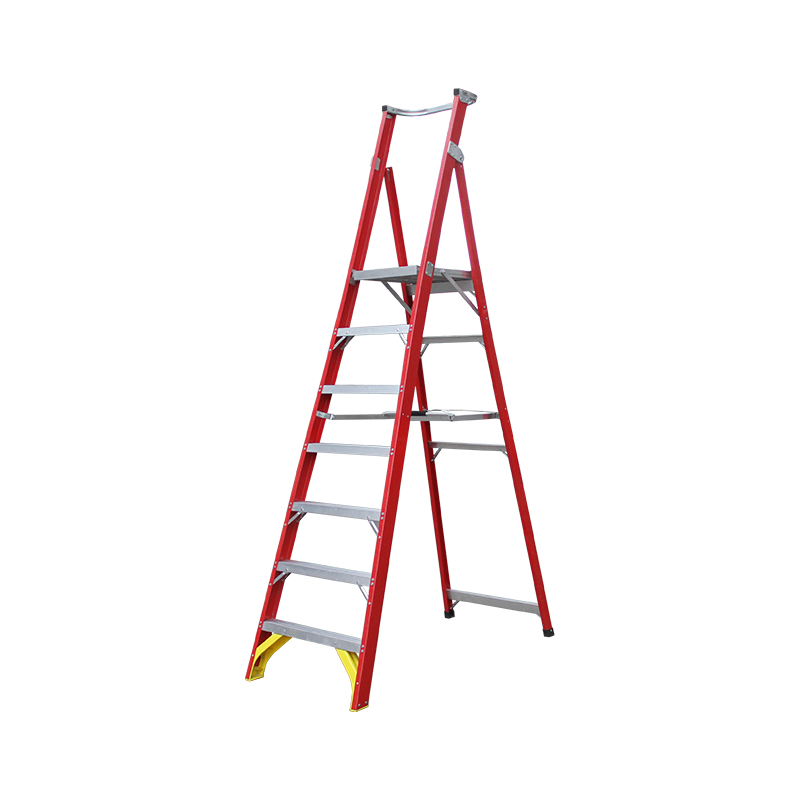

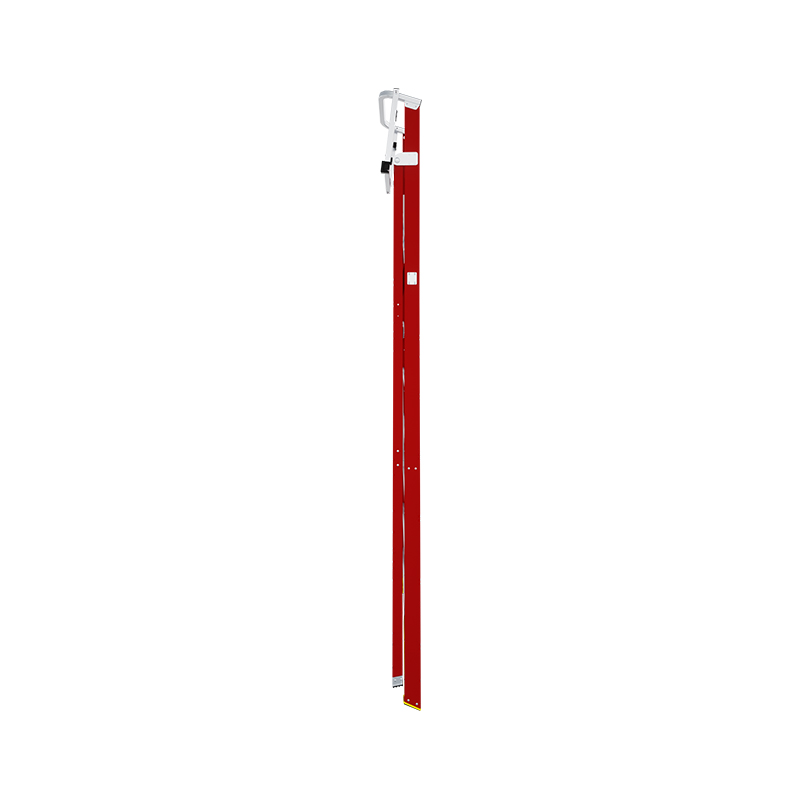

FSZDT-2030A
FSZDT-870B

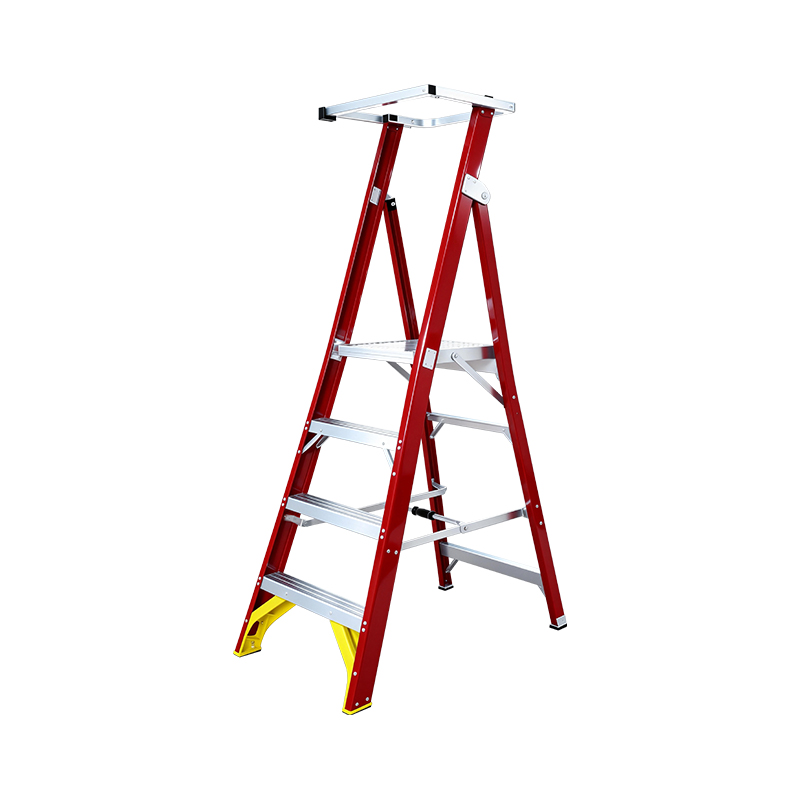

FSZDT-1160B
FSZDT-1450B

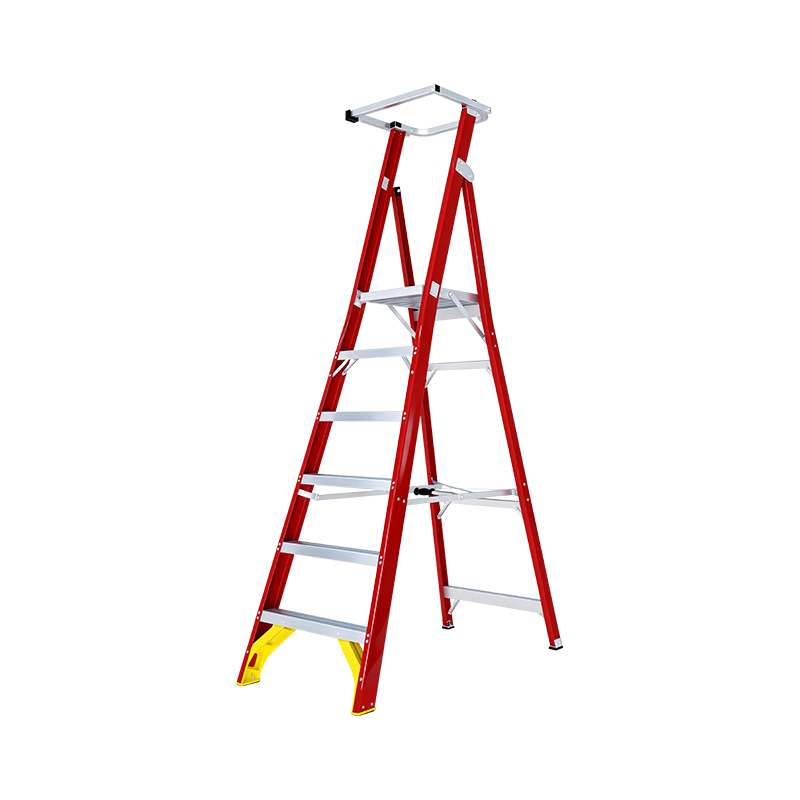

FSZDT-1740B

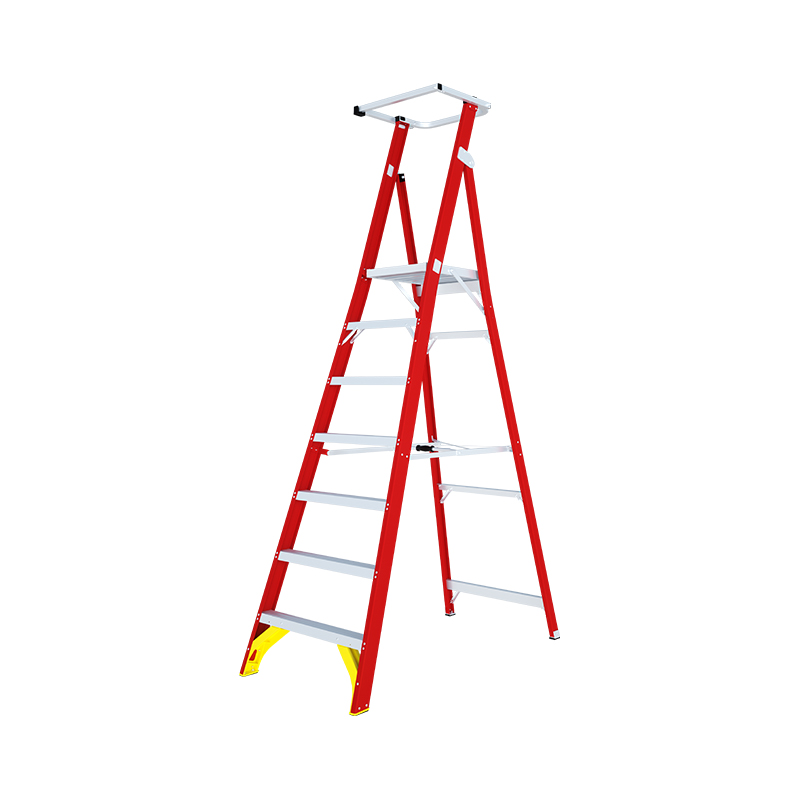

FSZDT-2030B

Product Manual

Product Details Product Specifications

1. Lightweight and Stable Fiberglass Frame
The Fiberglass Platform Ladder is constructed from high-quality fiberglass, offering an ideal combination of lightness and structural strength. This ensures users can safely climb and work at height while easily handling and repositioning the ladder as needed.

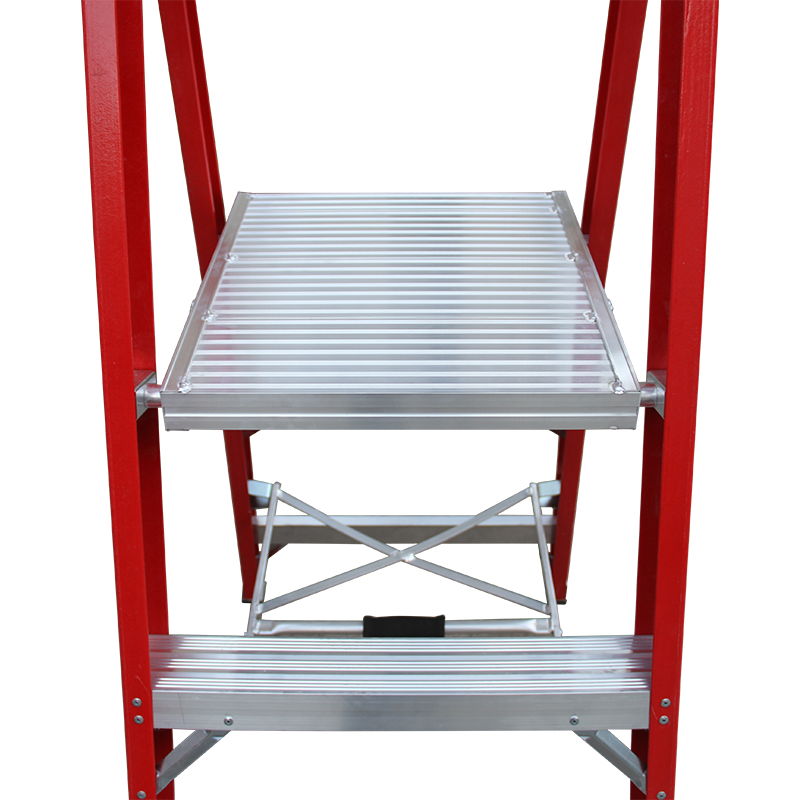

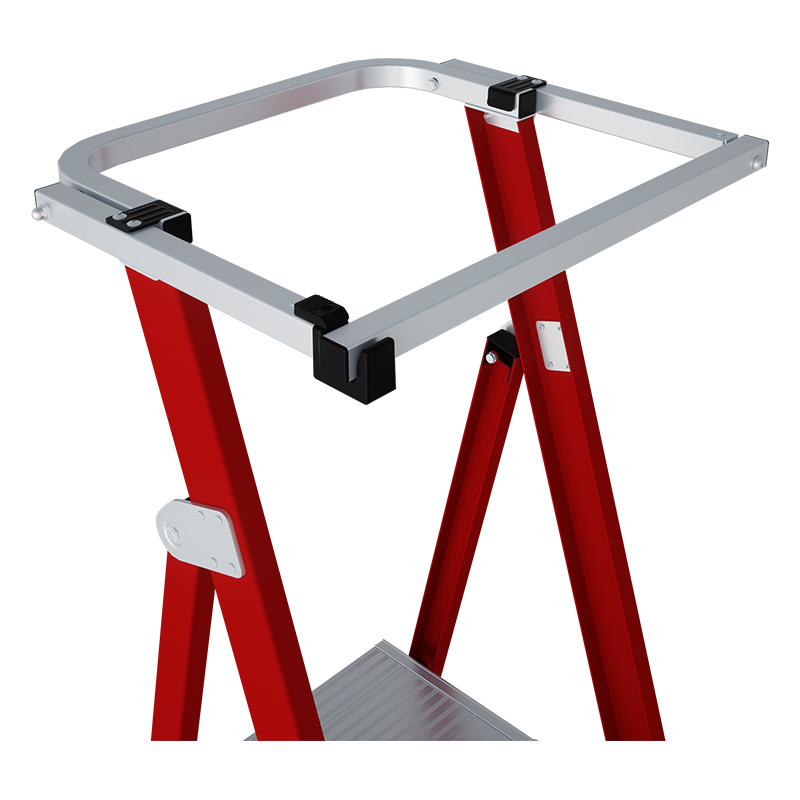

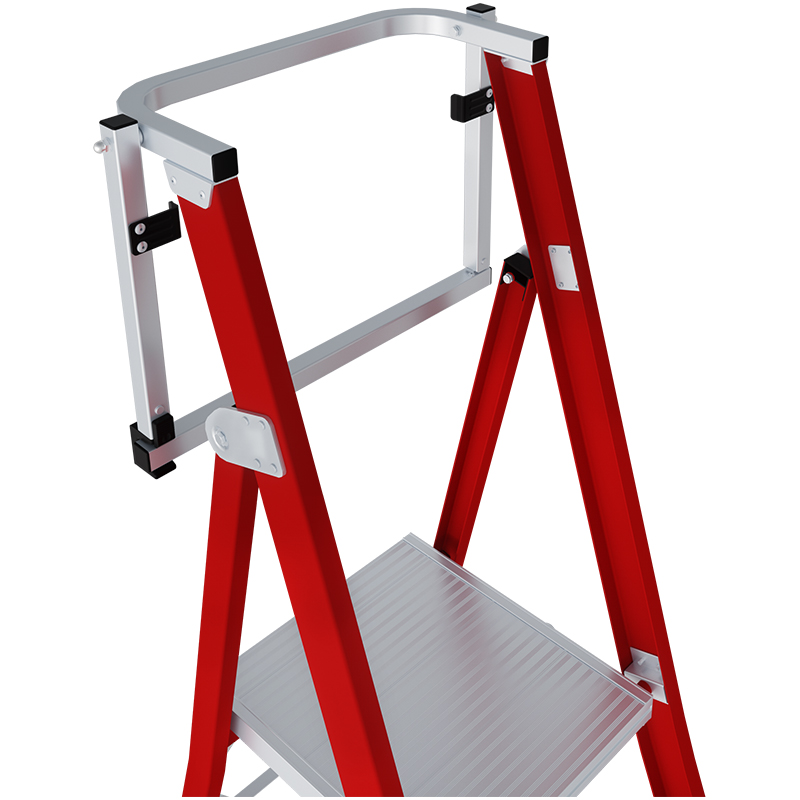

2. Extra-Large Platform with Elevated Handrail
Equipped with a spacious top platform and a high handrail, the ladder provides a secure and comfortable standing area. The larger platform allows users to perform tasks with greater confidence and stability, while the handrail adds extra protection during prolonged work.

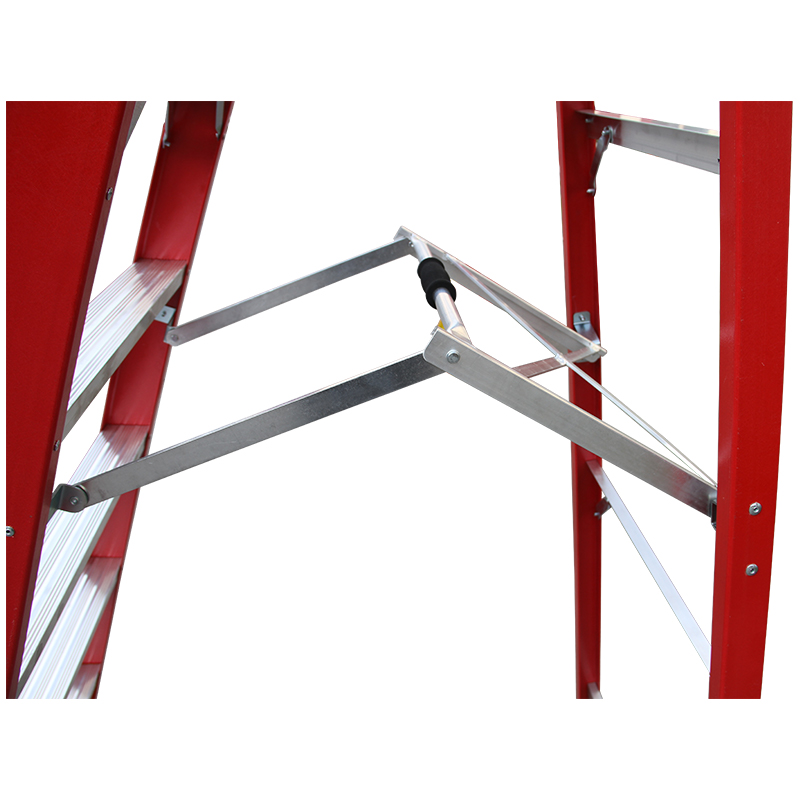

3. Reinforced Triangular Support for Stability
Featuring integrated triangular braces and a link-based folding lock system, the ladder maintains excellent structural stability. This design distributes weight evenly and reduces wobbling, ensuring a steady and safe platform for elevated tasks.

4. Optional Rotating Wheels for Efficient Mobility
The ladder can be fitted with optional swivel wheels, enabling smooth movement and easy repositioning. Ideal for warehouses, factories, maintenance, and logistics operations, this feature increases efficiency and reduces the physical effort required for moving the ladder during work.

Model-FSZDT	870A	1160A	1450A	1740A	2030A	870B	1160B	1450B	1740B	2030B
Steps	3	4	5	6	7	3	4	5	6	7
Handrail Height (mm)	908	908	908	908	908	908	908	908	908	908
Platform Height (mm)	870	1160	1450	1740	2030	870	1160	1450	1740	2030
Bottom Width (mm)	649	686	729	771	814	649	686	729	771	814
Folded Length (mm)	1937	2242	2544	2853	3156	1937	2242	2544	2853	3156
Folded Thickness (mm)	239	239	239	239	239	239	239	239	239	239
Weight (kg)	12.5	13.8	15.1	16.5	17.8	12.5	13.8	15.1	16.5	17.8
20" (pcs)	112	94	81	71	61	112	94	81	71	61
40" (pcs)	262	219	189	166	142	262	219	189	166	142
