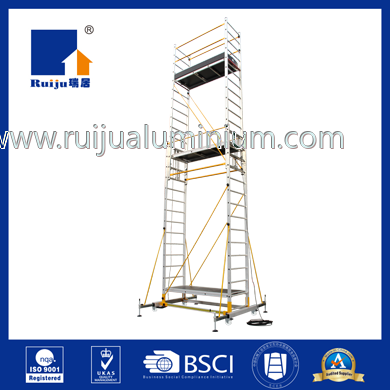

Extension ladder Aluminium Scaffolding

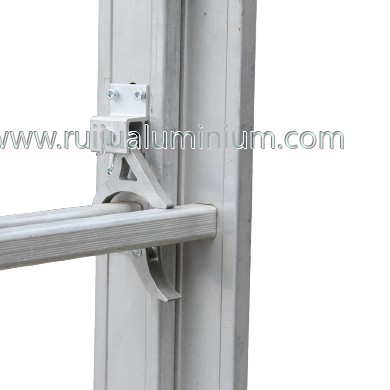

This aluminium scaffold is made of two pieces extension ladders, easily transform from ladder to scaffold work platform. Its height can be easily adjusted with its special hinge system, and it can be used in many areas with its safe, light, easily removable structure.
● Sample available, aluminium scaffold 20ft Models
● MOQ 1set
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express
● Download The Brochure

SEND INQUIRY

Description

Product Description

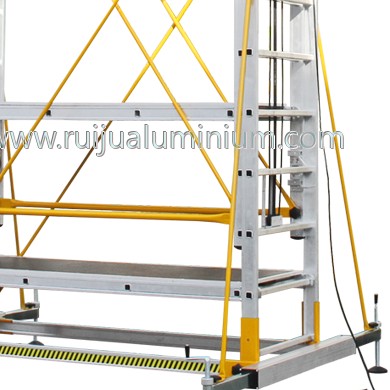

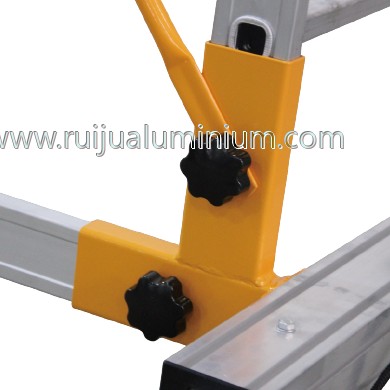

This aluminium scaffold is made of two pieces extension ladders, easily transform from ladder to scaffold work platform. Its height can be easily adjusted with its special hinge system, and it can be used in many areas with its safe, light, easily removable structure. Diagonal and horizontal braces made of steel tubes paint in yellow connect the main ladders of the scaffolding strongly. Excellent for maintenance and other work, the system is useable in tight spaces and in many internal environments.


Product Specifications


ModelTO -3.4m (2*9)TO-4.5m (2*12)TO-5.6m (2*13)TO-6.2m (2*14)
Exterior Size1.8*1.92*4.57 (m)1.8*1.92*5.77 (m)2.21*2.12*6.81 (m)2.21*2.12*7.37 (m)
Platform Height3.4m4.5m5.6m6.2m
Platform Size1.38*0.6 (m)1.38*0.6 (m)1.8*0.6 (m)1.8*0.6 (m)
Product Weight103.5kg122.3kg146.7kg163.9kg
20'' (pcs)32272219
40'' (pcs)80595853
Platform Load Rating230kg


Components List


ModelTO-3.4m (2*9)TO-4.5m (2*12)TO-5.6m (2*13)TO-6.2m (2*14)
Extension Ladder2222
Platform with Hatch1222
               Platform             /               /               /                1

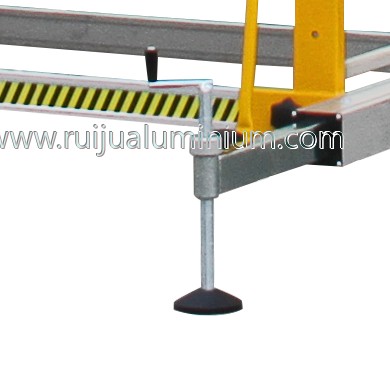

Outrigger

2222
Horizonal Brace8888
Diagonal Brace4444
Support Brace4444
Toeboards1111
Bottom Rail2222

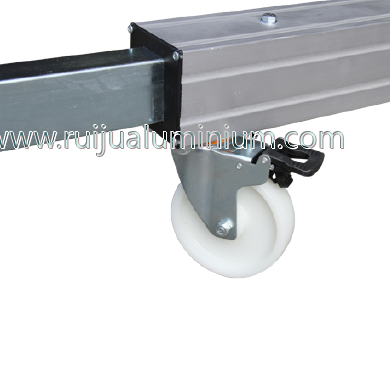

Wheel4444



Product Details














Product Applications






FAQ

Are you a factory or trading company?

Shanghai Ruiju is a professional manufacturer of aluminium ladder, fiberglass ladder, aluminium work platform, aluminium scaffolding, aluminium trolley and other aluminium products custom.

Do you have any certifications?

Yes, our regular items all pass strict tests through National Compulsory Standrards. Exported products are produced and tested according to international standards EN, AS/NZS, ANSI and etc.

What about the shipping package?

Standard packing or as customer's requirements.

Where is your factory located?

We are located in Shanghai, kindly visit us if possible.

What's the difference between you and other manufacturer?

Everything we do is based on safety and quality.

Every fitting, every material and every solution has been examined in the minutest detail and carfully designed to ensure your safety.

We have a group of skilled engineers, technicians and production of high-quality staff, a sound and stringent process practices and IPQC system.

All our products are subjected to regular testing by third party in accordance with current standards. We also regular perform our own tests to make sure our products qualified.
