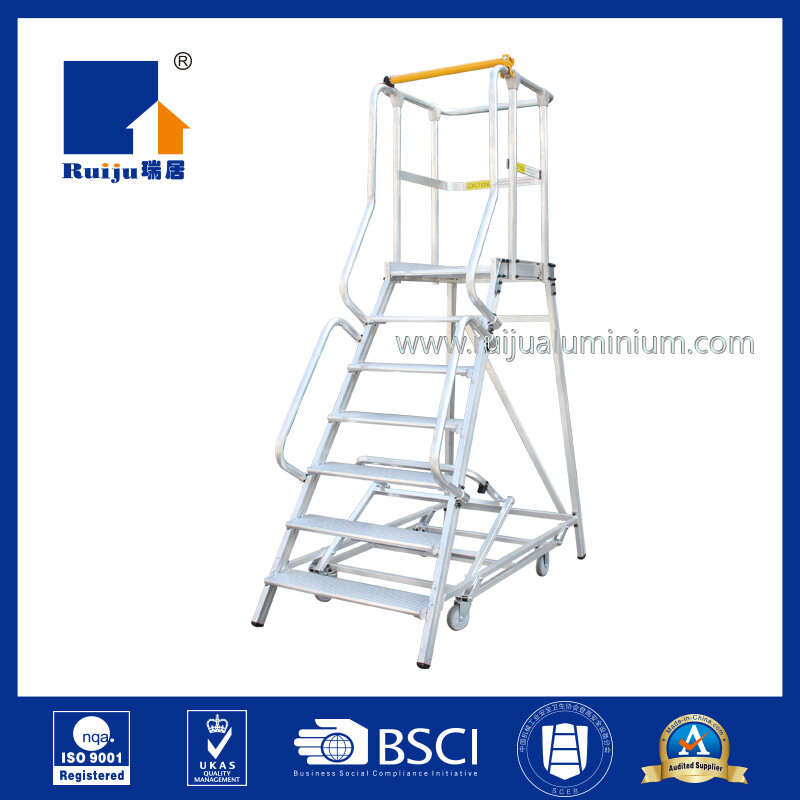

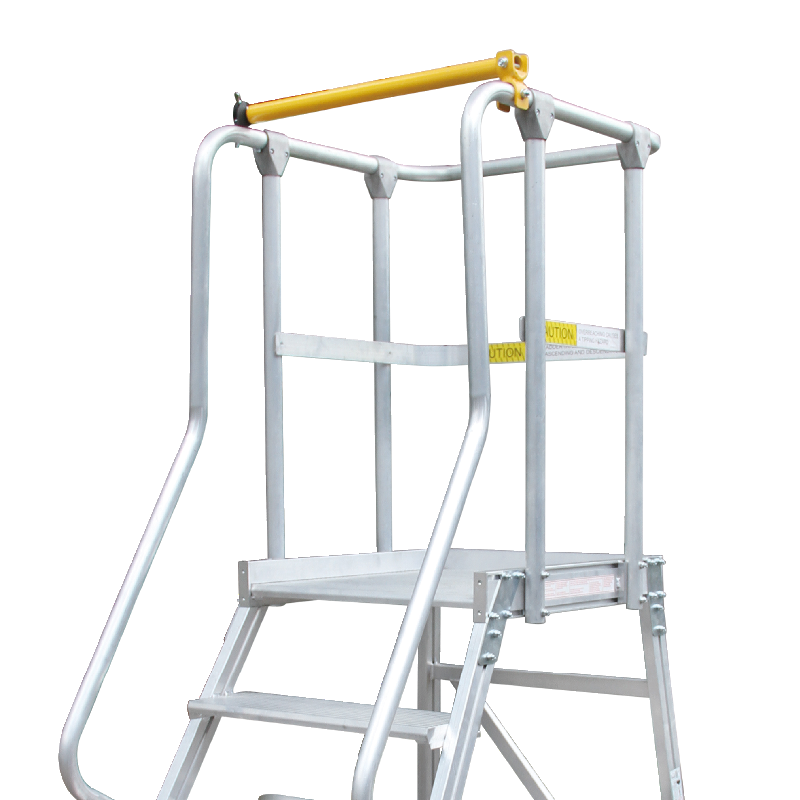

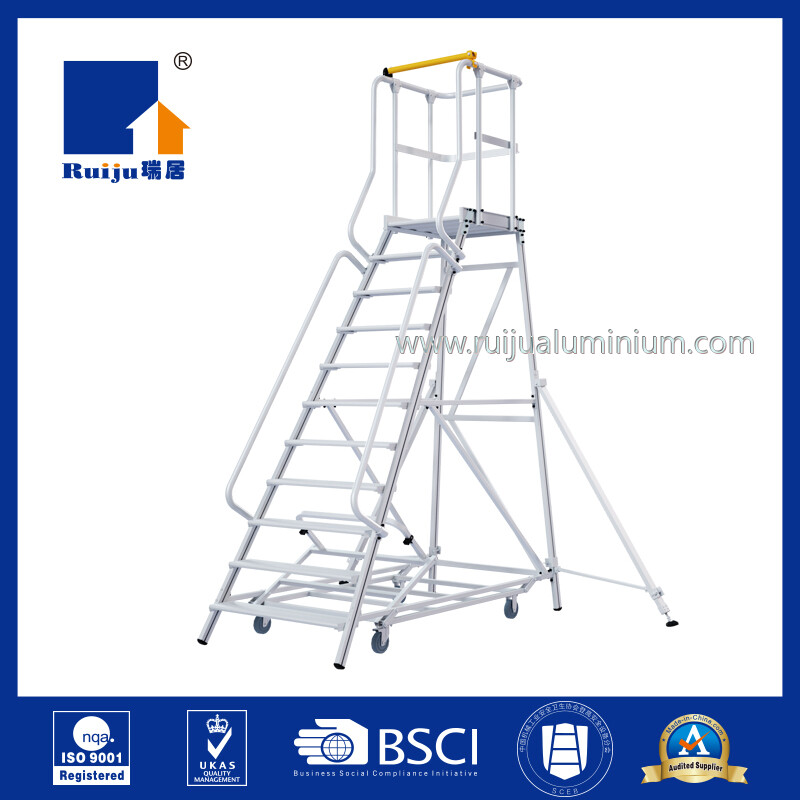

Mobile Work Platform
Industrial Work Platform Ladder With Safety Rail are produced in different sizes from 3 steps to 9 steps. This work platform ladder is designed for safe, easy and efficient use around the warehouse or workplace.
Model Selection: FP3, FP4, FP5, FP6, FP7, FP8, FP9,FP10,FP11,FP12,FP13,FP14
● Sample available, stair ladder platform 7ft, 8ft models
● Complied with EN131-7 and ASAS/NZS 1892
● MOQ 10pcs
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express
● Download The Brochure

SEND INQUIRY

Description

Product Description

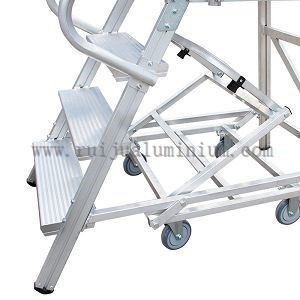

Industrial aluminum platforms are produced in different sizes from 3 step to 9 step. This Movable Work Platform ladder is designed for safe, easy and efficient use around the warehouse or workplace. Full guardrailing and gates optional are highly safe for fast access. The retractable wheel system makes the job much easier, this work platform ladder is fixed on the ground when you push the handle and get on the platform and pull the handle to take the product anywhere you want by its castors.




Product Features


◆ Stable & Safe, Flat Pack, Easy to Install

◆ Super strong "flat pack" design fabricated from heavy duty aluminium.

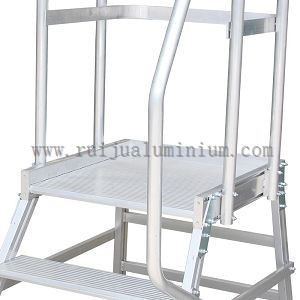

◆ Large stable work platform (safe and stable) - 600mm*700mm.

◆ Manually operated braking system with activation arm helps minimize unauthorised access.

◆ Ideal for moderate stock picking applications.


Product Specifications

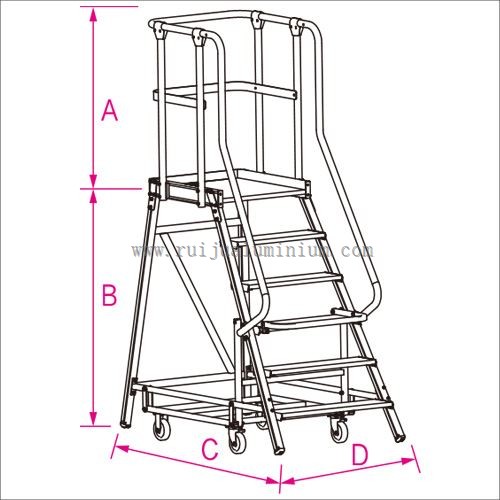

ModelFP3FP4FP5FP6FP7FP8FP9FP10FP11FP12FP13FP14


Steps34567891011121314
Handrail Height/A(mm)100010001000100010001000100010001000100010001000
Platform Height/B(mm)720960120014401680192021602400
26402880
31203360
Ladder Depth/C(mm)13151321148916551826199321572326
2318
2469
2620
2771
Bottom Width/D(mm)79782186290594798910321075
1115
1157
1199
1241
Weight(kg)24.535.839.242.847.851.355.560
77.582.9
89.7
94.5
20'' (pcs)7469554839332926
2319
1512
40'' (pcs)17416212811092786758
5043
3630


Product Details

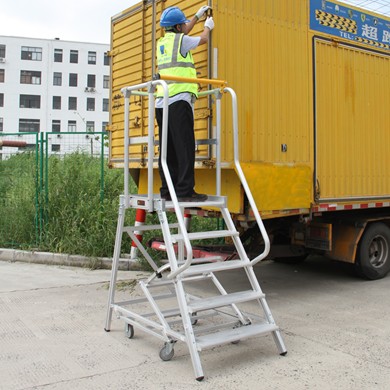

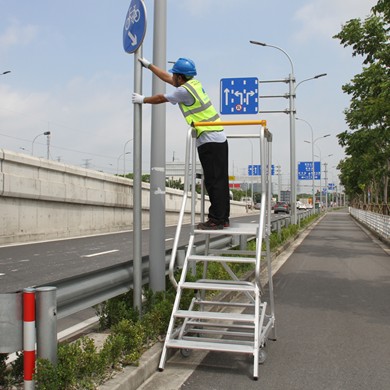

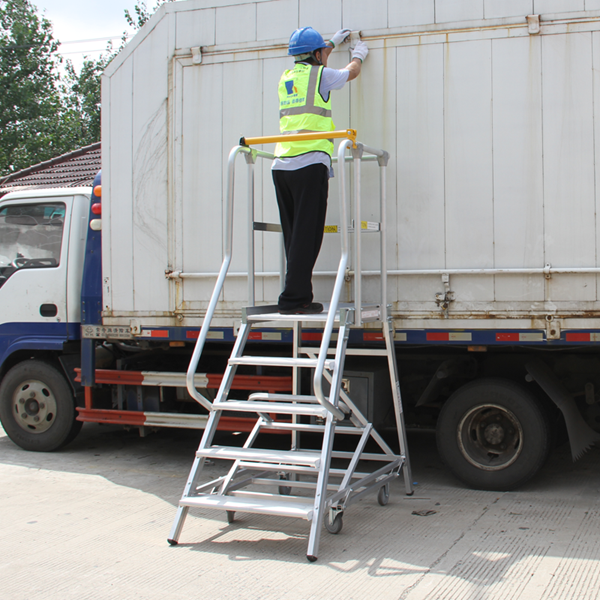

Product Applications
