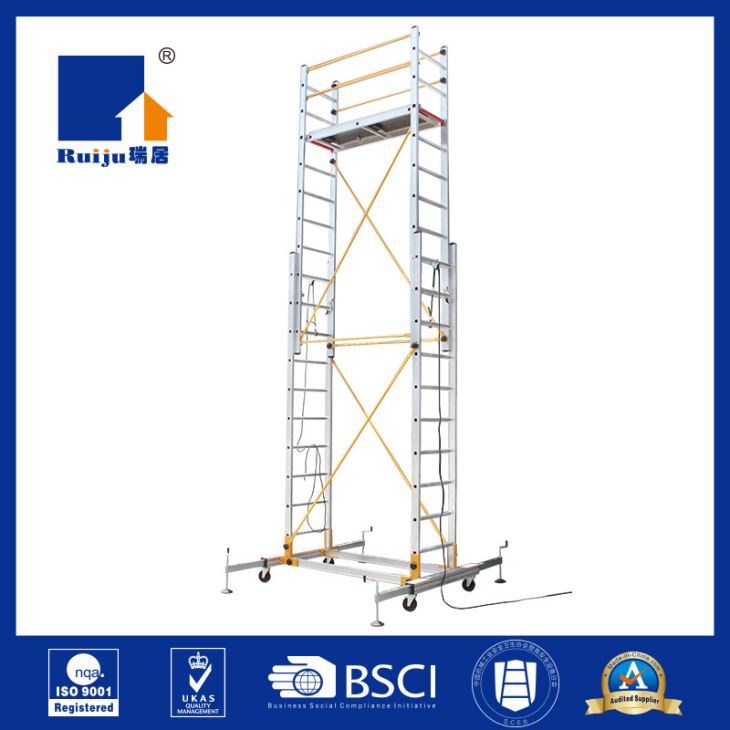

Double Part Aluminium Scaffolding
This aluminium scaffold is made of two pieces extension ladders, easily transform from ladder to scaffold work platform. Its height can be easily adjusted with its special hinge system, and it can be used in many areas with its safe, light, easily removable structure.
● Sample available, aluminium scaffold 20ft Models
● MOQ 1set
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express
● Download The Brochure

SEND INQUIRY

Description

Product Description


This aluminium scaffold is made of two pieces extension ladders, easily transform from ladder to scaffold work platform. Its height can be easily adjusted with its special hinge system, and it can be used in many areas with its safe, light, easily removable structure. Diagonal and horizontal braces made of steel tubes paint in yellow connect the main ladders of the scaffolding strongly. Excellent for maintenance and other work, the system is useable in tight spaces and in many internal environments.




Product Specifications


ModelT 3.3m (2*8)T 4.4m (2*10)T 5.5m (2*12)T 6.1m (2*13)T 8.2m (3*13)
Exterior Size1.8*1.92*4.05 (m)1.8*1.92*5.17 (m)2.2*2.1*6.29 (m)2.2*2.1*6.85 (m)2.2*2.6*9.08 (m)
Platform Height3.3m4.4m5.5m6.1m8.2m
Platform Size1.35*0.45 (m)1.35*0.45 (m)1.86*0.45 (m)1.86*0.45 (m)1.86*0.56 (m)
Product Weight81.5kg88.4kg108kg112.4kg164kg
20'' (pcs)3733292715
40'' (pcs)8777676332
Platform Load Rating230kg



Components List


ModelT 3.3m (2*8)T 4.4m (2*10)T 5.5m (2*12)T 6.1m (2*13)T 8.2m (3*13)
Extension Ladder22222
Platform with Hatch11111
Outrigger22222
Horizonal Brace666612
Diagonal Brace44444
Support Brace//444
Toeboards11111
Bottom Rail22222
Wheel44444


Product Details

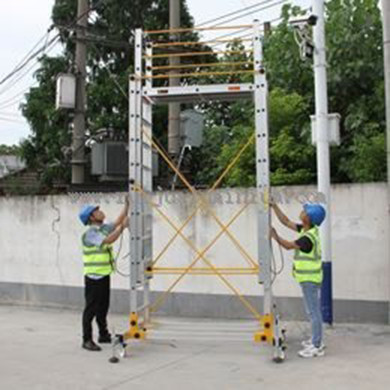

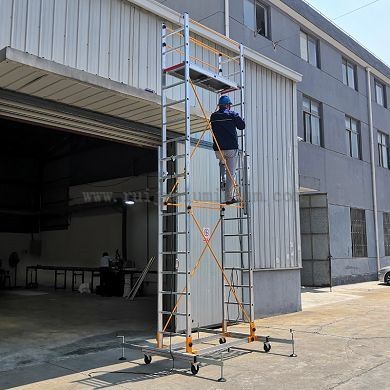

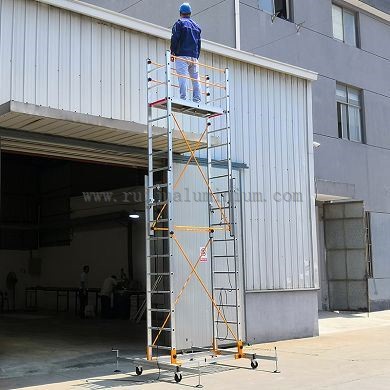

Product Applications






FAQ

Are you a factory or trading company?

Shanghai Ruiju is a professional manufacturer of aluminium ladder, fiberglass ladder, aluminium work platform, aluminium scaffolding, aluminium trolley and other aluminium products custom.

Do you have any certifications?

Yes, our regular items all pass strict tests through National Compulsory Standrards. Exported products are produced and tested according to international standards EN, AS/NZS, ANSI and etc.

What about the shipping package?

Standard packing or as customer's requirements.

Where is your factory located?

We are located in Shanghai, kindly visit us if possible.

What's the difference between you and other manufacturer?

Everything we do is based on safety and quality.

Every fitting, every material and every solution has been examined in the minutest detail and carfully designed to ensure your safety.

We have a group of skilled engineers, technicians and production of high-quality staff, a sound and stringent process practices and IPQC system.

All our products are subjected to regular testing by third party in accordance with current standards. We also regular perform our own tests to make sure our products qualified.
