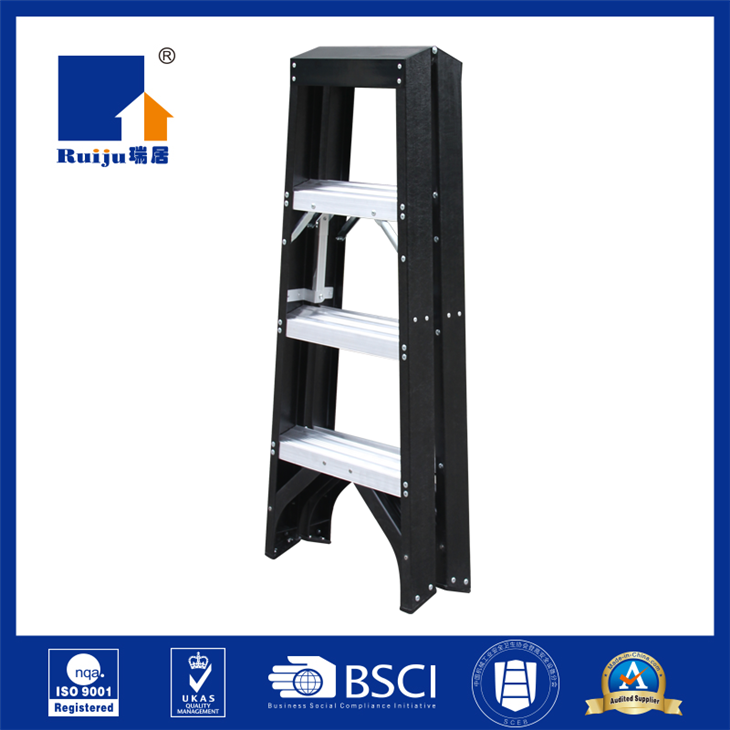

Fiberglass Ladder Double Sided
High strength fiberglass stiles- electrically safe, the professional 180kg double sided stepladder in fiberglass construction makes this range of ladders suitable for electrical applications.
Model Selection: FSSCT-850, FSSCT-1130, FSSCT-1420, FSSCT-1700, FSSCT-1990, FSSCT-2270, FSSCT-2550, FSSCT-2840
● Sample available, fiberglass ladder 3, 4, 5, 6, 7, 8, 9 and 10ft Models
● 180kg load rated in AS 1982.3
● MOQ 10pcs
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express
● Download The Brochure

SEND INQUIRY

Description

Product Description


This double sided fiberglass stepladder offers superior strength and benefits of non-conductivity, strength and durability. Designed for one or two-person jobs, this double sided ladder has greater versatility and greater load bearing strength. This fiberglass ladder also has a heavy gauge aluminum top and features heavy duty internal spreaders to resist damage around the worksite or in transit.


Product Features


◆ Design for One or Two-person Jobs

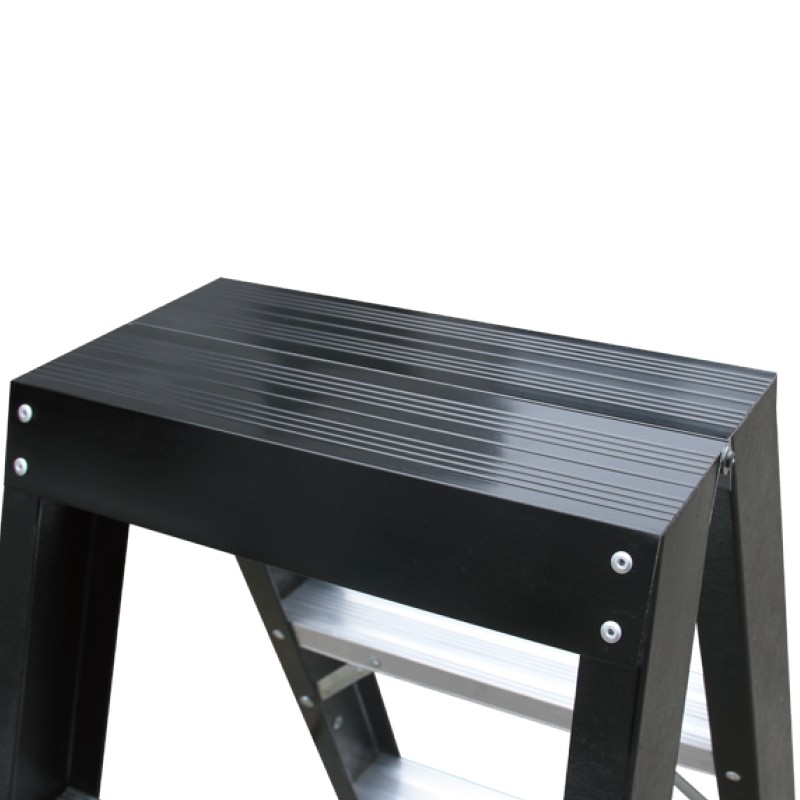

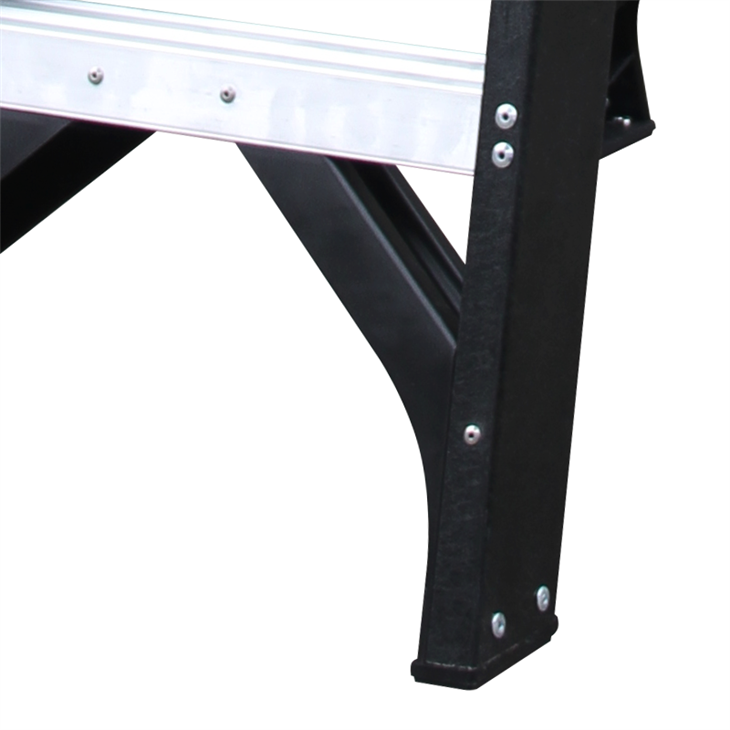

◆ Heavy gauge aluminum extruded top with thick side plates.

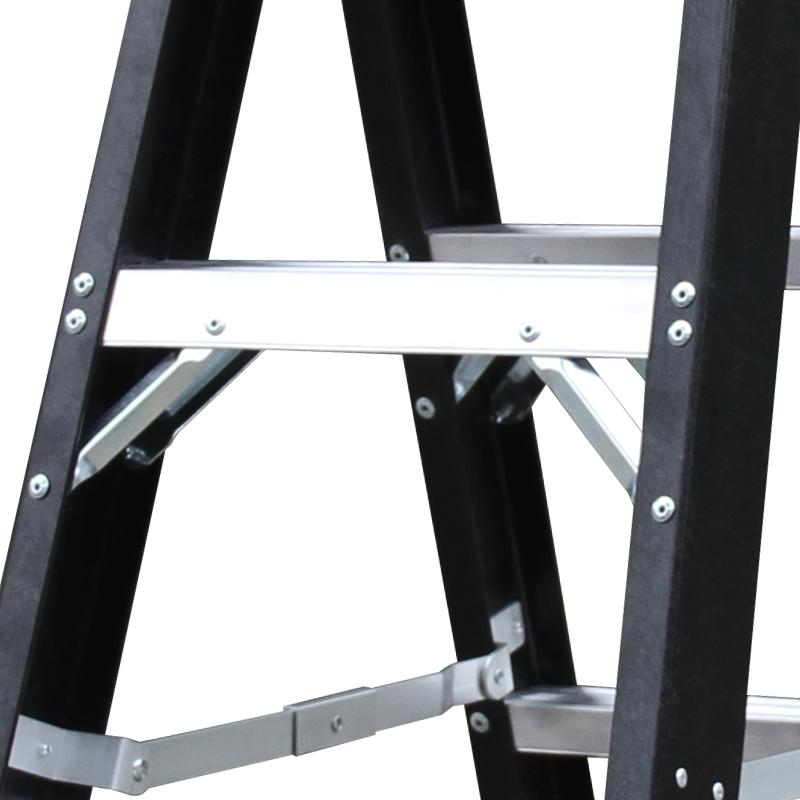

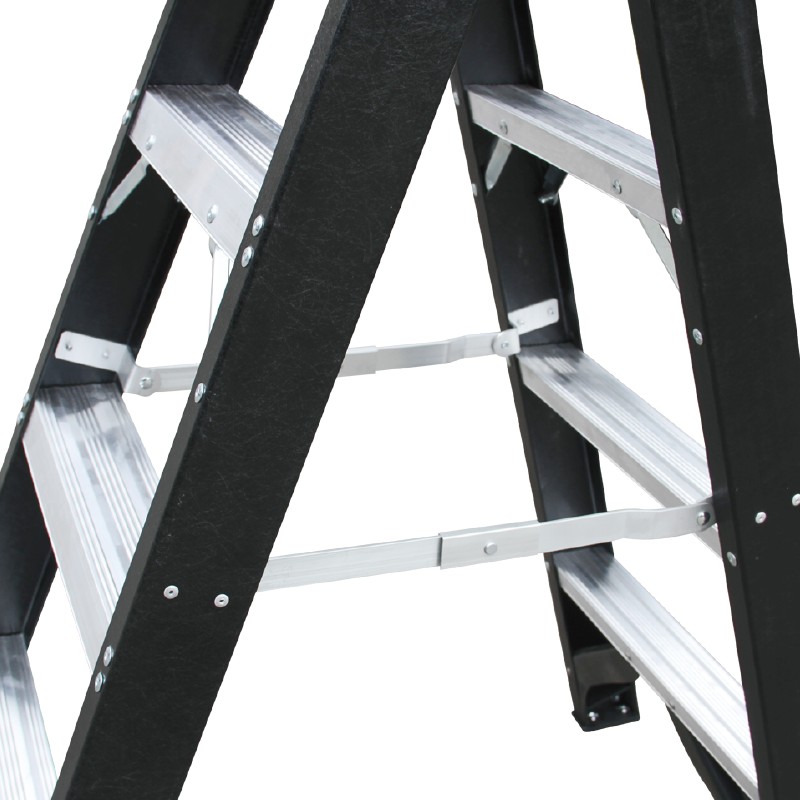

◆ Extra heavy duty external steel spreaders.

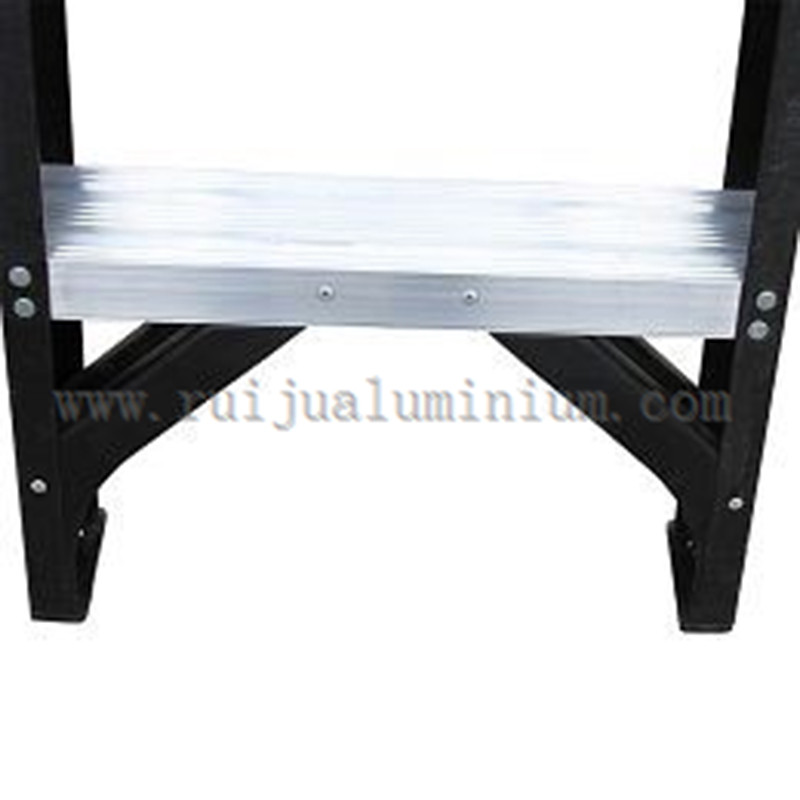

◆ Slip-resistant wide steps are double riveted and knee-braced.

◆ Fiberglass rails are non-conductive for working near electricity.

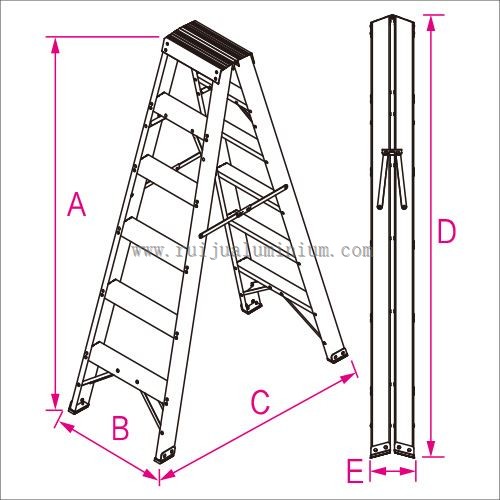

Product Specifications


ModelFSSCT-850FSSCT-1130FSSCT-1420FSSCT-1700FSSCT-1990FSSCT-2270FSSCT-2550FSSCT-2840


Steps2*32*42*52*62*72*82*92*10
A Frame Height/A850mm1134mm1417mm1701mm1985mm2269mm2552mm2836mm
Bottom Width/B471mm508mm545mm582mm619mm656mm693mm730mm
Ladder Depth/C767mm962mm1157mm1352mm1547mm1742mm1937mm2132mm
Ladder Length/D929mm1229mm1529mm1829mm2129mm2429mm2729mm3029mm
Fold Thickness/E185mm185mm185mm185mm185mm185mm185mm185mm
Weight5.6kg7.2kg9.4kg11kg12.6kg14.2kg15.8kg17.4kg
20'' (pcs)41429022318115312611297
40'' (pcs)97268052342535829626222

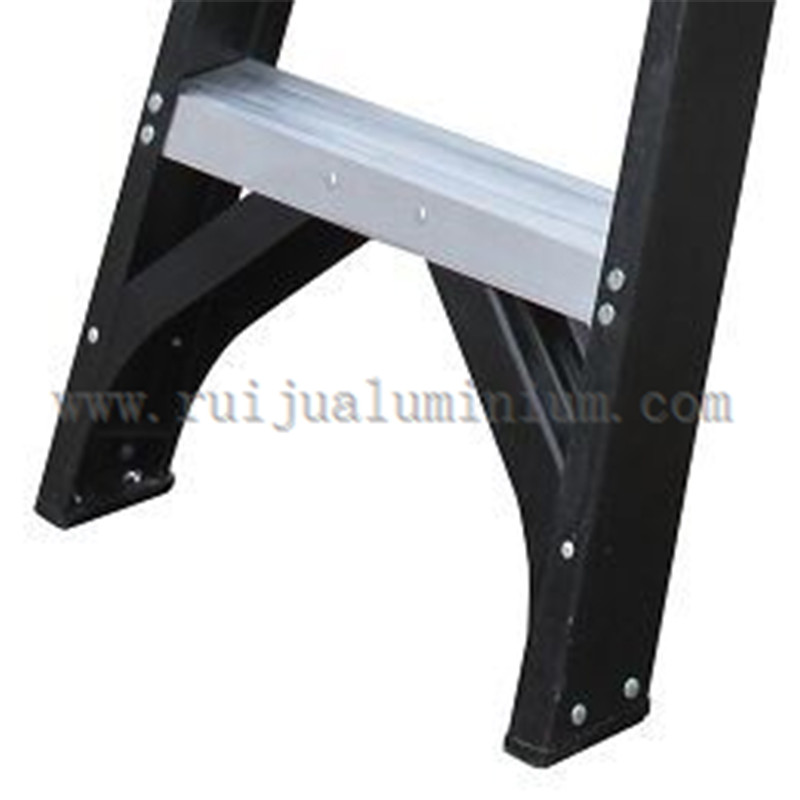

Product Details

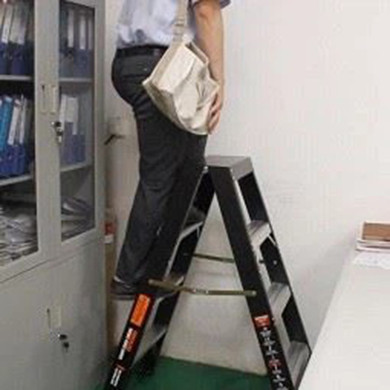

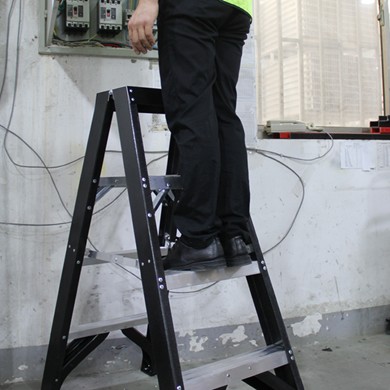

Product Applications








FAQ


Are you a factory or trading company?

Shanghai Ruiju is a professional manufacturer of aluminium ladder, fiberglass ladder, aluminium work platform, aluminium scaffolding, aluminium trolley and other aluminium products custom.

Do you have any certifications?

Yes, our regular items all pass strict tests through National Compulsory Standrards. Exported products are produced and tested according to international standards EN, AS/NZS, ANSI and etc.

Can we have our Logo or company name to be printed on your products or package?

Sure. Your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker.

How to control quality?

We have IQC (Incoming Quality Control), IPQC ( Input Process Quality Control), QC full inspection before packing and OQC before shipment.

What's the difference between you and other manufacturer?

Everything we do is based on safety and quality.

Every fitting, every material and every solution has been examined in the minutest detail and carfully designed to ensure your safety.

We have a group of skilled engineers, technicians and production of high-quality staff, a sound and stringent process practices and IPQC system.

All our products are subjected to regular testing by third party in accordance with current standards. We also regular perform our own tests to make sure our products qualified.
