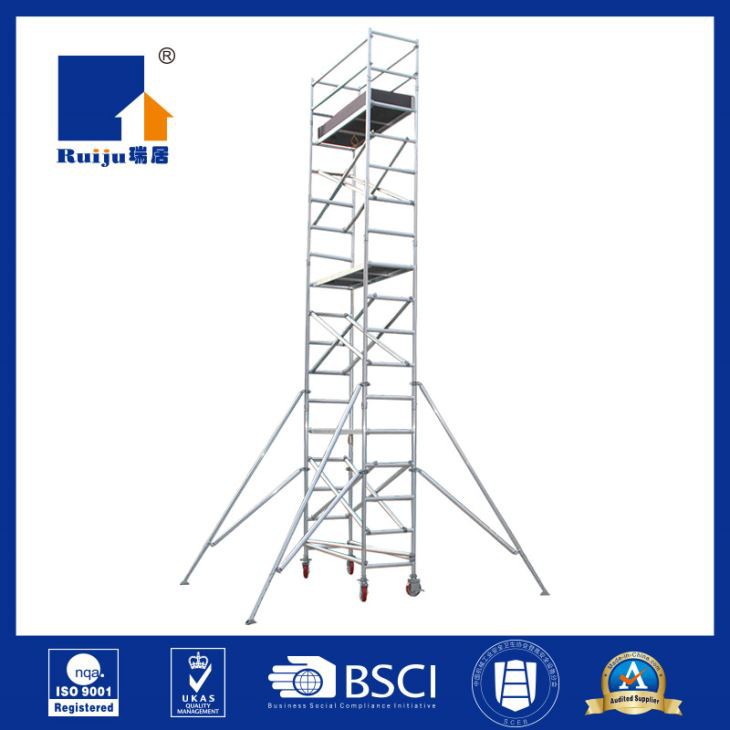

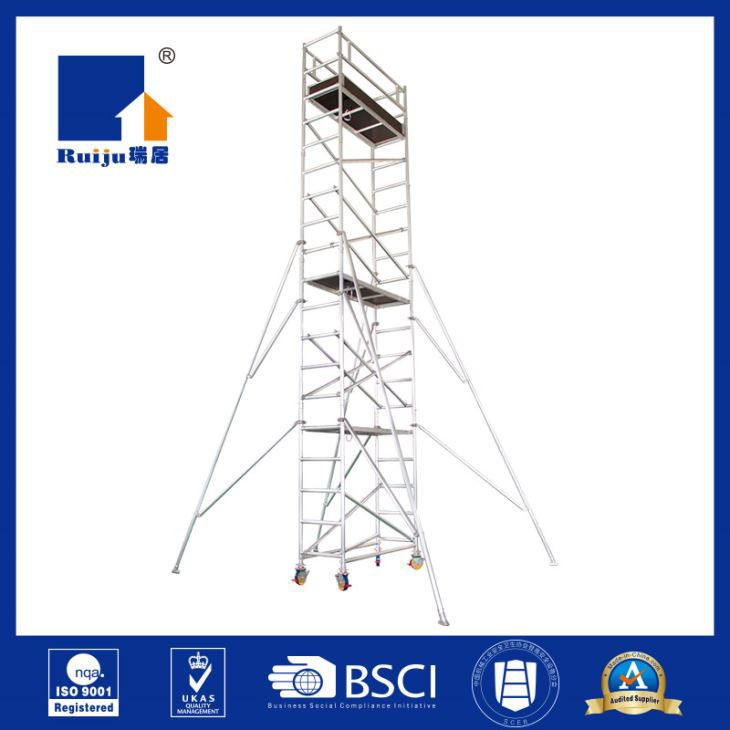

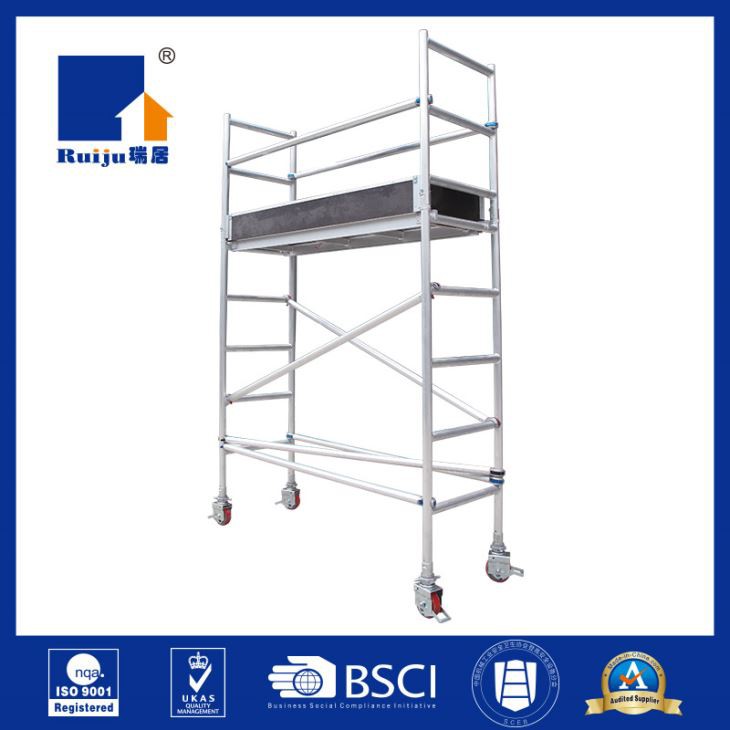

Mobile Scaffold

This aluminium mobile narrow scaffold contains lightweight components which allows easy assembly and transport. This scaffold can be used in domestic and commercial fields with different working height.
● Sample available, aluminium scaffold 4 Models
● MOQ 1set
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express

SEND INQUIRY

Description

Product Features

This aluminium scaffold is an all-in rolling tower. Perfect for the professional.Circular welded anti-slip rungs make the frame super-strong and 100% reliable.With narrow frames of 0.7 metres and a maximum load of up to 230kg per platform, this scaffolding is perfect for using in narrow spaces. We are China's leading manufacturer and distributor of scaffolding and access equipment.

Product Specifications

Model	SW 2.0m	SW 3.3m	SW 5.0m	SW 6.2m
Exterior Size	1.9150.683.04(m)	1.9150.684.27(m)	1.9150.685.91(m)	1.9150.687.14(m)
Platform Height	2m	3.3m	5m	6.2m
Platform Size	1.915*0.6(m)	1.915*0.6(m)	1.915*0.6(m)	1.915*0.6(m)
Product Weight	80.8kg	121.3kg	149.5kg	182.5kg
20''(pcs)	55	34	26	21
40''(pcs)	128	79	60	49
Platform Load Rating	230kg

Components List

Model	SW 2.0m	SW 3.3m	SW 5.0m	SW 6.2m
5 Rung Frame	2	2	2	6
4 Rung Frame	/	/	2	/
3 Rung Frame	/	2	2	/
Guard Rail	2	2	2	2
Platform with Hatch	1	1	2	3
Handrail	2	2	2	2
Diagonal Brace	2	6	8	12
Horizonal Brace	2	2	2	2
Bottom Brace	1	1	1	1
Toeboards	1	1	1	1
Stabilizer	/	4	4	4

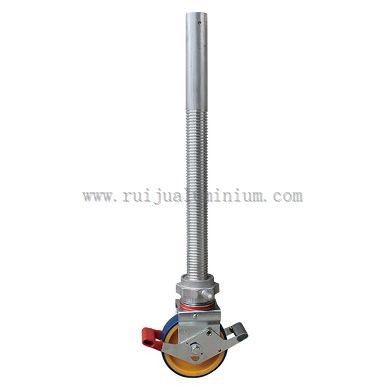

Wheel	4	4	4	4

Product Details
