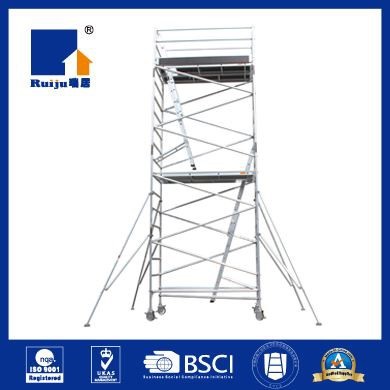

Double Width Scaffolding With Inclined Ladder
The double width aluminum scaffold is a tough mobile scaffold system. The lightweight aluminum design allows a simple and fast assembly, dismantling with high portability.
●Sample available, aluminium scaffold up to 6m working height
●Available in 2 levels
●MOQ 20GP
●Warranty 1year
●OEM Service YES
●Shipping Air, Sea, Fast Express

SEND INQUIRY

Description

Product Description


The 4M mobile scaffold allows you to make a safe working platform up to 6m in 15 minutes. The aluminium mobile tower is lightweight and compact enough to fit in most vehicles. Ideal for domestic and commercial, outdoor and indoor uses. Suitable for painting, warehouse picking, small home repairs, and shops.


Product Features


◆ Double width platform, up to 450kg safe work lad.

◆ Lightweight aluminium, easy assembly.

◆ 2mm wall thickness tube with 50.8mm diameter.

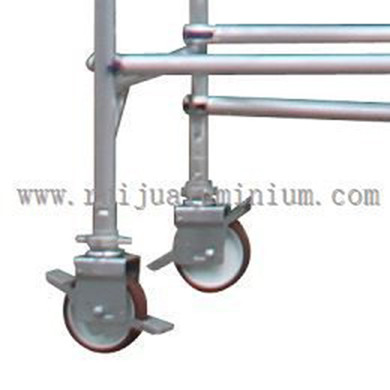

◆ Can use on stairs and uneven surfaces with adjustable wheels.


Product Specifications


ModelDWS 2.2mDWS 3.0mDWS 3.8mDWS 4.2mDWS 5.0mDWS 6.3m
Exterior Size2.5*1.25*3.23(m)2.5*1.25*4.03(m)2.5*1.25*4.83(m)2.5*1.25*5.23(m)2.5*1.25*6.03(m)2.5*1.25*7.23(m)
Platform Height2.2m3m3.8m4.2m5m6.2m
Platform Size2.5*0.54(m)2.5*0.54(m)2.5*0.54(m)2.5*0.54(m)2.5*0.54(m)2.5*0.54(m)
Product Weight146kg191kg209kg212.4kg226.4kg255kg
20''(pcs)312322211815
40''(pcs)725250494641
Platform Load Rating275kg


Component List


ModelDWS 4.2m Two LevelsDWS 6.3m Two Levels
2110×1250mm Five Rung Frame46
1000×1250mm Guard Rail22
6 Inch Adjustable Wheel4/
8 Inch Adjustable Wheel/4
2500mm Horizontal Brace66
2624mm Diagonal Brace812
2795mm Bottom Brace11
2500×540mm Platform22
2500×540mm Platform with Hatch22
2500×1080mm Toeboard22
2500mm×1530mm Stabiliser44
4000mm Extension Ladder/2
1023×270mm Ladder Support2/
3100mm Single Ladder2/
923×270mm Ladder Support/2


Product Details
