Aluminium Ladder Dual Purpose180kg
This aluminium ladder features a 2-in-1 design that can act as both a stepladder and an single ladder. Available in 6, 7 and 8 step configurations, this aluminium folding ladder is made from high-grade aluminium and is weight-rated at a huge 180kg.
Model Selection: YQZHT-1710, YQZHT-2000, YQZHT-2280
● Sample available, aluminium ladder 6, 7, 8ft Models
● 180kg load rated in AS 1982.1
● MOQ 10pcs
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express
● Download The Brochure

SEND INQUIRY

Description

Product Description

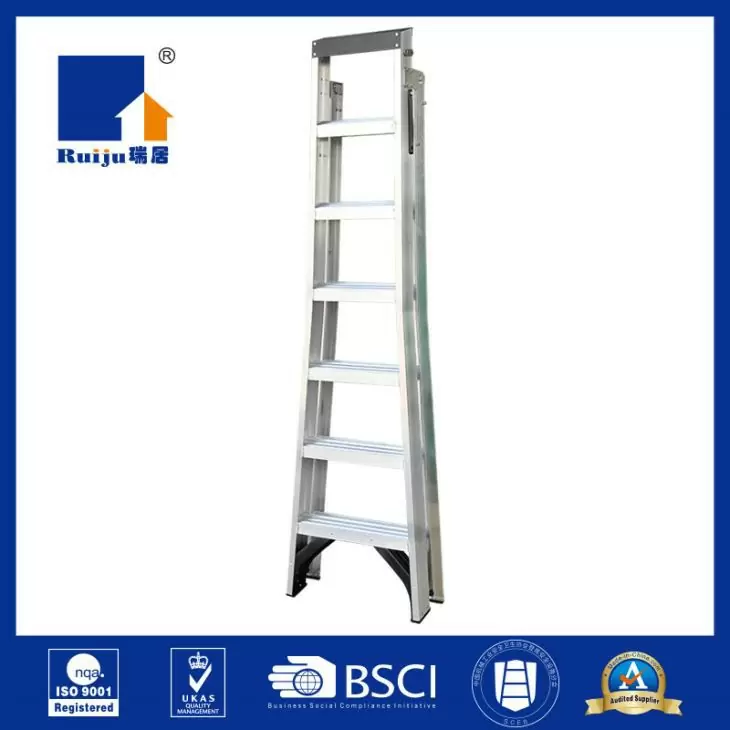

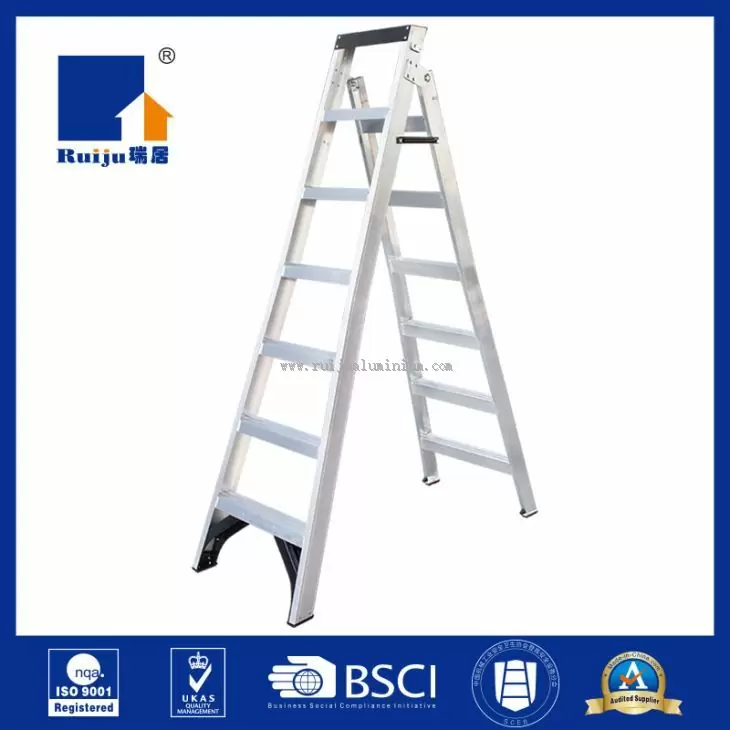

This aluminium ladder features a 2-in-1 design that can act as both a stepladder and an single ladder. Available in 6, 7 and 8 step configurations, this aluminium folding ladder is made from high-grade aluminium and is weight-rated at a huge 180kg. With a simple Flip and Click the ladder easily converts from one position to the other. All steps line up to form a large flat step when folded.


Product Features


◆ Aluminium Light Weight & Super Strong.

◆ Industrial Duty Rated. Designed for use on industrial work sites.

◆ Welded steps increase rigidity of the overall ladder frames.

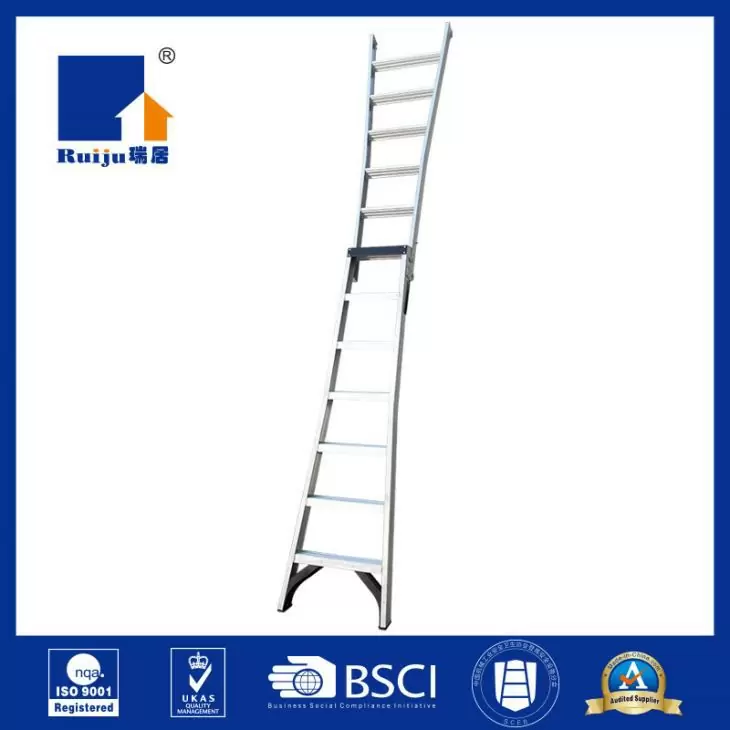

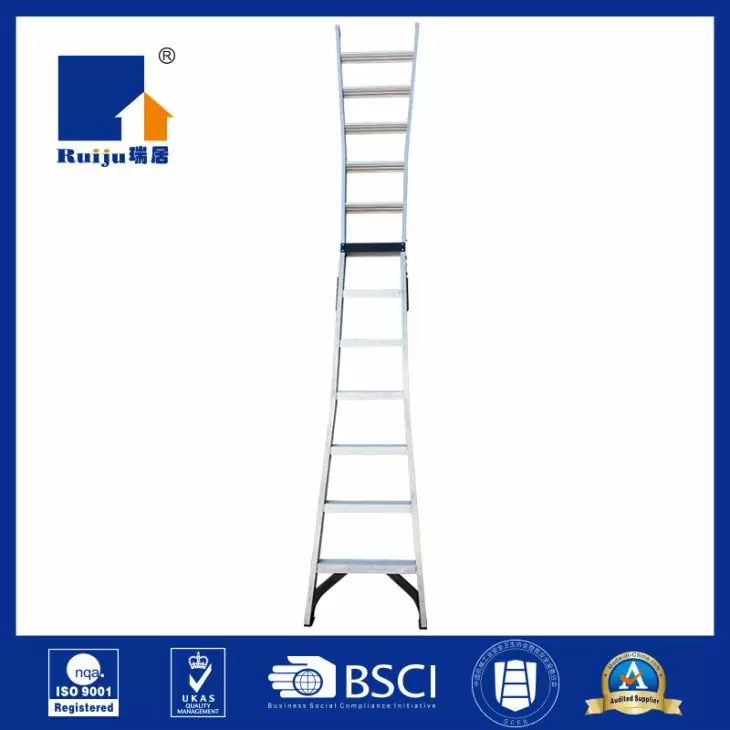

◆ Easily converts from a stepladder to a single ladder, automatically latches into position.

◆ Slightly tapered back legs provide added stability when used as a stepladder.


Product Specifications


ModelYQZHT-1710YQZHT-2000YQZHT-2280


Steps678
A Frame Height/A1708mm1993mm2277mm
Bottom Width/B561mm608mm656mm
Ladder Depth/C1202mm1300mm1491mm
Ladder Length/D1826mm2126mm2425mm
Fold Thickness/E181mm181mm181mm
Straight Length/F3277mm3586mm4185mm
Weight9.3kg10.4kg12kg
20''(pcs)193153132
40''(pcs)453358309
