A Type Aluminium Ladder
This Multifunctional aluminium ladder is versatile, all-purpose, combination ladder converts quickly from a step ladder to a straight ladder by releasing the joint lock, maximum durability secure locking - guards against accidental dislodgement.
Model Selection: YQGJT-2-3170, YQGJT-2-3765, YQGJT-2-4360, YQGJT-2-4955
● Sample available, ladder 10, 12,14 and 16 steps. Models
● 110kg load rating
● MOQ 10pcs
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express

SEND INQUIRY

Description

Product Description


This Aluminum Folding Step Ladder Multipurpose Ladder is versatile, all-purpose, combination ladder converts quickly from a step ladder to a straight ladder by releasing the joint lock. The full square flange riveted steps run up the entire ladder offering better standing comfort both in step ladders and straight ladder at any height. It's also an aluminium Double Sided Step Ladder for user.




Product Features


◆ Dual-use Ladder with Self-locking Joint

◆ High strength fixed rotating joint increased stability and convenience.

◆ Convenient locking system make your ladder dual use quick and easy.

◆ Anti-skid strips rungs for greater safety and load bearing strength.

◆ Wide stiles with flange riveting rungs increase comfortability and rigidity.

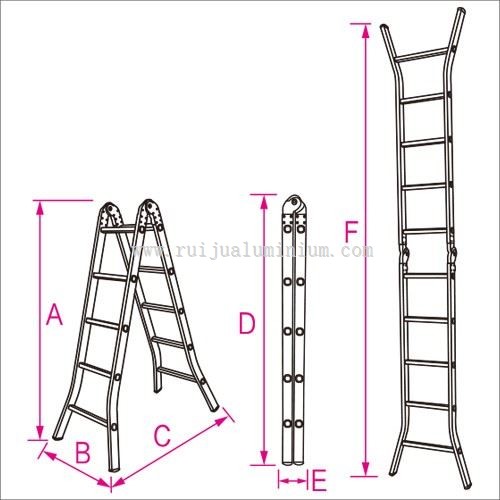

Product Specifications


ModelYQGJT-2-3170YQGJT-2-3765YQGJT-2-4360YQGJT-2-4955


Steps2*52*62*72*8
A Frame Height/A1540mm1830mm2110mm2390mm
Bottom Width/B610mm610mm610mm610mm
Ladder Depth/C1100mm1255mm1470mm1625mm
Ladder Length/D1625mm1920mm2225mm2510mm
Fold Thickness/E140mm140mm140mm140mm
Straight Length/F3170mm3765mm4360mm4955mm
Weight7.4kg8.5kg9.4kg10.4kg
20''(pcs)223193171145
40''(pcs)523453400340


Product Details









Product Applications






FAQ

Do you have any certifications?

Yes, our regular items all pass strict tests through National Compulsory Standrards. Exported products are produced and tested according to international standards EN, AS/NZS, ANSI and etc.

Where is your factory located?

We are located in Shanghai, kindly visit us if possible.

What's your annual capacity?

Annual production for ladders reaches over 300,000pcs and scaffolding/frameworks over 10000sets.

How can I get samples?

Please contact us by Email(jenny.liu@ruiju.com/ben.cai@ruiju.com) and tell us your requirements.

Whats is the MOQ?

Normally a full container load, LCL is also accepted if customers agrees standard package.

How to control quality?

We have IQC (Incoming Quality Control), IPQC ( Input Process Quality Control), QC full inspection before packing and OQC before shipment.
