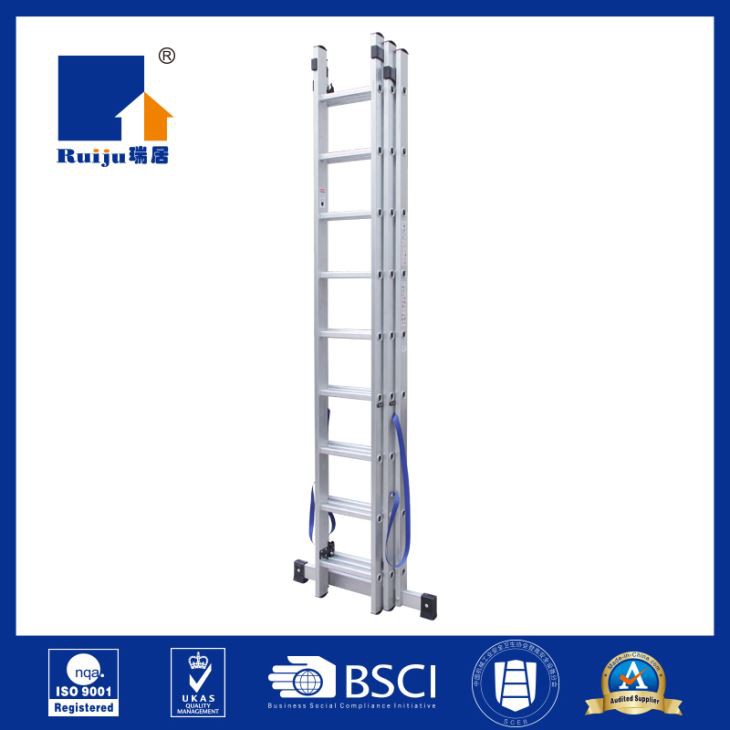

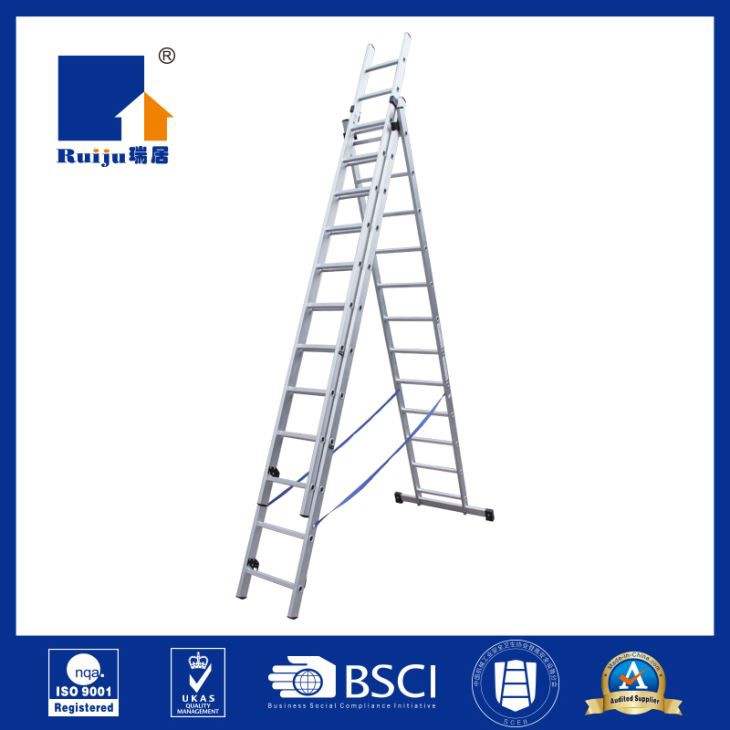

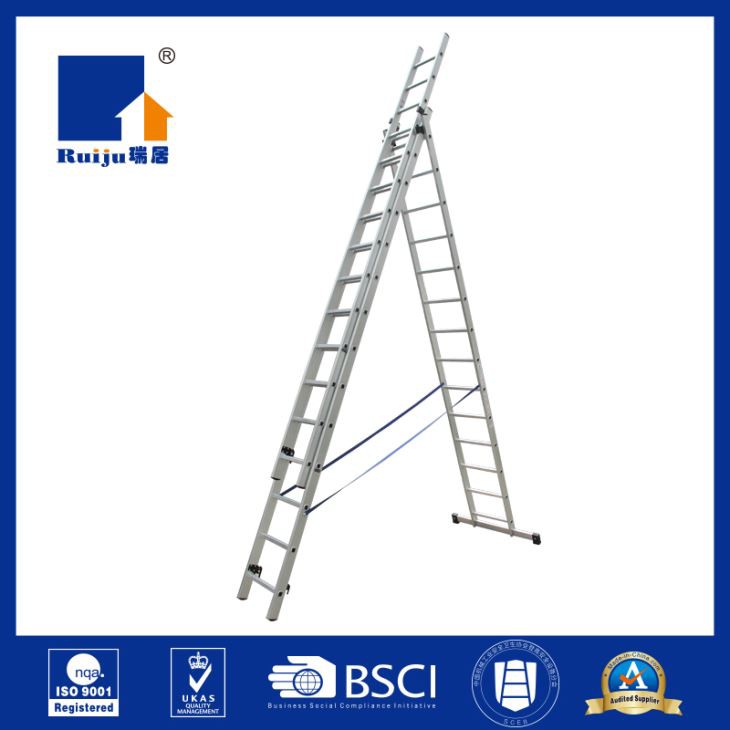

Combination Ladder
This aluminium ladder is a triple part extension ladder. These are the ladders that can be adjusted by sliding system and used by leaning on a surface. They are equipped with a locking hook system which completely surrounds the aluminium guiding profiles and never displaces.
Model Selection: YQSJT-3820, YQSJT-4660, YQSJT-5500, YQSJT-6340, YQSJT-7180, YQSJT-8000 and YQSJT-9700
● Sample available, aluminium ladder in 13, 15, 18, 21, 24,26 and 32ft. Models
● 150kg load rating in EN 131
● MOQ 10pcs
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express

SEND INQUIRY

Description

Product Description


This aluminium ladder is a triple part extension ladder. These are the ladders that can be adjusted by sliding system and used by leaning on a surface. It is a very safe product with the height limiting pin,, the "U" sliding system that fully covers the extension ladder in the channel. Each of the parts can be used independently when required. They are very useful models to reach higher places with their practical, light and safe design.



Product Features


◆ Extra Wide Tripe Combination Ladder

◆ Simple operations for multiple use, an extending ladder, a standing ladder or two one-piece ladders.

◆ A Type 2 Stabilizer Bar is included to give the ladder additional stability.

◆ The top section can easily be disconnected and used separately.

◆ Heavy gauge steel bracket engages steel pin to lock section in step ladder position.

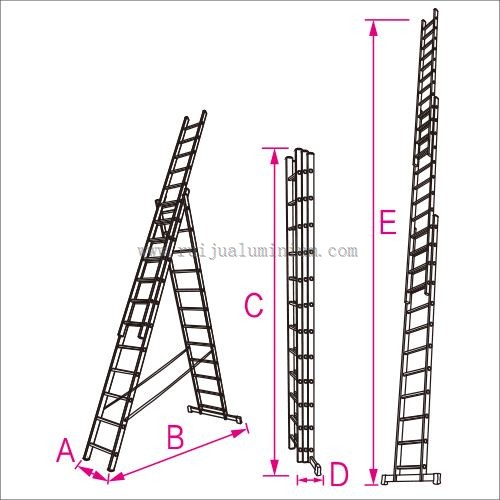

Product Specifications


ModelYQSJT-3820YQSJT-4660YQSJT-5500YQSJT-6340YQSJT-7180YQSJT-8000YQSJT-9700


Steps3*73*83*93*103*113*123*14
Bottom Width/A820mm820mm820mm970mm970mm970mm1060mm
Ladder Depth/B1180mm1420mm1660mm1900mm2140mm2385mm2835mm
Ladder Length/C2100mm2380mm2660mm2940mm3220mm3500mm4065mm
Fold Thickness/D190mm190mm190mm190mm190mm190mm190mm
Extension Length/E3820mm4660mm5500mm6340mm7180mm8000mm9700mm
Weight14.8kg16.5kg18.2kg19.9kg21.6kg23.3kg26.8kg
20''(pcs)153132116108979178
40''(pcs)358309272252227213184


Product Details

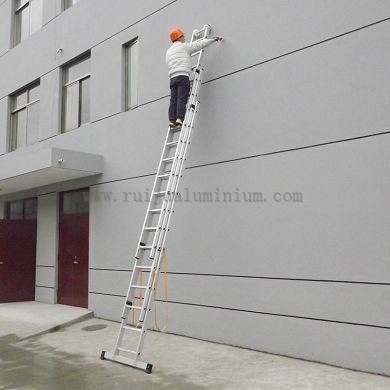

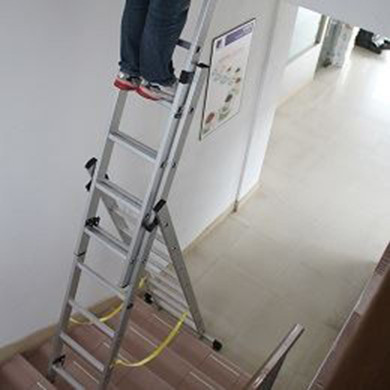

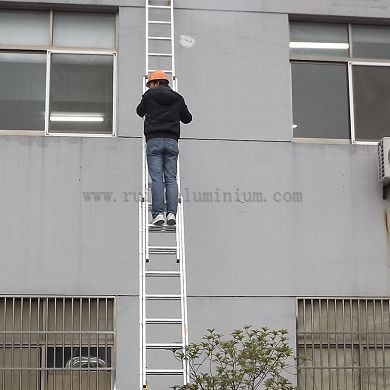

Product Applications






FAQ

Are you a factory or trading company?

Shanghai Ruiju is a professional manufacturer of aluminium/fiberglass climbing products.

Where is your factory located?

We are located in Shanghai, kindly visit us if possible.

Do you have stock? When is the delivery time?

25~45 days after confirming the order.

What about the shipping package?

Standard packing or as customer's requirements.

What's your annual capacity?

Annual production for ladders reaches over 300,000pcs and scaffolding/frameworks over 10000sets.

How do you carry out the warranty?

We guarantees to repair or replace a faulty product during the warranty period 1 year.
