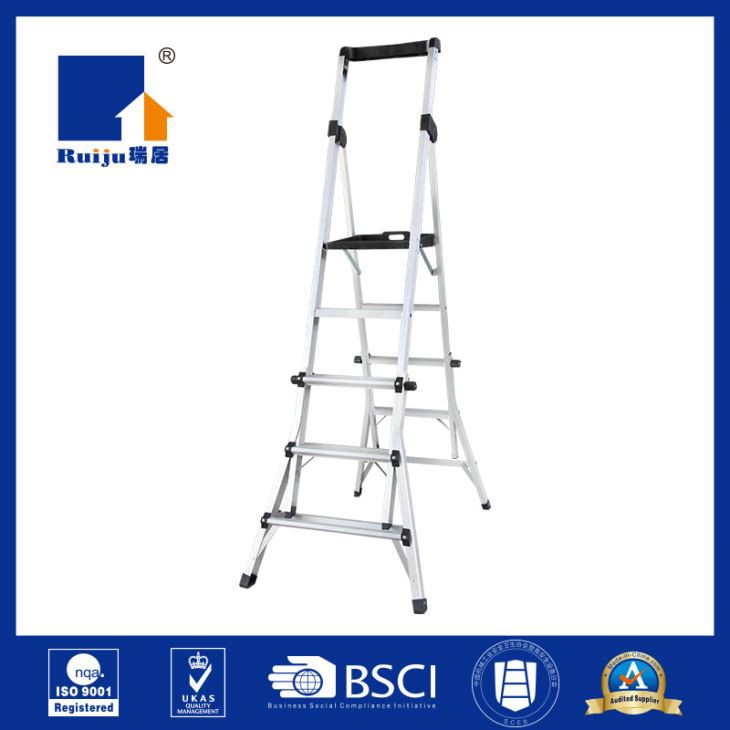

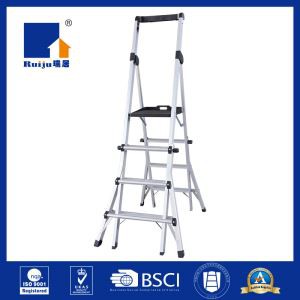

Adjustable Platform Ladder
The height of this platform ladder can be adjusted easily to meet the needs of the job at hand. Each side can also be adjusted independently, allowing the operator to use the ladder over uneven surfaces or even on stairs.

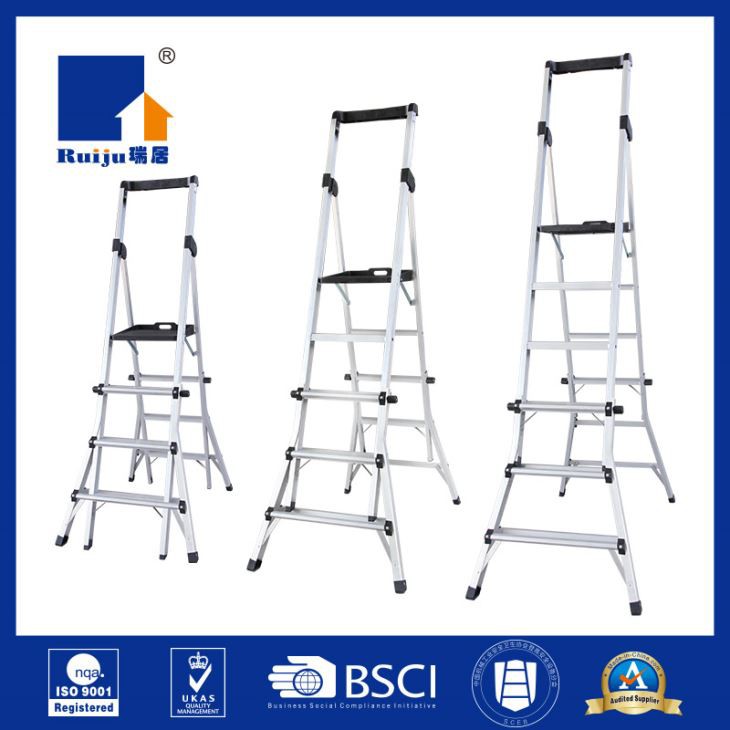

Model Selection: YQSST-840, YQSST-1120, YQSST-1400, YQSST-1680
● Sample available, platform ladder up to 10ft. Models
● 180kg load rating in AS 1892.1
● MOQ 10pcs
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express
● Download The Brochure

SEND INQUIRY

Description

Product Description

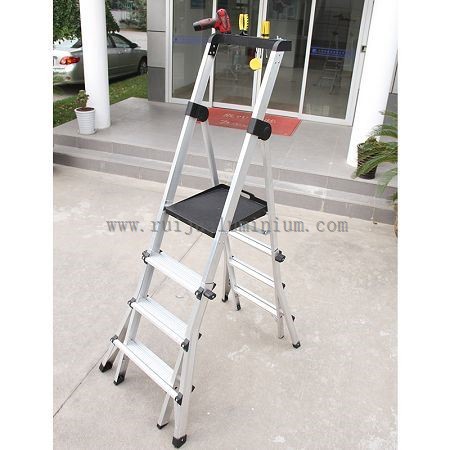

The height of this platform ladder can be adjusted easily to meet the needs of the job at hand. Each side can also be adjusted independently, allowing the operator to use the ladder over uneven surfaces or even on stairs. You can work comfortably and safely for a long time on the non-slippery high strength top platform. It can be easily moved in the working area by its optional wheels or wheel system on the rear. The optional handrail and boom arm protects workers in a fully enclosed working platform, they can easily and safely move about within their workspace while having both hands free to complete their work tasks.




Product Features


◆ Ultra Wide Platform and Super Load.

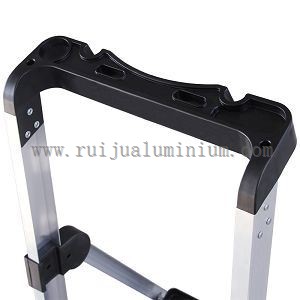

◆ Handrail 900mm high from platform - makes it comfortable.

◆ Compact to navigate through tight spaces, easy to store.

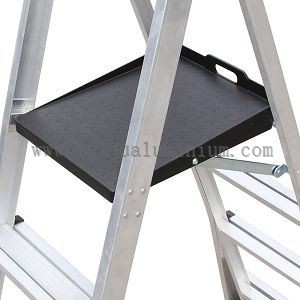

◆ Huge Platform Area (404*460mm) - Fully reinforced polypropylene platform with metal inserts for maximum strength.

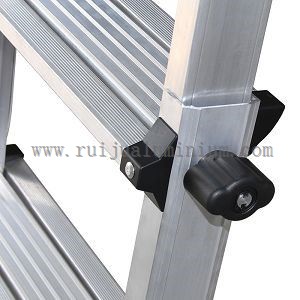

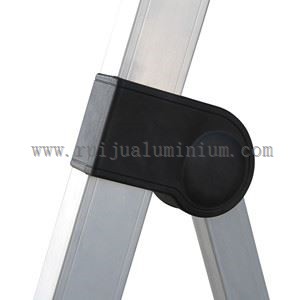

◆ Speed locks - Fast and easy height adjustments with only a 1/4 turn. Superior durability and impact resistance.

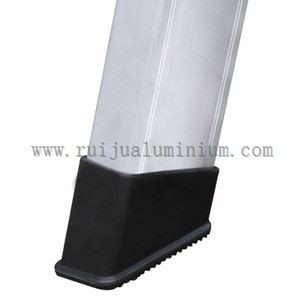

◆ Front leveling adjustment legs make work safety on uneven terrain.

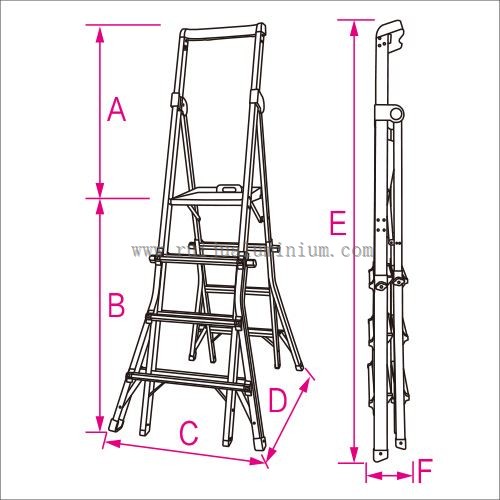

Product Specifications


ModelYQSST-840YQSST-1120YQSST-1400YQSST-1680


Steps4*24*34*44*5
Handrail Height/A910mm910mm910mm910mm
Platform Height/B840-1120mm1120-1680mm1400-2240mm1680-2800mm
Bottom Width/C650mm785mm785mm785mm
Ladder Depth/D998mm1180mm1362mm1545mm
Ladder Length/E1900mm2200mm2500mm2800mm
Fold Thickness/F200mm200mm200mm200mm
Weight12.5kg15.5kg18kg20.5kg
20''(pcs)1381089483
40''(pcs)324252219194

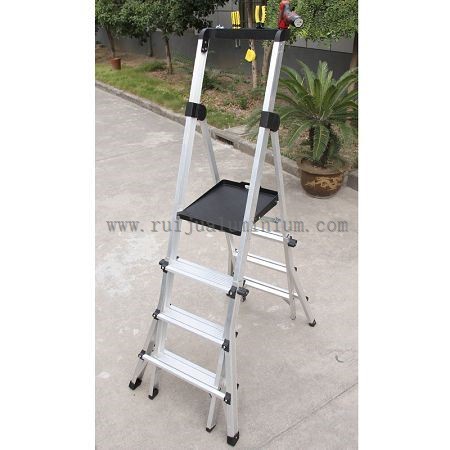

Product Details

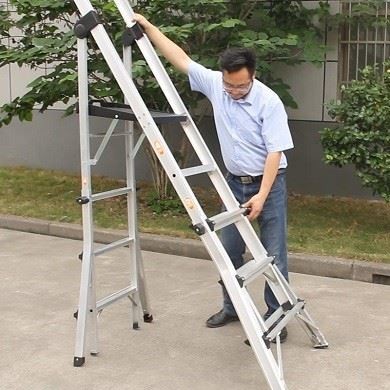

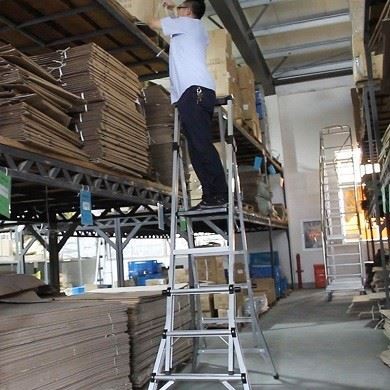

Product Applications







FAQ

Are you a factory or trading company?

Shanghai Ruiju is a professional manufacturer of aluminium ladder, fiberglass ladder, aluminium work platform, aluminium scaffolding, aluminium trolley and other aluminium products custom.

Do you have any certifications?

Yes, our regular items all pass strict tests through National Compulsory Standrards. Exported products are produced and tested according to international standards EN, AS/NZS, ANSI and etc.

How can I get samples?

Please contact us by Email (jenny.liu@ruiju.com/ben.cai@ruiju.com) and tell us your requirements.

How to control quality?

We have IQC (Incoming Quality Control), IPQC ( Input Process Quality Control), QC full inspection before packing and OQC before shipment.

How do you carry out the warranty?

We guarantees to repair or replace a faulty product during the warranty period 1 year.
