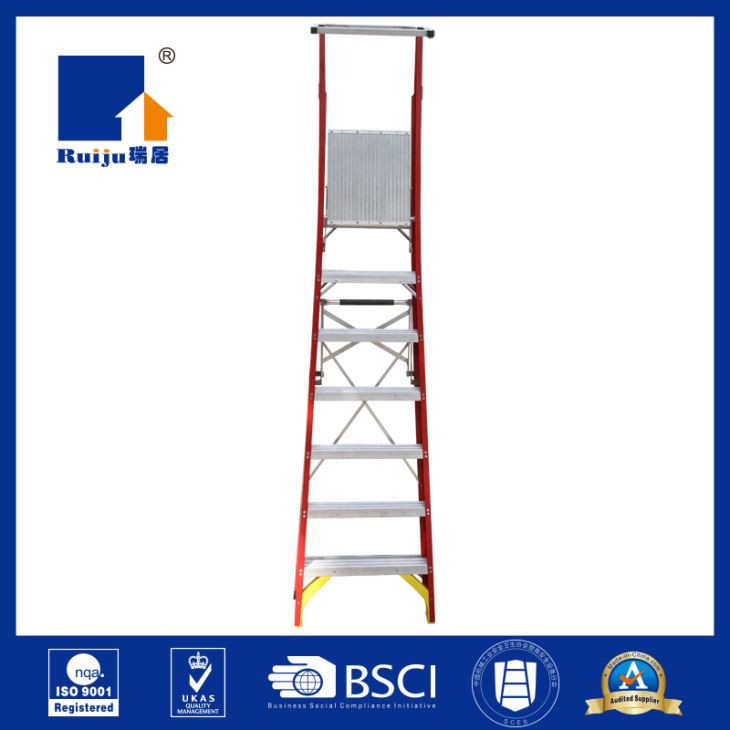

Fiberglass Platform Ladder
This fiberglass ladder has a extra-large platform with toe guard edges feels like you are standing on the ground and allows you to work facing any direction. The fiberglass platform stepladder range offers the benefits of non-conductivity, strength, stability and durability.
Model Selection: FSDLT-4100C, FSDLT-5300C, FSDLT-6500C, FSDLT-7700C, FSDLT-8900C, FSDLT-10100C
● Sample available, fiberglass ladder up to 31ft Models
● 150kg load rated in AS 1982.3
● MOQ 10pcs
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express
● Download The Brochure

SEND INQUIRY

Description

Product Description


This fiberglass ladder offers a reach height as an 13 ft Step Ladder and is ideal for working at fixed heights and is easier to maneuver than scaffolds or lifts. The extra-large platform with toe guard edges feels like you are standing on the ground and allows you to work facing any direction. This ladder features full aluminum bracing and a full set of rear horizontals. It gives the bottom of the ladder protection from every angle with integrated rail shield, EDGE bracing and over-sized foot pads.



Product Features


◆ Lightweight and Highly Portable

◆ Large standing area (430*488mm) adds comfort and stability.

◆ Extra strong, heavy duty fiberglass construction for superior durability.

◆ The safety gate fully surrounds the user,improves safety on platform stepladders.

◆ Swivel castors for improved mobility and improved productivity (available as an accessory).


Product Specifications

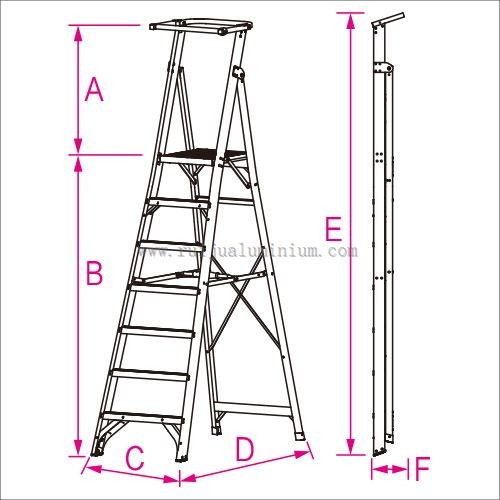

ModelFSZDT-870FSZDT-1160FSZDT-1450FSZDT-1740FSZDT-2030


Steps34567
Handrail Height/A908mm908mm908mm908mm908mm
Platform Height/B870mm1160mm1450mm1740mm2030mm
Bottom Width/C611mm643mm675mm707mm739mm
Ladder Depth/D939mm1100mm1261mm1422mm1583mm
Ladder Length/E1937mm2242mm2547mm2852mm3257mm
Fold Thickness/F230mm230mm230mm230mm230mm
Weight12.4kg13.7kg15kg16.4kg17.7kg
20''(pcs)11294817161
40''(pcs)262219189166142


Product Details









Product Applications
