Aluminium Trestle Ladder
The aluminium trestle ladders helps painters, maintenance personnel and other professionals set up and tear down quickly when accessing heights. The trestles are made from a unique extrusion shape, engineered to provide maximum strength with minimum deflection.
Model Selection: YQZJ-1800, YQZJ-2400, YQZJ-3000, YQZJ-3600, YQZJ-4200, YQZJ-4800
● Sample available, aluminium ladder 6, 8, 10, 12, 14 and 16ft Models
● 150kg load rated in AS 1982.1
● MOQ 10pcs
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express
● Download The Brochure

SEND INQUIRY

Description

Product Description


The aluminium trestle ladder helps painters, maintenance personnel and other professionals set up and tear down quickly when accessing heights. The trestles are made from a unique extrusion shape, engineered to provide maximum strength with minimum deflection. It is used for all major parts of the trestle (styles and rungs) to maintain the highest standard of build quality. To adhere to AS 1892, we supply safety systems with only the highest-grade aluminium and weight ratings that exceed expectations.



Product Features

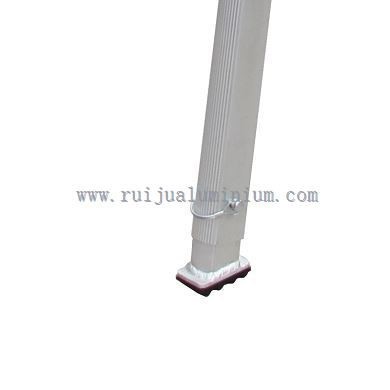

◆ Trestle has height adjustable legs - up to 250mm extension for uneven ground or steps.

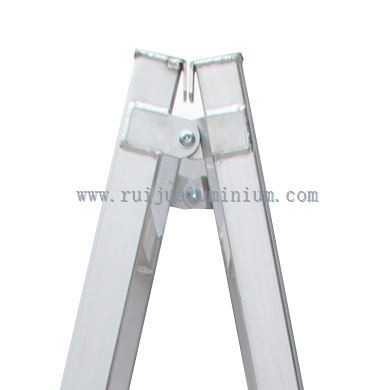

◆ Trestle stay locks the trestle in the open position, and holds the configuration firm.

◆ Trestle SWL is 225kg for all sizes.

◆ Width at the top of all trestles is 600mm.

◆ Trestles are available individually, or as part of Trestle Safety System.


Product Specifications

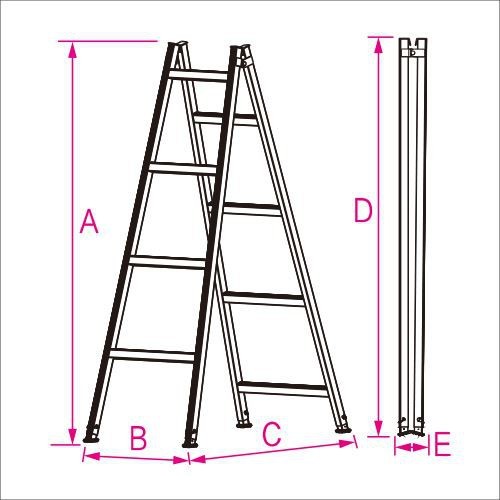

ModelYQZJ-1800YQZJ-2400YQZJ-3000YQZJ-3600YQZJ-4200YQZJ-4800


Steps345678
A Frame Height/A1900mm2479mm3058mm3637mm4216mm4795mm
Bottom Width/B849mm926mm1002mm1078mm1144mm1231mm
Ladder Depth/C1151mm1462mm1773mm2081mm2391mm2702mm
Ladder Length/D1913mm2513mm3113mm3708mm4307mm4907mm
Fold Thickness/E179mm179mm179mm179mm179mm179mm
Weight17.1kg22kg27.1kg32.4kg37.9kg43.2kg
20'' (pcs)1168564524336
40'' (pcs)27220015112210284


Product Details







Product Applications






FAQ

Are you a factory or trading company?

Shanghai Ruiju is a professional manufacturer of aluminium ladder, fiberglass ladder, aluminium work platform, aluminium scaffolding, aluminium trolley and other aluminium products custom.

Do you have any certifications?

Yes, our regular items all pass strict tests through National Compulsory Standrards. Exported products are produced and tested according to international standards EN, AS/NZS, ANSI and etc.

Do you provide OEM/ODM service?

Yes, we do. Almost all of our products are made according to our clients' designs. We offer OEM/ODM service for 20 years.

What about the shipping package?

Standard packing or as customer's requirements.

How can order the products without any acknowledge of import?

We could arrange you shipping or air or express for you and deliver everything to your port or provide you door to door service.
