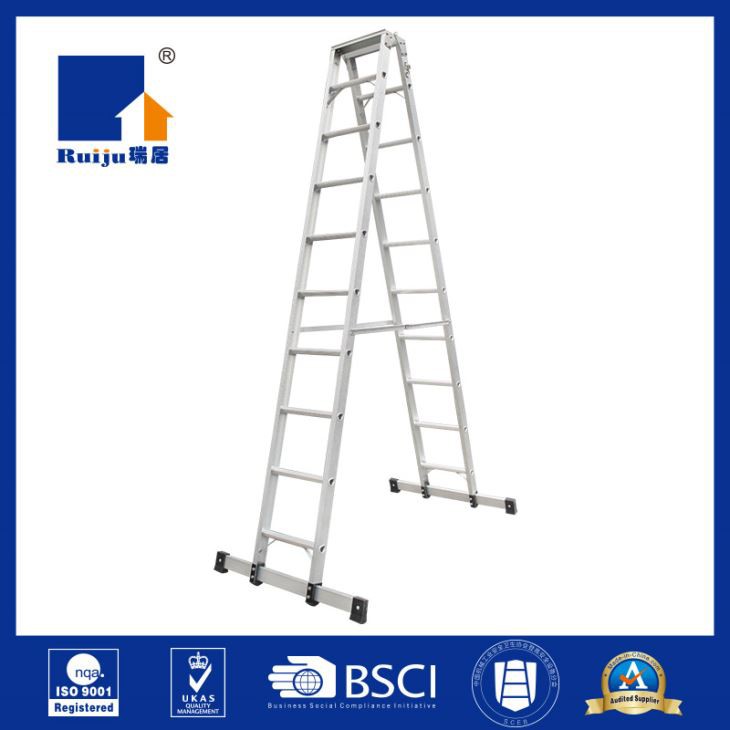

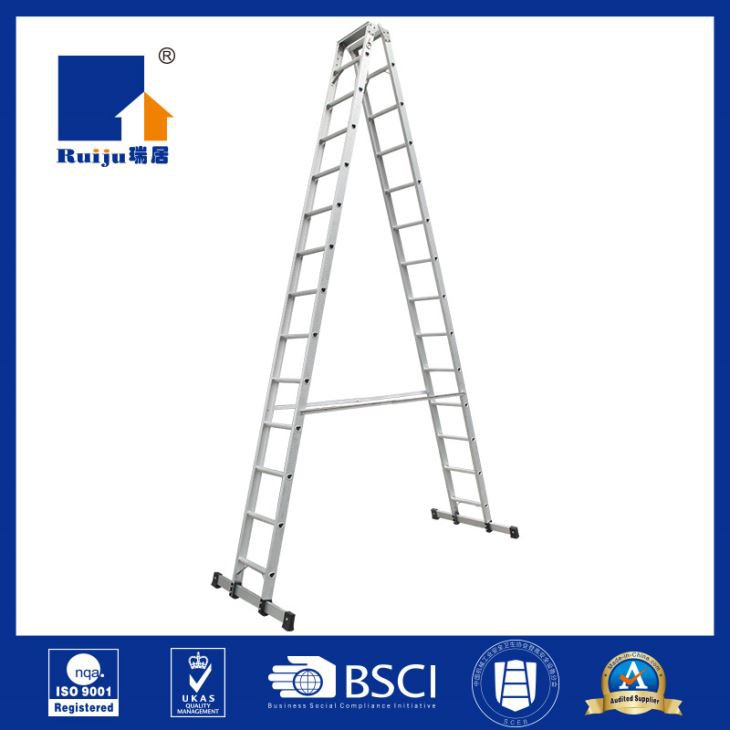

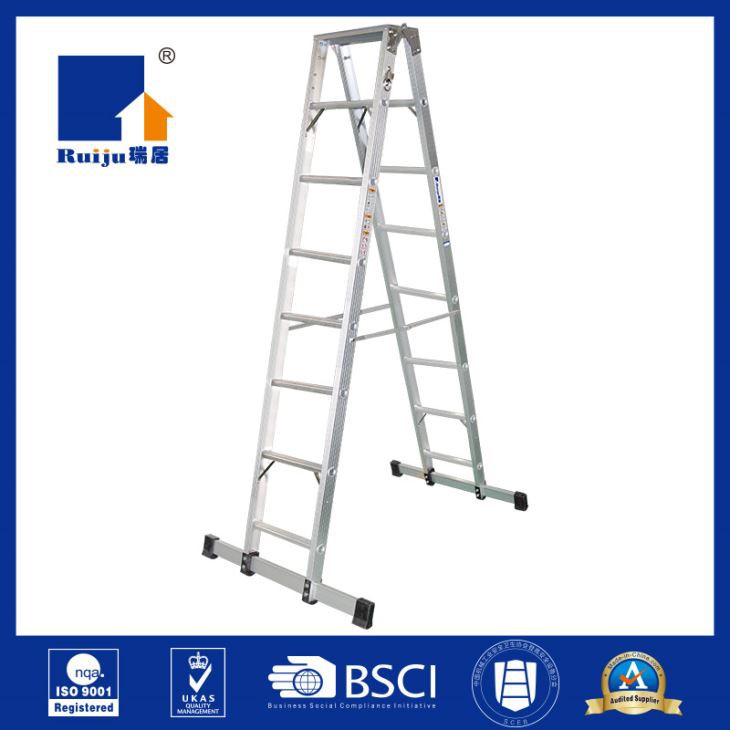

Industrial Double Sided Ladder
Highly durable and offering superior strength, this aluminium ladder is double sided ladder height up to 4.4m.
Model Selection: YQAT-1860, YQAT-2520, YQAT-3180, YQAT-3840, YQAT-4500
● Sample available, aluminium ladder 15ft maximum height
● Download The Brochure

SEND INQUIRY

Description

Product Description


Highly durable and offering superior strength, this aluminium ladder is double sided ladder height up to 4.4m. The aluminum twin step ladder has a duty rating of 150kg per side making the ladders ideal for one or two-person jobs. The step rungs are flange riveted to the solid channel stile.



Product Features


◆ A Frame Height Up To 4.4m

◆ The stable side profiles make for a sturdy ladder that feels safe when you climb it.

◆ A Type 2 Stabilizer Bars is included to give the ladder additional stability.

◆ The rungs provide optimum bi-directional anti-slip protection.

◆ 4 types for you to choose from


Product Specifications

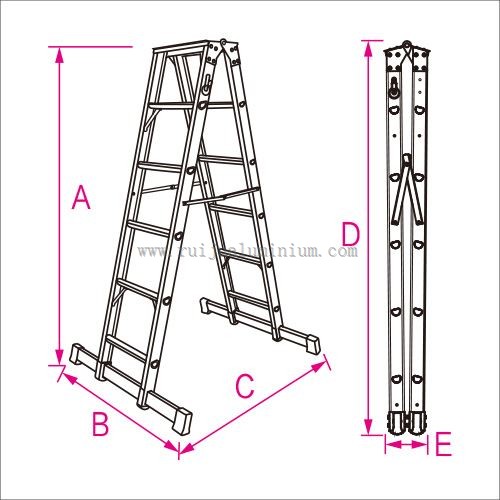

ModelYQAT-1860YQAT-2520YQAT-3180YQAT-3840YQAT-4500


Steps2*52*72*92*112*13
A Frame Height/A1855mm2495mm3130mm3765mm4410mm
Bottom Width/B1000mm1000mm1000mm1000mm1000mm
Ladder Depth/C1155mm1475mm1840mm2195mm2510mm
Ladder Length/D1935mm2585mm3250mm3910mm4570mm
Fold Thickness/E230mm230mm230mm230mm230mm
Weight14.1kg16.8kg19.6kg22.4kg25.2kg
20''(pcs)138104836959
40''(pcs)324243194162139


Product Details









Product Applications
