Warehouse Ladder

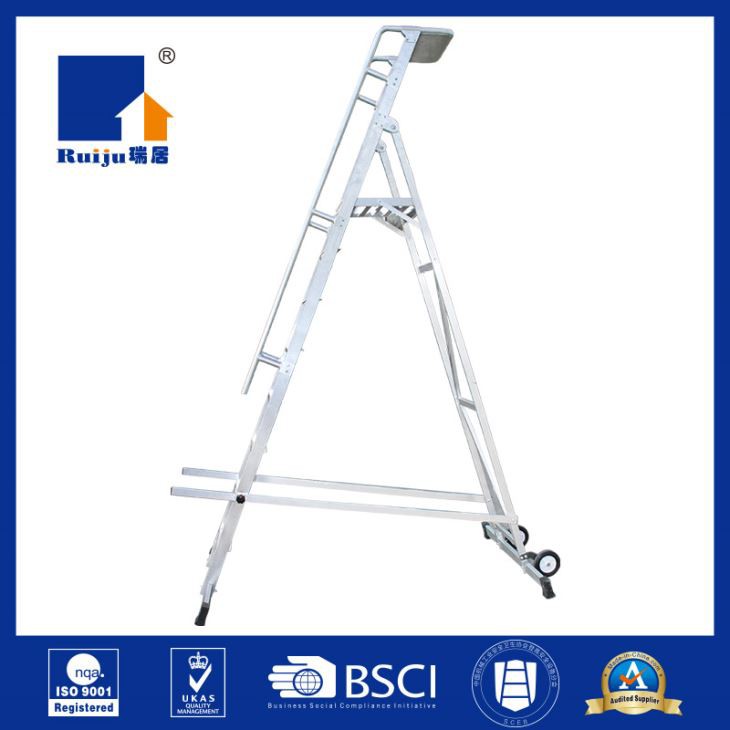

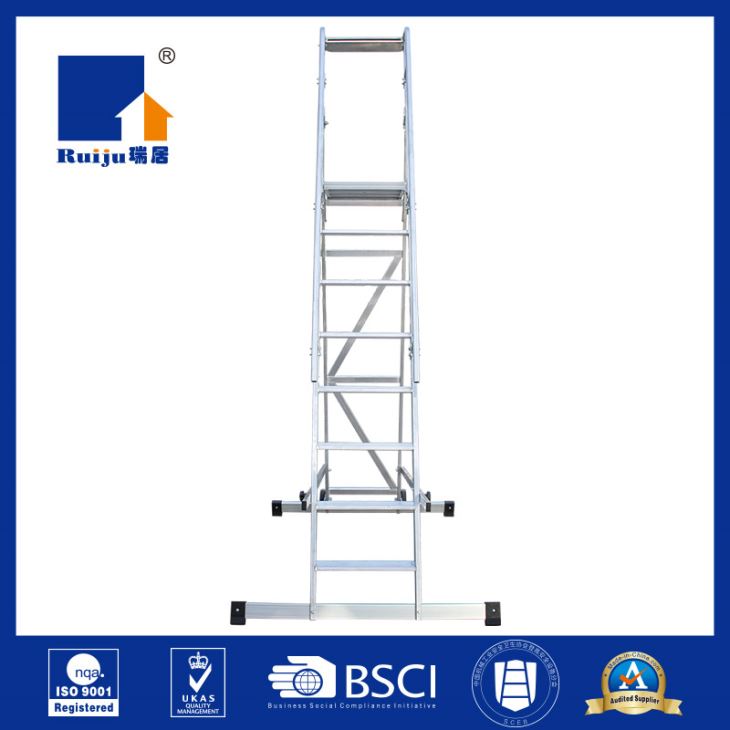

This warehouse ladder is foldable with 2 wheels at rear for easy movement. The foldable platform ladders are available in 7 different sizes up to 9ft standing height.
Model Selection: YQZDT-800, YQZDT-1100, YQZDT-1400, YQZDT-1700, YQZDT-1900
● Sample available, platform ladder 7 Models
● 150kg load rating in AS 1892.1
● MOQ 10pcs
● Warranty 1year
● OEM Service YES
● Shipping Air, Sea, Fast Express
● Download The Brochure

SEND INQUIRY

Description

Product Description

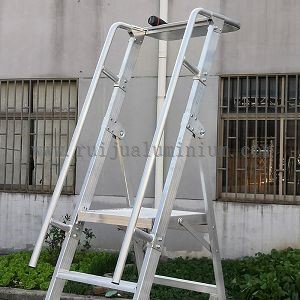

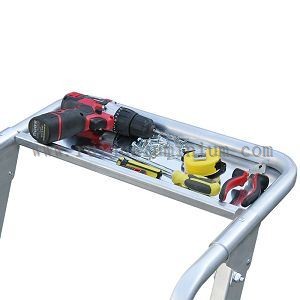

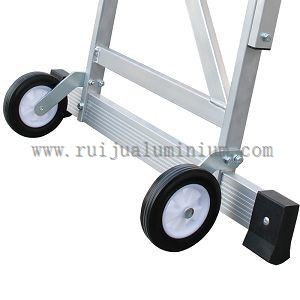

This Folding Aluminium warehouse ladder is foldable with 2 wheels at rear for easy movement. The foldable platform ladders are available in 7 different sizes up to 9ft standing height and working platform with integrated wheels and flat-fold mechanism for convenient transport. It's a safety Step Ladder With Handrail.Thanks to the large top aluminium platform and wide steps, this aluminium ladder is very comfortable to use.


Product Features


◆ Foldable Work Platform

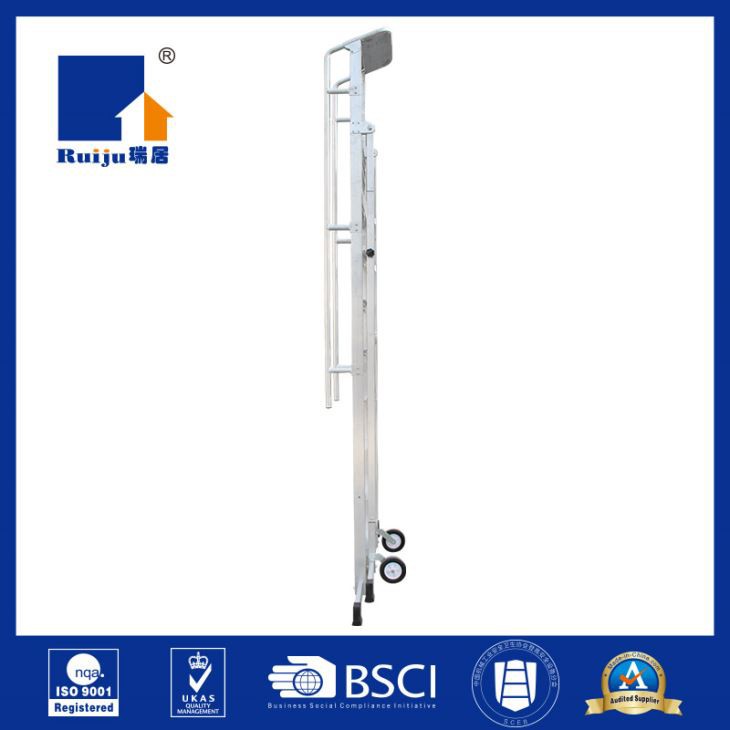

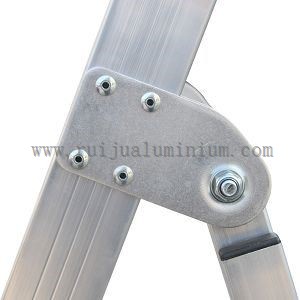

◆ Can be easily folded up and opened out, just right for a warehouse area.

◆ Available in seven sizes with different working heights up to 4.6m.

◆ The rails are made of aluminium and easy to assemble.

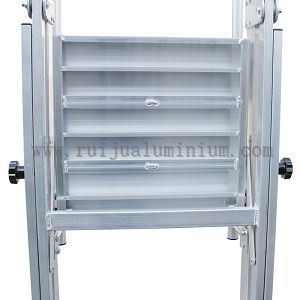

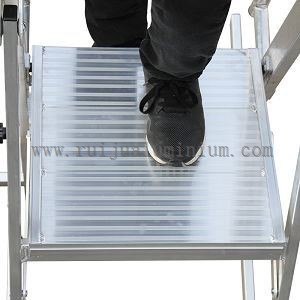

◆ 80mm deep footsteps for increased stability and safety when going up and down.

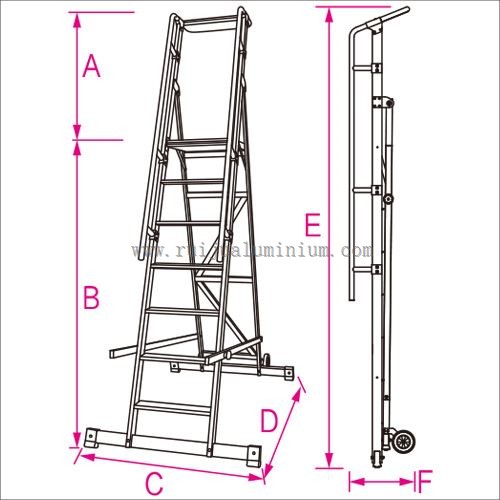

Product Specifications


ModelYQCKT-1040YQCKT-1300YQCKT-1560YQCKT-1820YQCKT-2080YQCKT-2340YQCKT-2600


Steps45678910
Handrail Height/A910mm910mm910mm910mm910mm910mm910mm
Platform Height/B1040mm1300mm1560mm1820mm2080mm2340mm2600mm
Bottom Width/C814mm814mm1014mm1014mm1214mm1214mm1214mm
Ladder Depth/D1099mm1278mm1606mm1786mm1965mm1997mm2176mm
Ladder Length/E2177.5mm2458mm2738.5mm3019mm3299.5mm3580mm3860.5mm
Fold Thickness/F430mm430mm430mm430mm430mm430mm430mm
Weight17.5kg19kg21kg23.2kg25kg26.8kg28.7kg
20''(pcs)153132116108979183
40''(pcs)358309272252227213194


Product Details

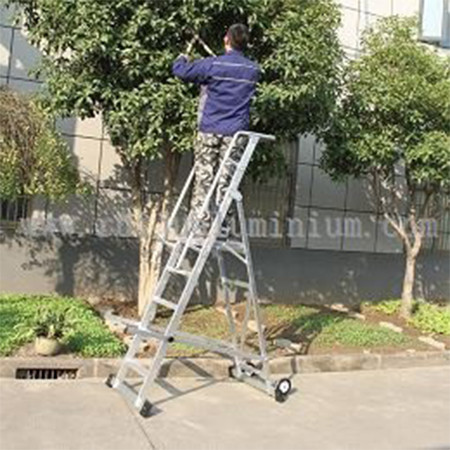

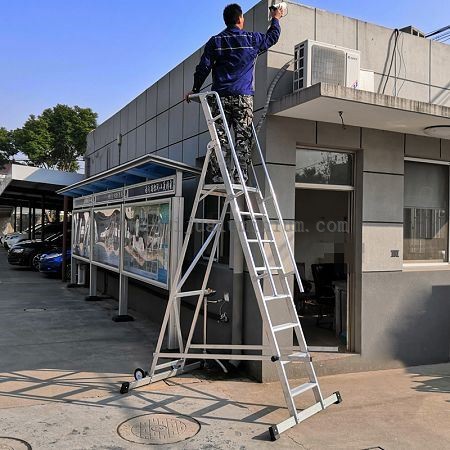

Product Applications
